12500lbs Electric Winch with IP68 Rating, Premium Offroad Winch for Truck Jeep Recovery

1 / 5

12500lbs Electric Winch with IP68 Rating, Premium Offroad Winch for Truck Jeep Recovery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.AUTO WINCH 12500LBS SYNTHETIC ROPE

Pull Direction4-Way

BrandZhme

EnvironmentMountain Road

CertificationCE

HS Code84253190

Production5000 PCS / Month

📦

Packaging & Delivery

Package Size63.00cm * 21.00cm * 39.00cm

Gross Weight31.000kg

★

Product Description

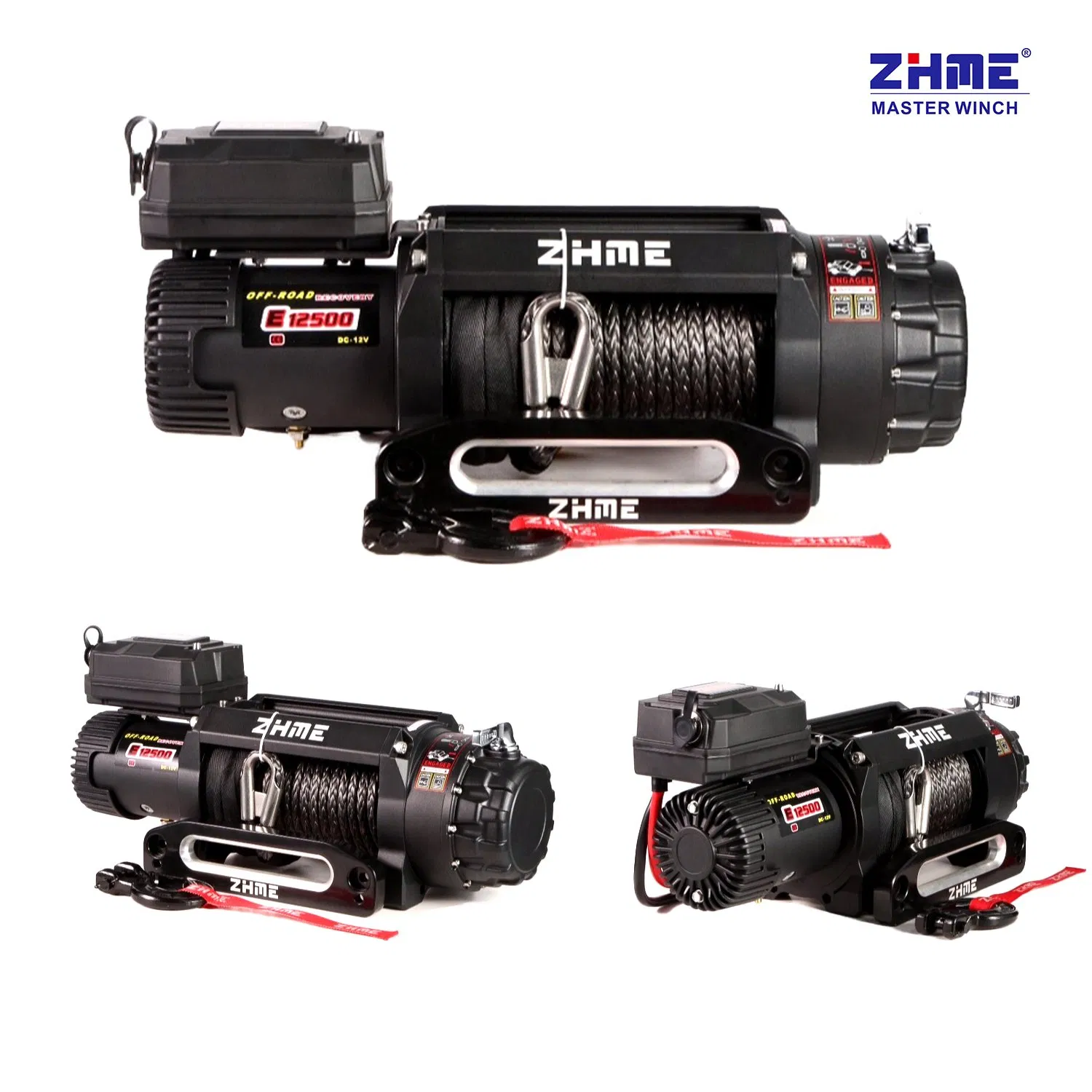

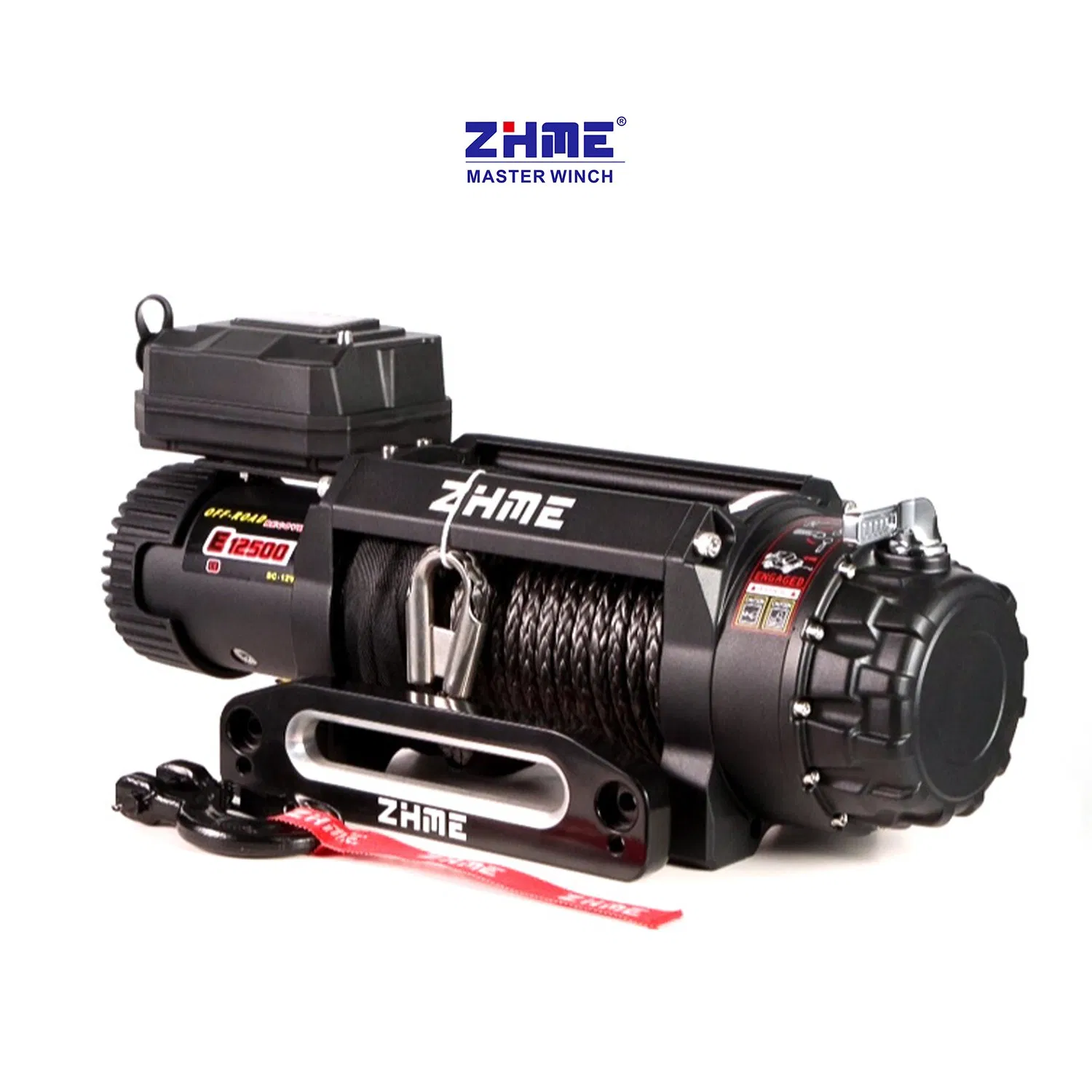

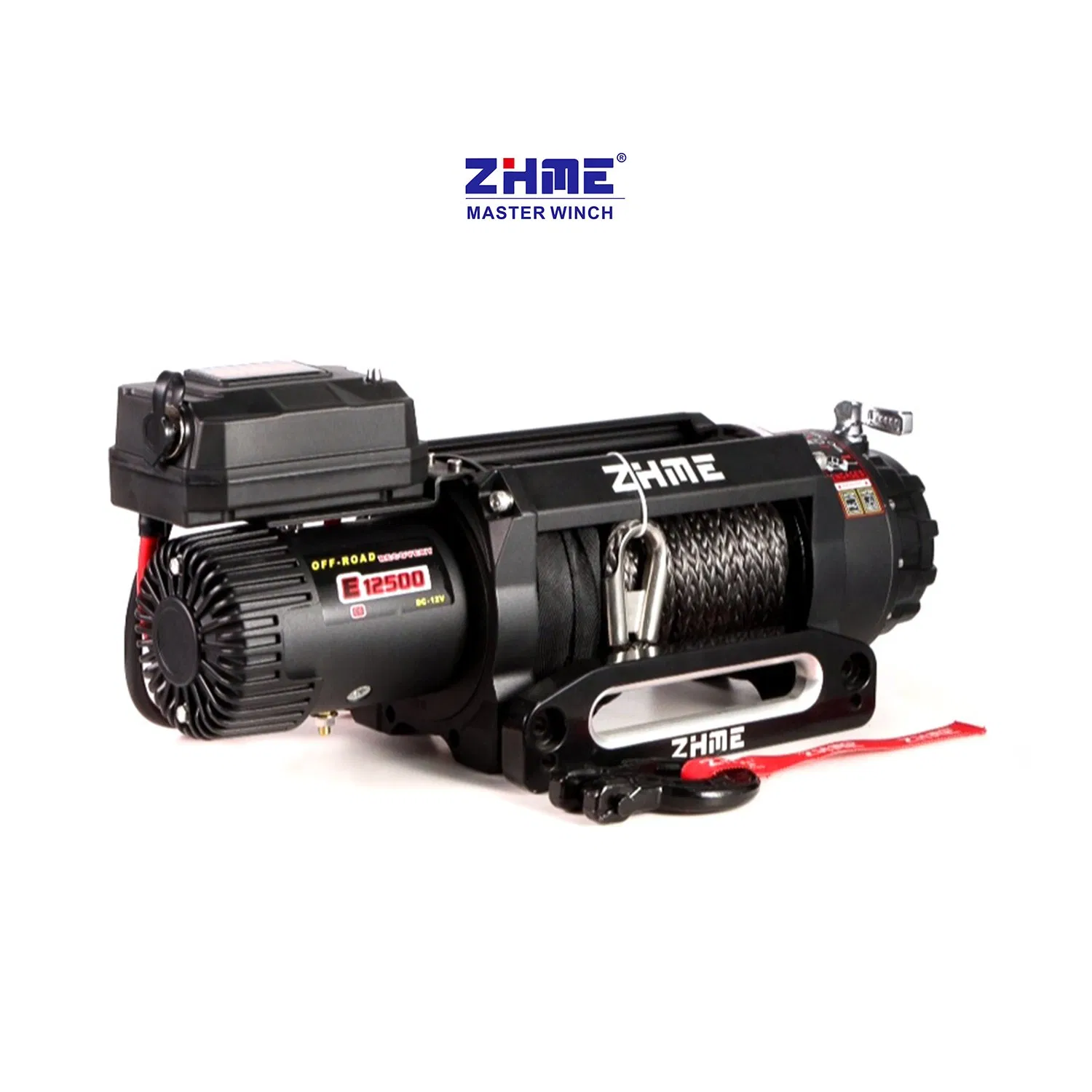

ZHME E Series Winches: Engineered for the Extreme

Designed for serious off-roaders, the ZHME X series represents a genuine leap forward in waterproof winch technology. Fully sealed from motor to gearbox, it's built to perform in the harshest terrains and weather conditions.

Key Features of E12500

• Fully Sealed Construction: Motor, solenoid, and gearbox are completely sealed for ultimate water and mud resistance.

• Series Wound Motor: Provides powerful, consistent performance for heavy-duty recovery tasks.

• Patented Braking System: Increases braking force with load—more control, more safety. Heat dissipation starts at 70°C, protecting synthetic ropes from damage.

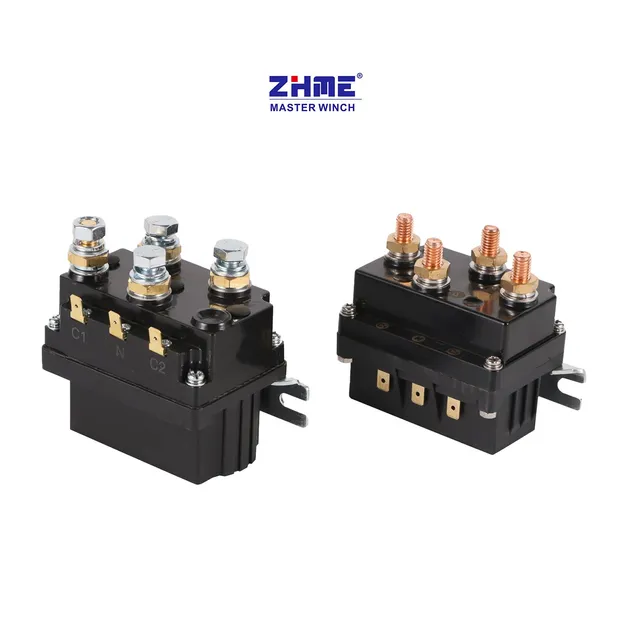

• Heavy-Duty Sealed Contactor: Industrial-grade design with silver-alloy contacts, rated up to 400A (12V) for higher duty cycles.

📋

Technical Specification

Rated line pull	12500lbs (5670kgs) single line
Motor	Series wound 6.0hp/4.4kw, 12V DC
Gear train	3 stage planetary
Gear ratio	262:1
Fairlead	4-way roller fairlead
Wire rope	ø9.5mm×25m
Drum size	64mm × 254mm
Dimensions	577mm × 170mm × 197mm

Frequently Asked Questions

Q: What is the waterproof rating of this winch? A: The E series winches feature a fully sealed construction for the motor, solenoid, and gearbox, making them ideal for mud and water-heavy off-road environments.

Q: Does this model come with a synthetic rope? A: Yes, this model is specifically equipped with a synthetic rope and includes a patented braking system designed to protect the rope from heat damage.

Q: What is the rated pull capacity? A: The rated line pull is 12,500 lbs (5,670 kgs) on a single line.

Q: What type of motor does it use? A: It uses a high-performance Series Wound motor (6.0hp/4.4kw for 12V) providing consistent power for heavy recovery.

Q: Is the braking system automatic? A: Yes, it features an automatic braking action in the drum for maximum safety and control.

Q: What is the mounting bolt pattern? A: The standard mounting pattern is 10" x 4.5" (254mm x 114.3mm).
