Cable/Wire Take up Unit or Pay off Unit

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Alpha

Warranty

12 Months

Function

Abrasion Resistance, Lubrication

Certification

CCC, PSE, UL, FDA, RoHS, ISO, CE

Mould Life

>1,000,000 Shots

Control

PLC

Motor

DC Motor

Cable Diameter

<60mm

Product Name

Cable/Wire Take up Unit or Pay off Unit

Parts Brand

Siemens

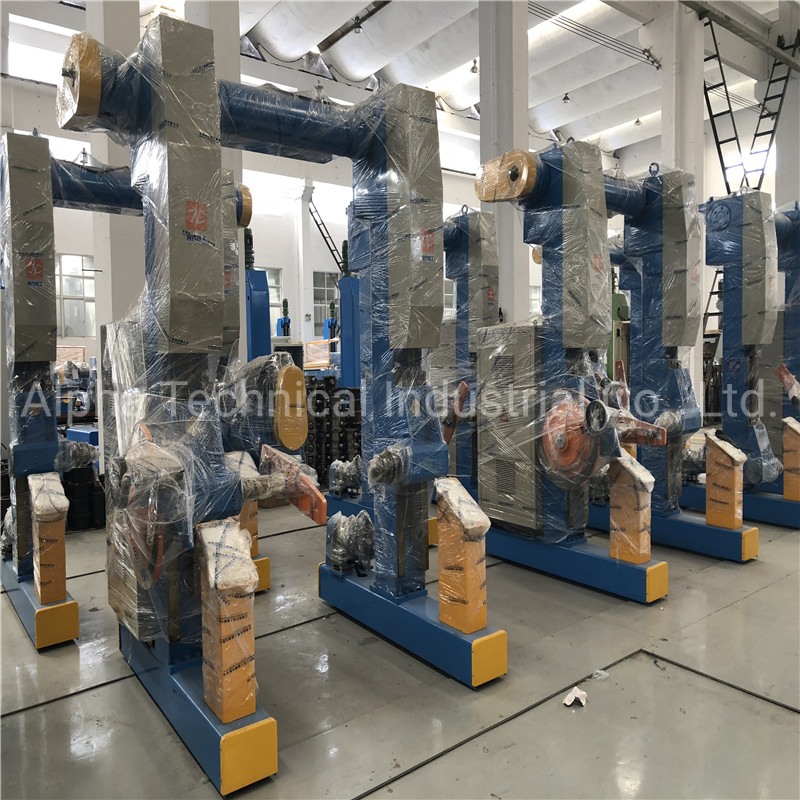

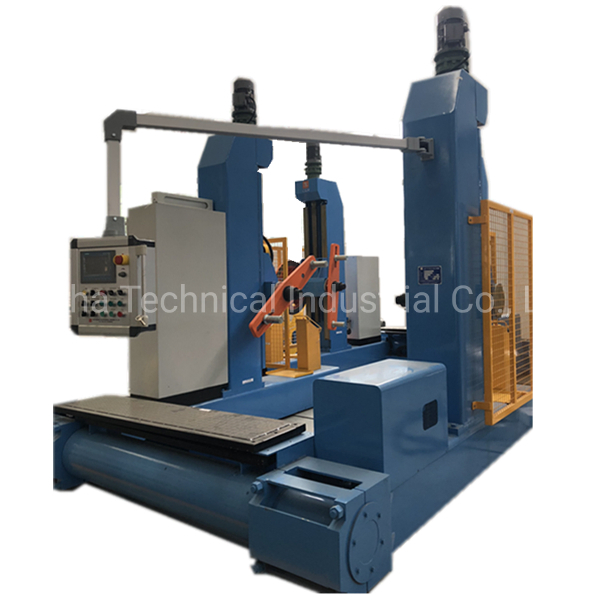

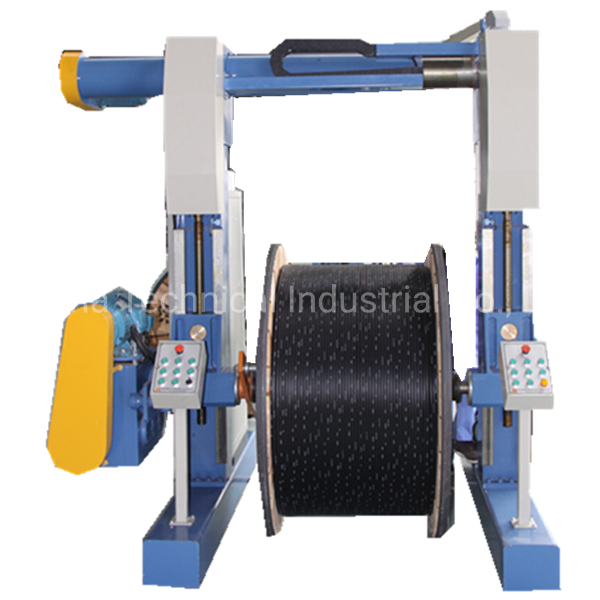

Cable/Wire Take up Unit or Pay off Unit

🚀 Application

The take-up and pay-off machine is mainly used for winding various signal cables and optical cables.

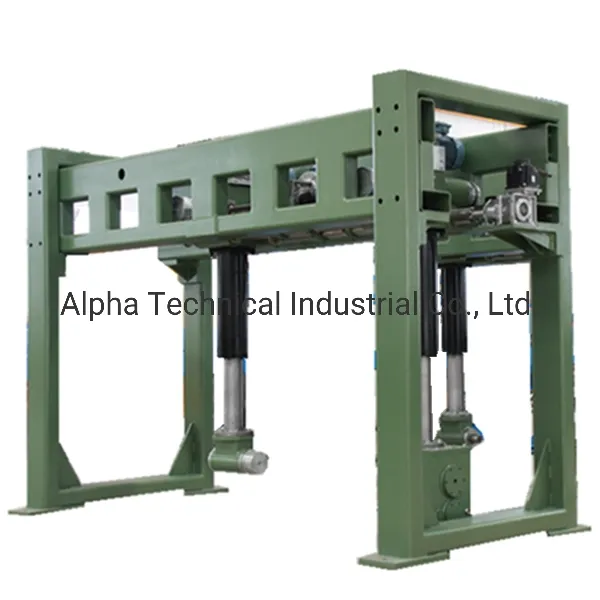

🛠️ Equipment Structure

The machine frame adopts high-quality rectangular steel tube and steel plate bending welded together. Beam connected by structure, ensuring good rigidity and high strength.
Adopt the way of walking beam; the whole cable tray for wiring, implementation of pay-off and take-up.
The equipment adopts AC variable frequency motor speed cable for high precision and uniform wiring.
PLC programmable controller can be integrated with all kinds of host.
Take-up main motor adopts DC motor or frequency conversion (Siemens or Danfoss products).

📊 Main Technical Parameters

Model	630/1250	800/1600	1000/2000	1250/2500
Applicable wire-coil spec	PN630-PN1250	PN800-PN1600	PN1000-PN2000	PN1250-PN2500
Outer diameter (mm)	≤25	≤40	≤50	≤60
Wire-coil diameter (mm)	630-1250	800-1600	1000-2000	1250-2500
Wire-coil width (mm)	475-950	600-1180	750-1500	950-1900
Take-up speed (mm/min)	≤100	≤100	≤80	≤60
Loading capacity (T)	2	3	4.5	6

📦 Machine Package & Components

Motor: Siemens
Converter: Yaskawa
Bearing: NSK (Japan)
Electrical: Siemens/Omron
PLC: Siemens

🌟 Our Service

📋Pre-sales: Inquiry support, customized design, and factory visits.

🔧After-sales: Installation training, operation tutorials, and overseas engineering service available.

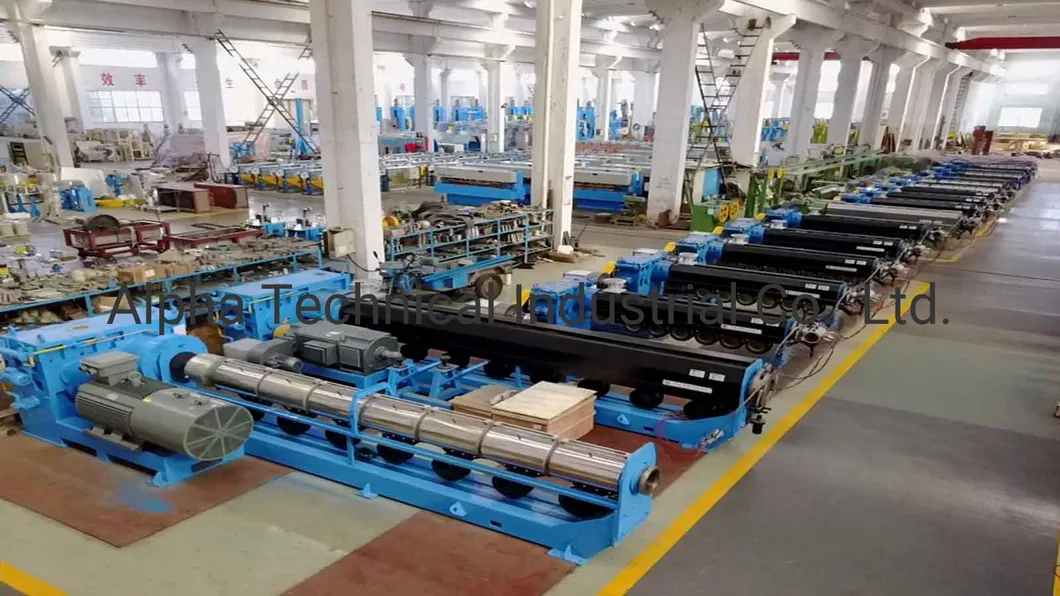

🌎 Project & Factory Show

📎 Relevant Machinery

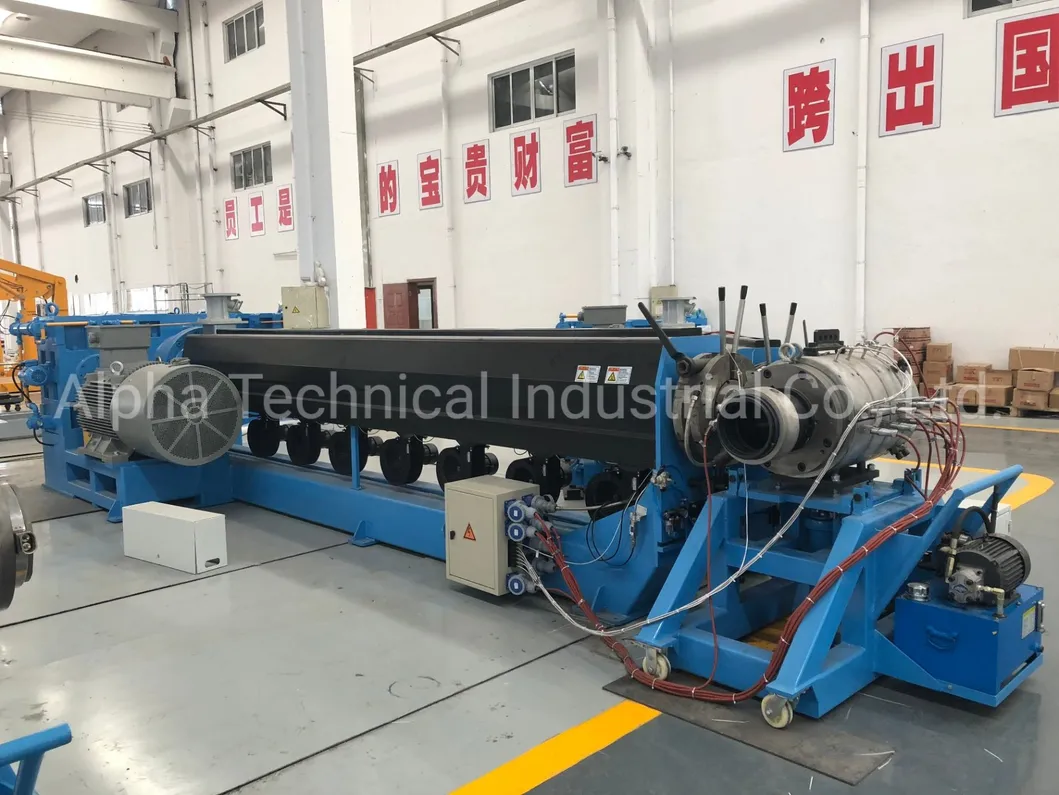

Cable Extrusion Machine: Suitable for soft PVC insulation wire core extrusion.

❓ Frequently Asked Questions

Q: Are you the manufacturer or trading company? A: We are the manufacturer with over ten years of experience in the field of OFC equipment.

Q: What is your company's main production? A: We specialize in optical fiber coloring, secondary coating, stranding, and sheathing line series.

Q: What support do you offer to customers? A: We provide employee training, technical personnel support, and comprehensive after-sales service.

Q: How long is the machine warranty? A: The warranty period is one year from the completion of mechanical debugging at the buyer's factory.

Q: Why should I choose your machine? A: More than 10 years of professional experience, high-security products, customized designs, and overseas engineer support.
