| Model No. | ZY8000D | Measuring Medium | Gas, Steam, Liquid |
| Accuracy Grade | 0.1%F.S, 0.25%F.S, 0.5%F.S | Pressure Range | 0-10MPa |
| IP Rating | IP67 | Certification | Sil, ISO9001, Ecm, Exdiict6GB, Exiaiict6ga |
| Output | 4-20 Ma, Mod Bus, PA | Power Supply | 24 V D.C |

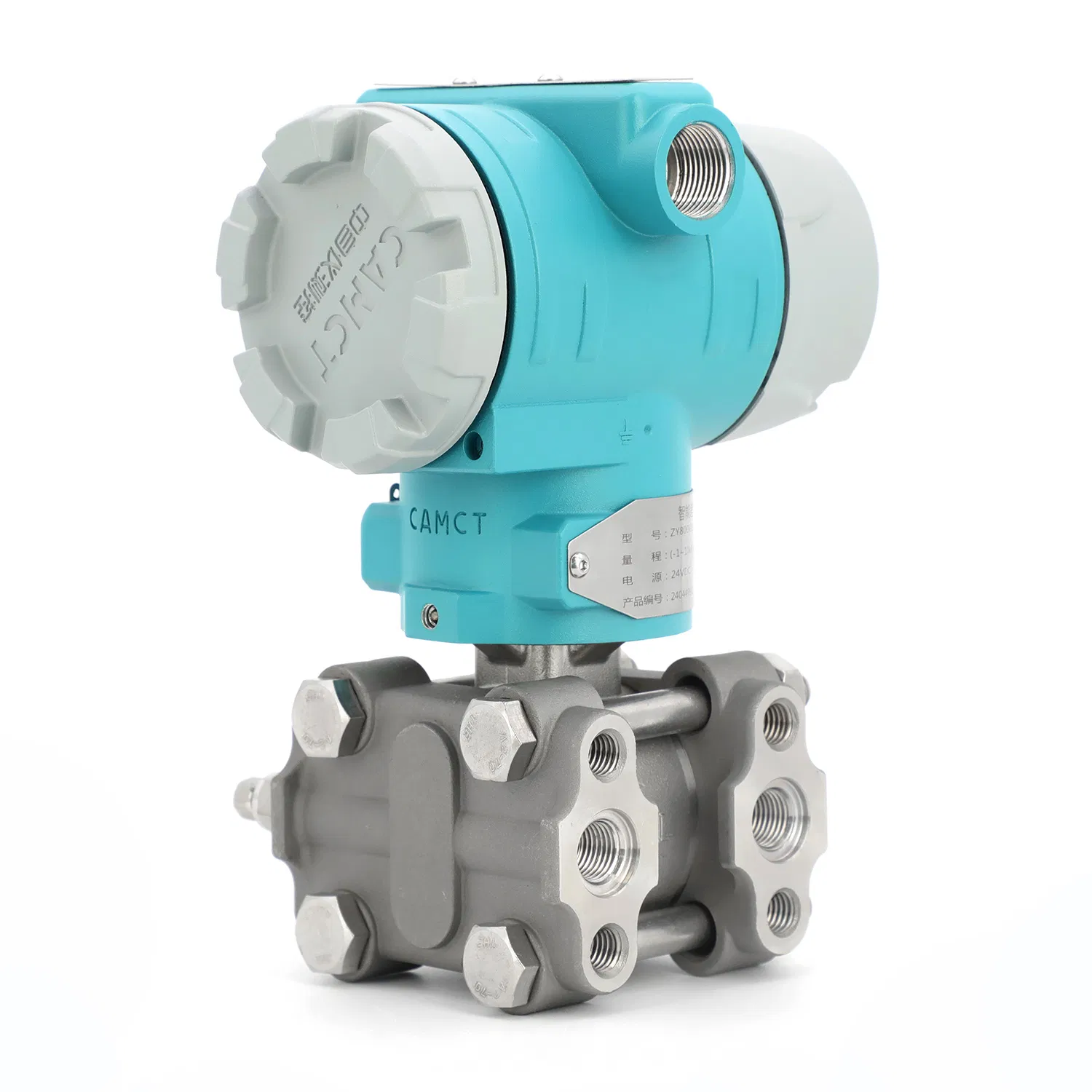

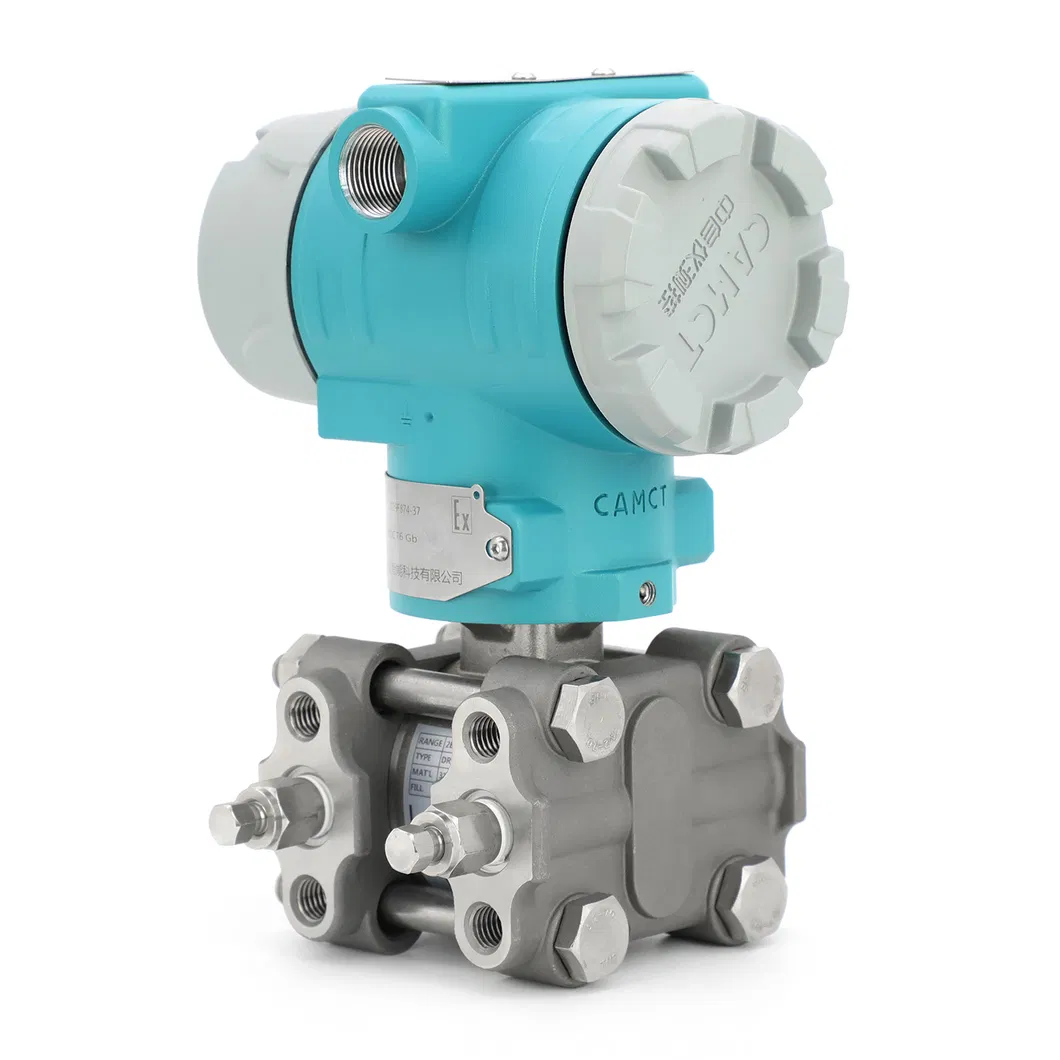

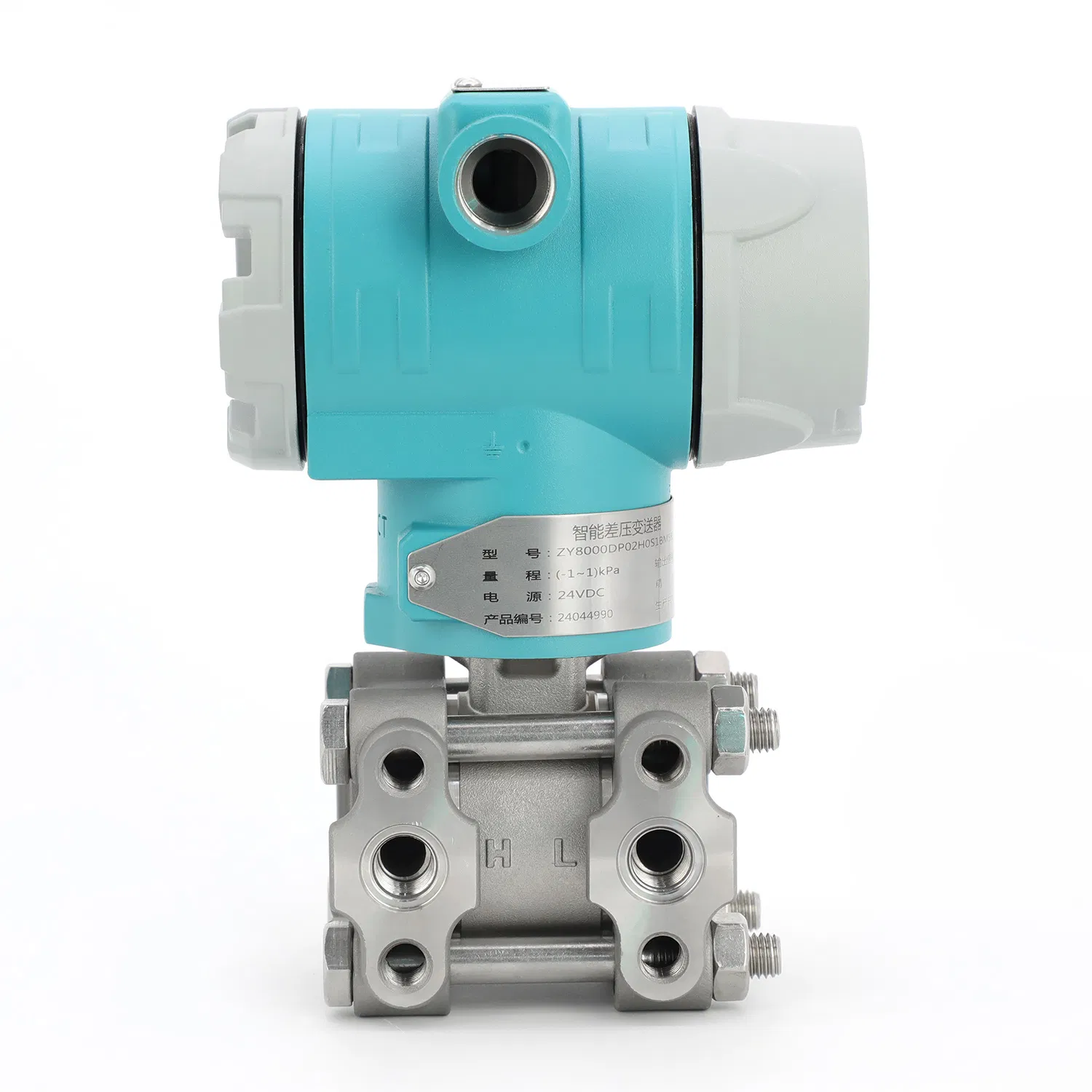

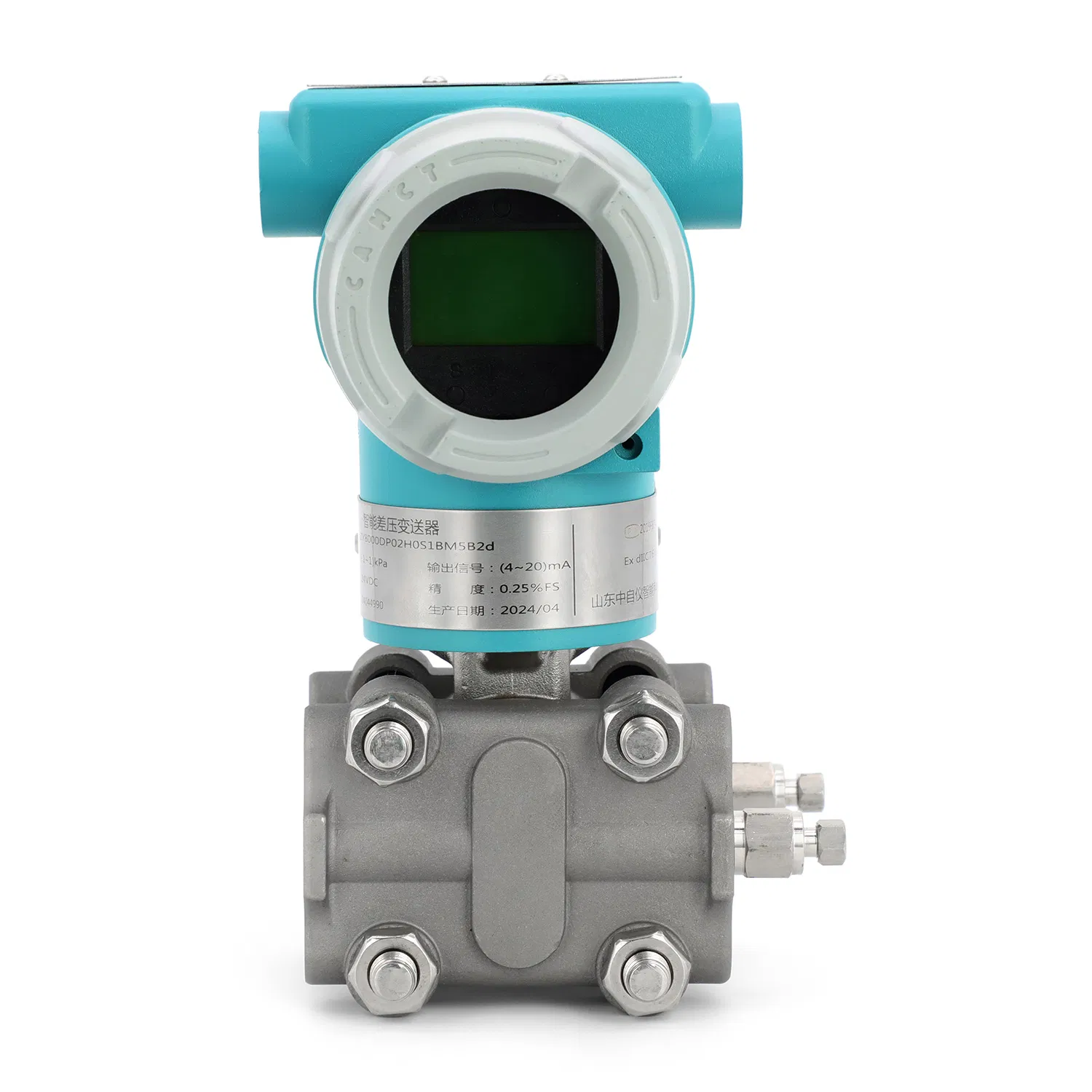

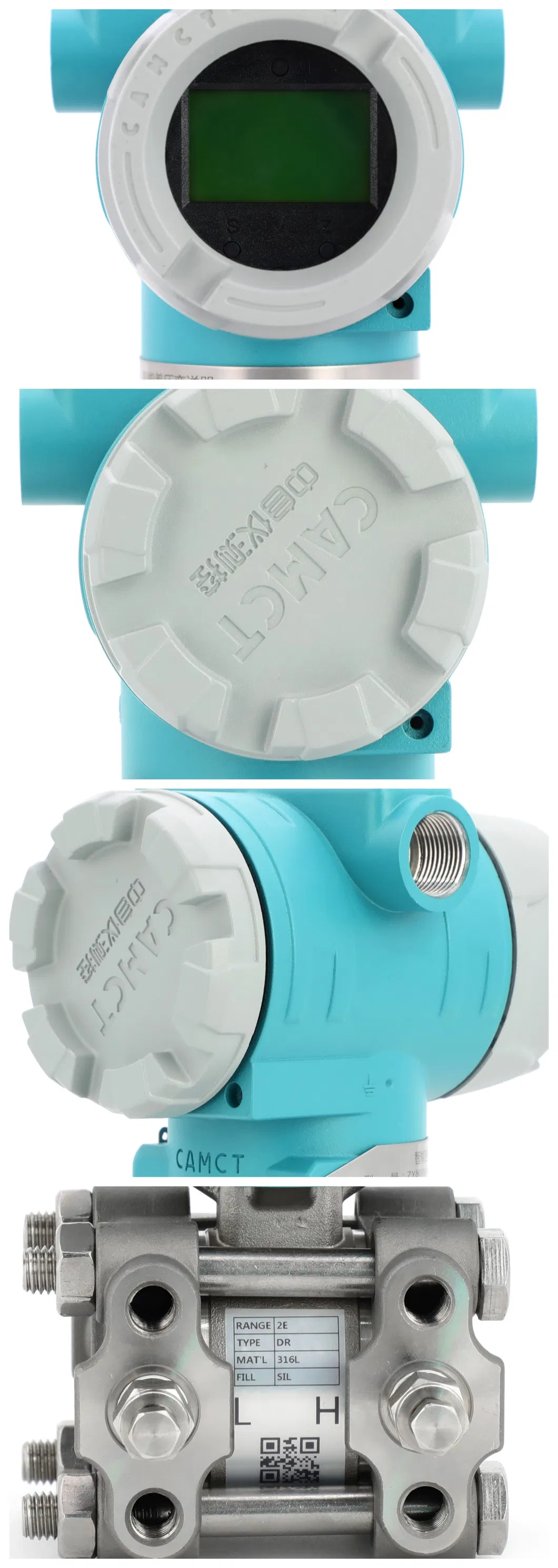

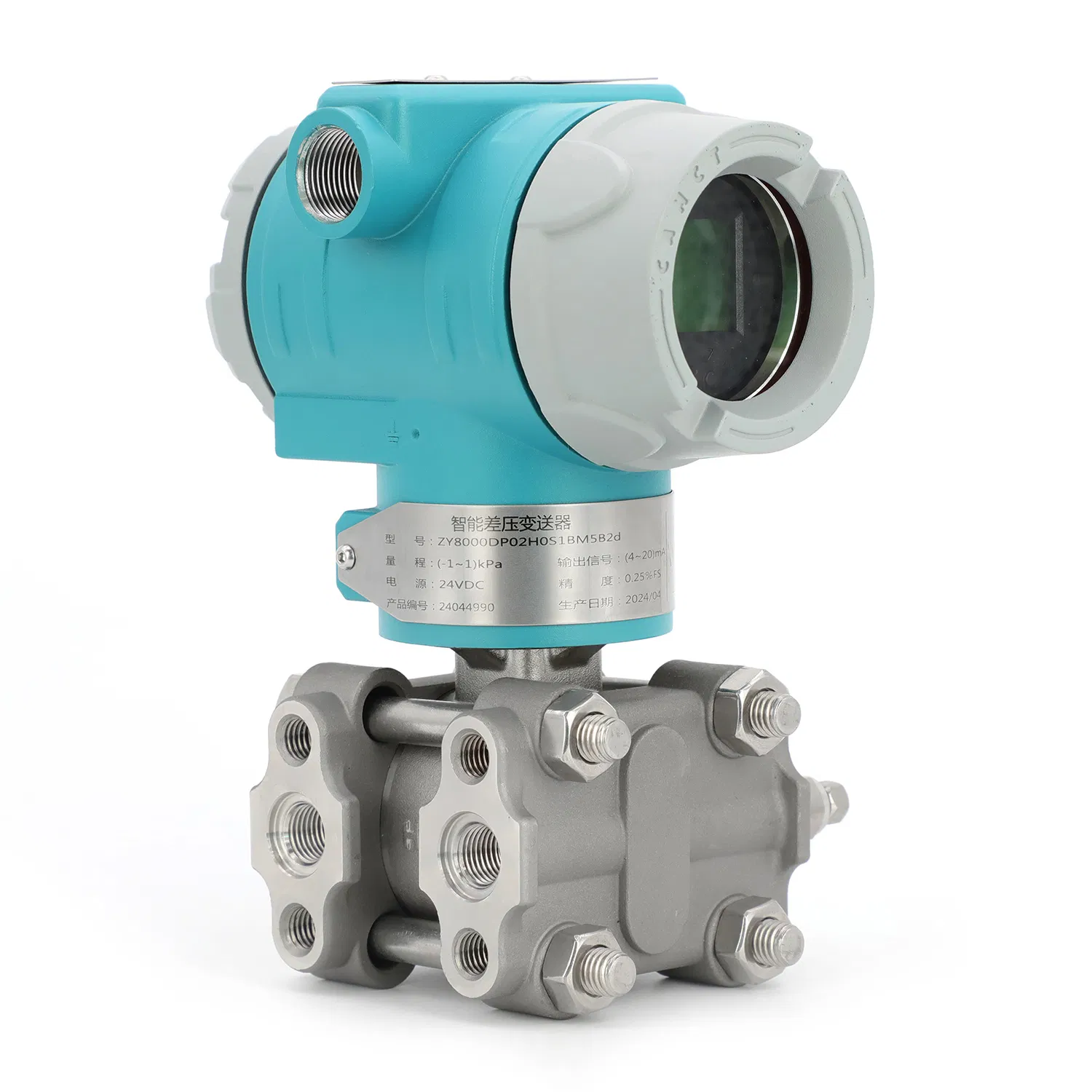

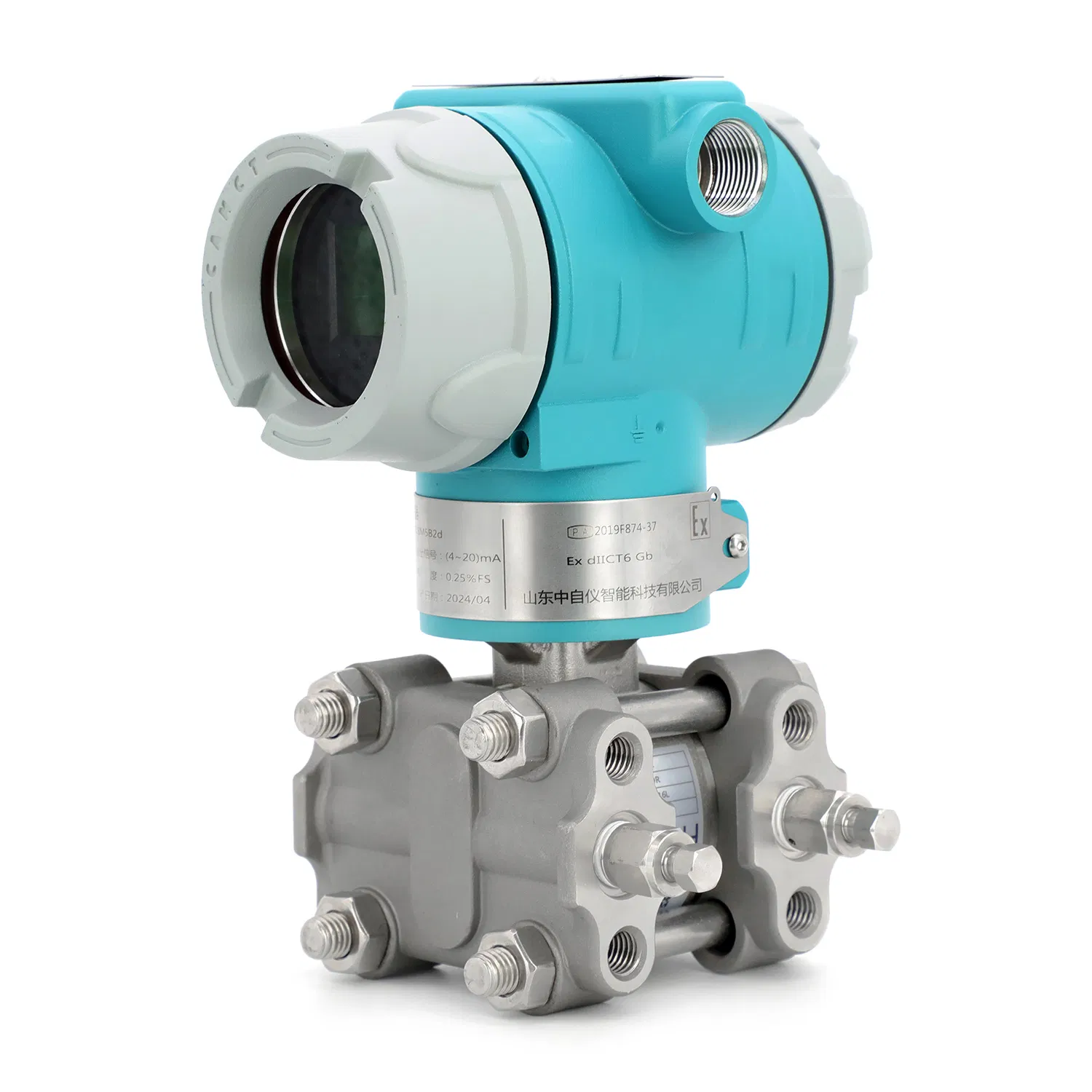

ZY8000D Intelligent D/P Transmitter
This high-precision intelligent differential pressure transmitter is designed for gas, liquid, and other mediums. It is widely utilized in petrochemical, metallurgy, environmental protection, and machinery equipment industries.
| Parameter | Specification |
|---|---|
| Accuracy Class | 0.1%FS, 0.25% FS, 0.5%FS (Highest 0.075%FS) |
| Response Time | ≤90ms |
| Long Term Stability | ≤0.03%FS/Year |
| Ambient Temperature | -30~70ºC |
| Diaphragm Material | 316L, HC, Tantalum, 316L Gold plating |
| Protection Grade | IP67 |

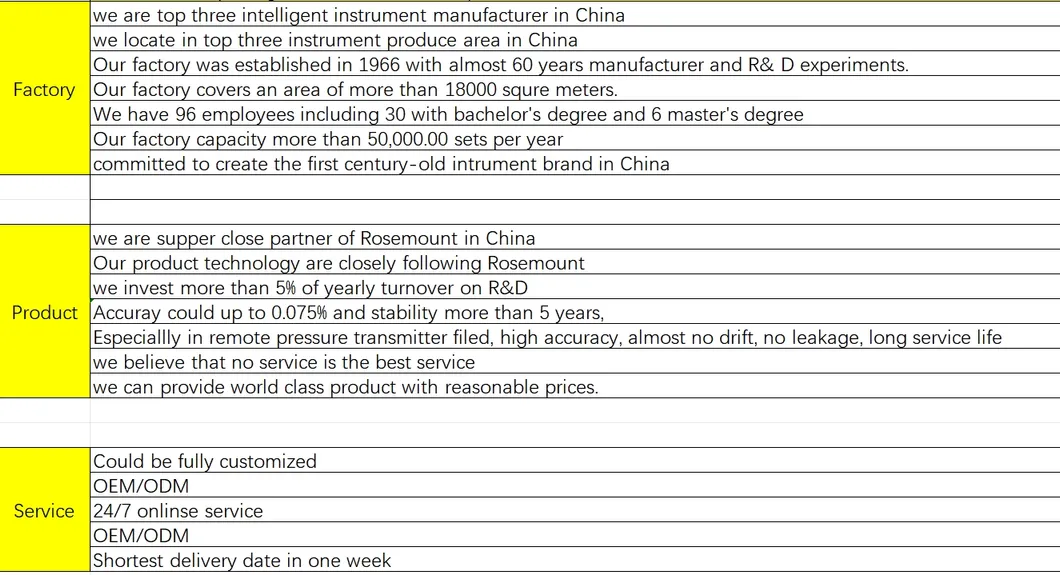

With almost 60 years of R&D and production experience, our products feature complete intelligent diagnosis, simulation, and monitoring functions. The ZY8000 series maintains 99.9% accuracy even after years of continuous operation, ensuring significant maintenance cost savings.
