Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit
Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit
Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit
Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit
Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit
1 / 5
Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit
Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit
Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit
Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit
Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit

Fuootech Pneumatic Support Enclosure Oil Purrifier Transformer Oil Filtration Unit

Customization: Available
Certification: ISO9001, CE
Application: Transformer Oil, Insulating Oil
Send Inquiry

Product Description

Basic Info
Model NO.
ZYD-W-6BY
Color
Blue, White, Green, Yellow, etc.
Weight
1400 Kgs
Flow Rate
10000 L/Hr
Working Vacuum
-0.08 ~-0.099 MPa
Filtration Accuracy
1 Micron
Vacuum Pumps
2 Stage (Rotary + Booster)
Application Oil
Transformer, Mutual Inductor Oil
Heating Power
120kw
Structure Material
Carbon Steel
Product Description

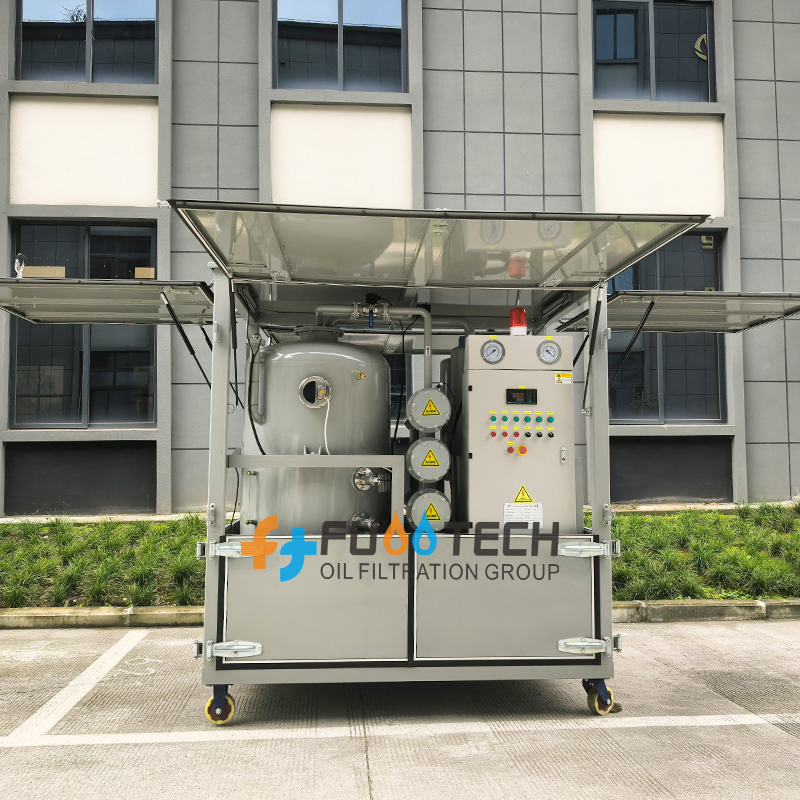

Pneumatic Support Enclosure Oil Purifier Transformer Oil Filtration Unit

This transformer oil purifier machine is made in fully enclosed type for weather proof, sand proof, wind proof, operation at outdoor usage.

It can remove trace water, free water, soluble water, dissolved gas, impurities and tiny particles effectively and rapidly from used or new transformer oil, so as to improve the flash point, acidity, interfacial tension and dielectric strength value of insulating oil.

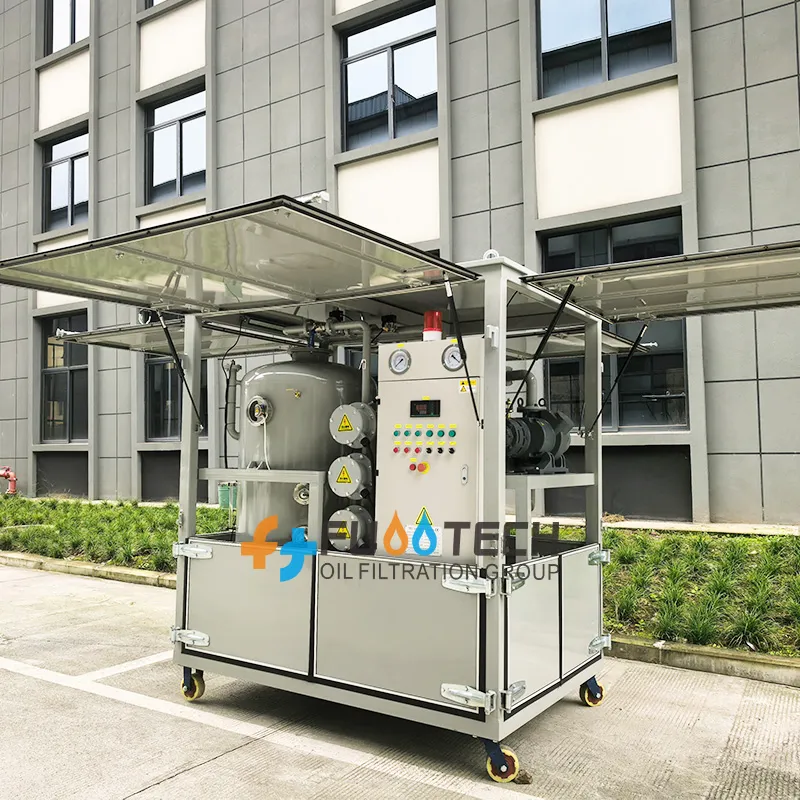

Detailed Photo 1

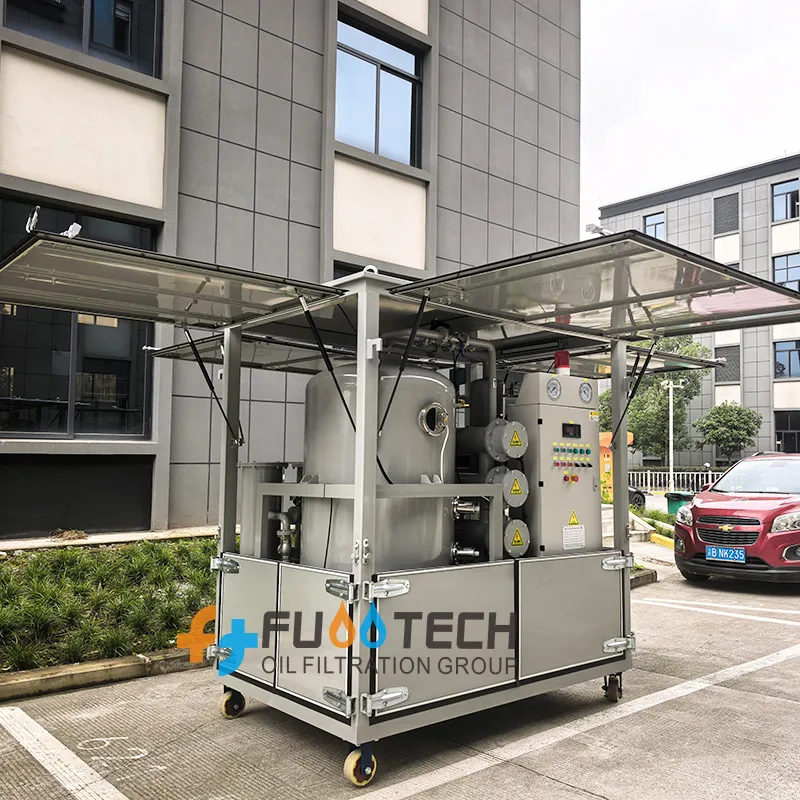

Detailed Photo 2

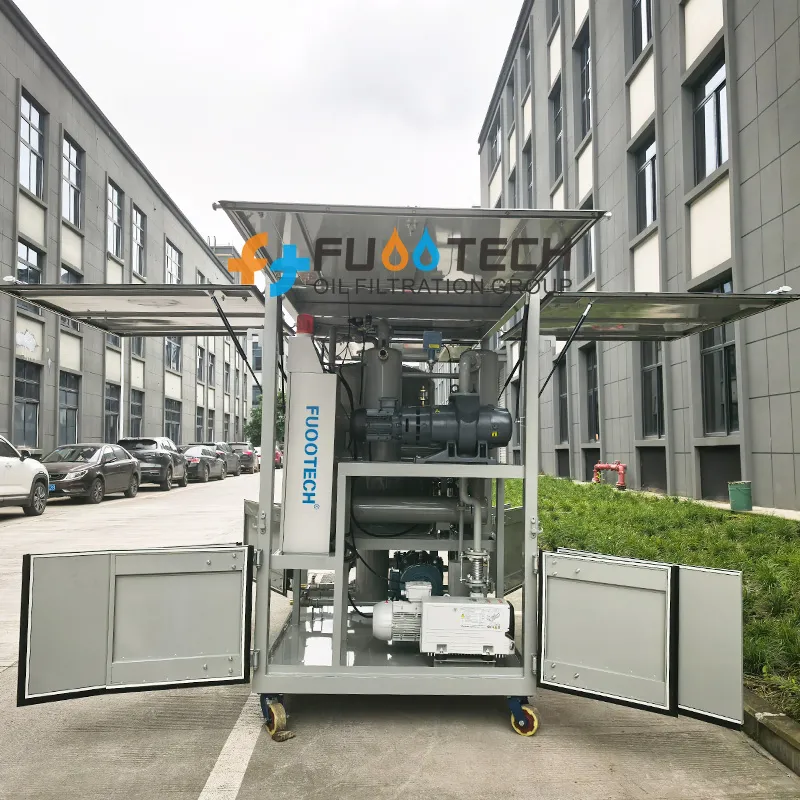

Detailed Photo 3
Key Features
  • Advanced Duplex 3D stereo-evaporation for efficient dehydration and degassing.
  • Double-stage vacuum system with high vacuum pressure and flow rate.
  • Multi-stage precision filtration system combining stainless steel and molecular adsorption.
  • Efficient electric heating system with uniform heating and low power consumption.
  • Double-infrared liquid level sensor and pressure protection system.
  • Applied to vacuum oiling and drying for equipment over 110KV.
  • Interlocked protection system connecting oil pump, heater, and sensors.
  • Mobile trailer and fully enclosed weather-proof designs available.

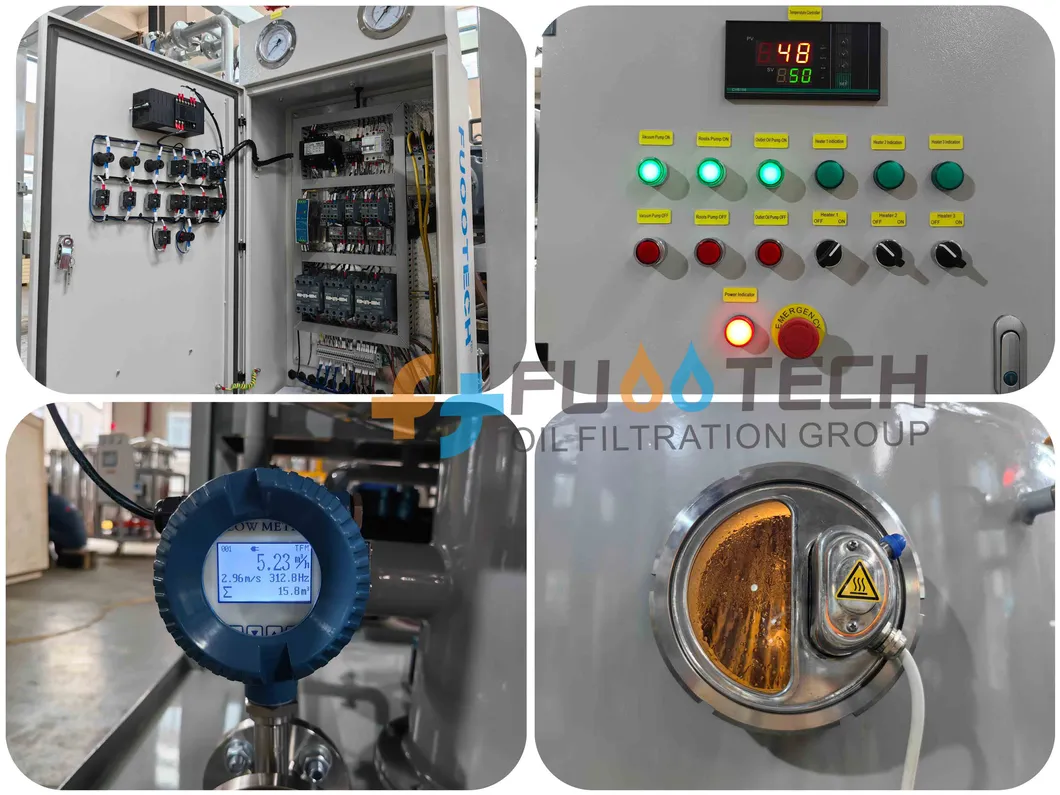

Technical Layout
Product Parameters
Model Unit ZYD-W-3BY ZYD-W-6BY ZYD-W-10BY ZYD-W-15BY
Flow Rate (L/H)300060001000015000
Vacuum (MPa)-0.08 ~ -0.099
Temp Range (ºC)0 ~ 100
Heating (KW)7290120150
Total Power (KW)78105136170
Weight (Kg)900120014001800
Certifications & Quality
Certifications
Technical Performance Images

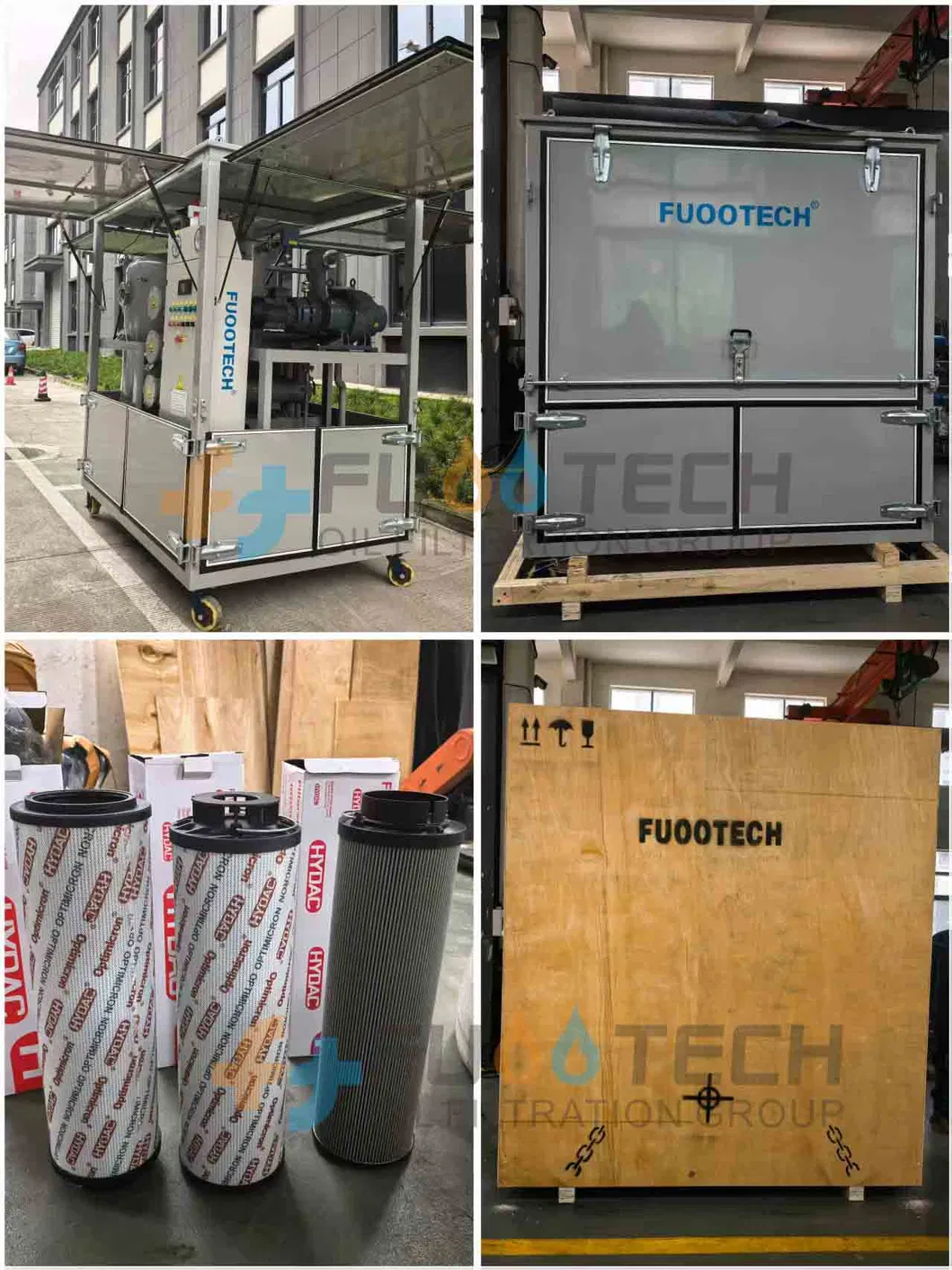

System Analysis
Profile View 1

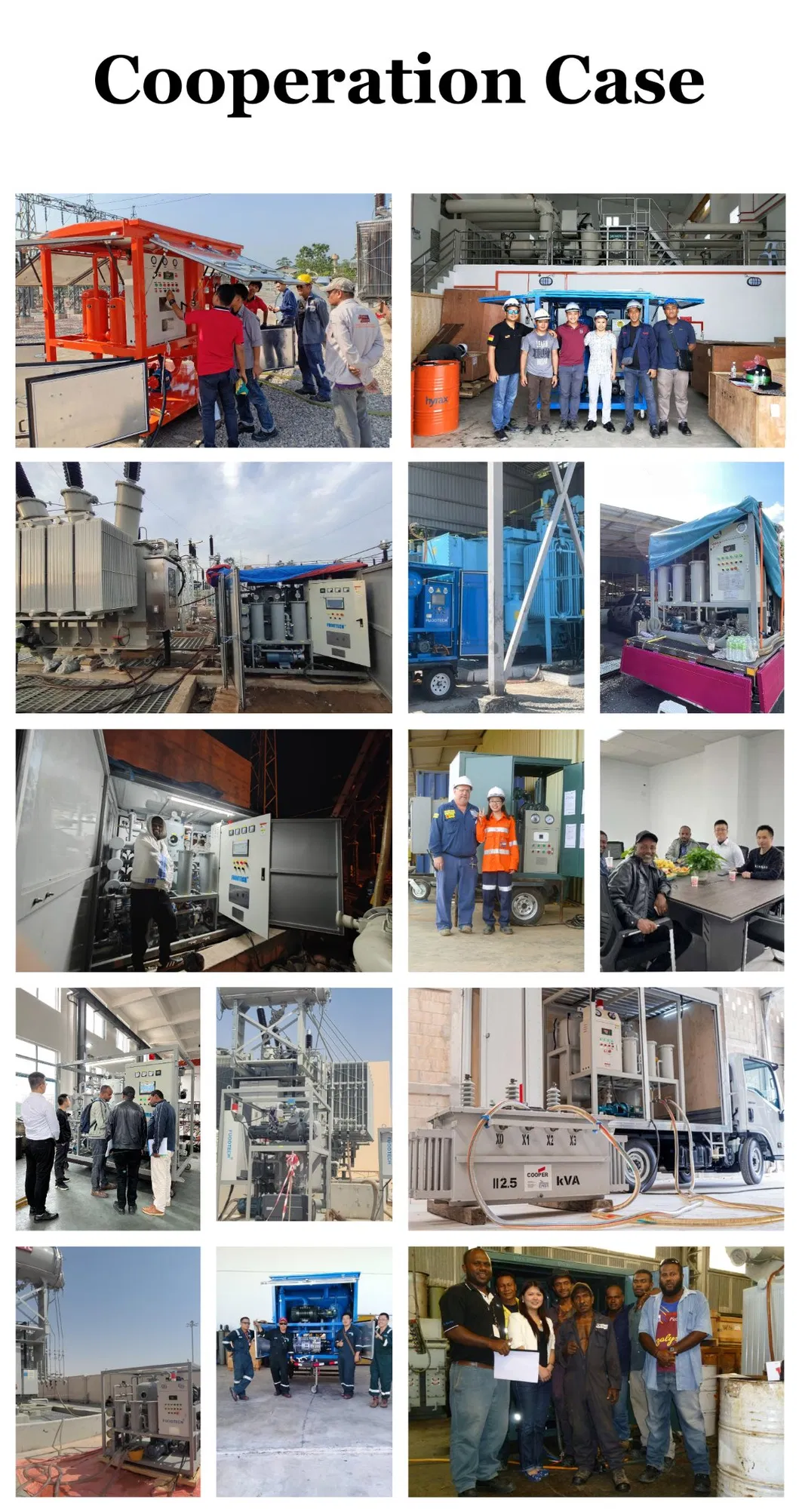

Profile View 2
Performance Chart
Frequently Asked Questions
What is the filtration accuracy of this unit?
The system provides a high filtration precision of ≤ 1 micron, effectively removing tiny particles and free carbon.
Is this machine suitable for outdoor use?
Yes, the fully enclosed pneumatic support enclosure is specifically designed to be weather-proof, sand-proof, and wind-proof for outdoor environments.
How does it improve the oil quality?
By utilizing double-stage vacuum and 3D evaporation, it increases the breakdown voltage to ≥70~80 KV and reduces moisture to ≤ 5 PPM.
Can the technical specifications be customized?
Yes, all specifications including flow rate, heating power, and dimensions can be customized according to specific client requirements.
What types of oil can be purified?
It is ideal for transformer oil (110KV and above), capacitor oil, mutual inductor oil, switch oil, and cable oil.
Does the machine include safety protections?
Absolutely. It features an interlocked protection system connecting the pump, heater, and level sensors to prevent blank heating or leakage.
