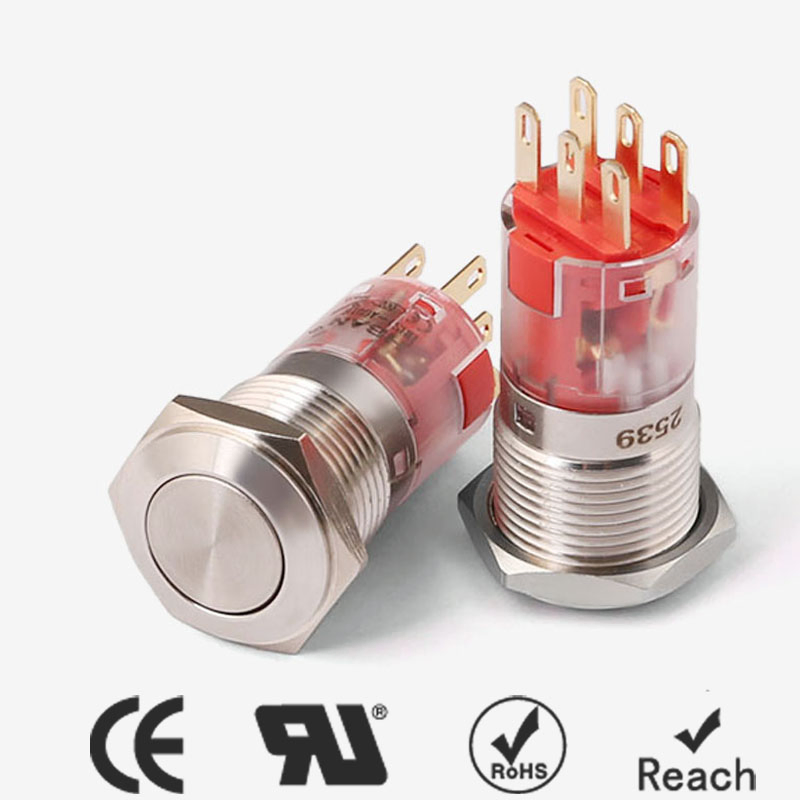

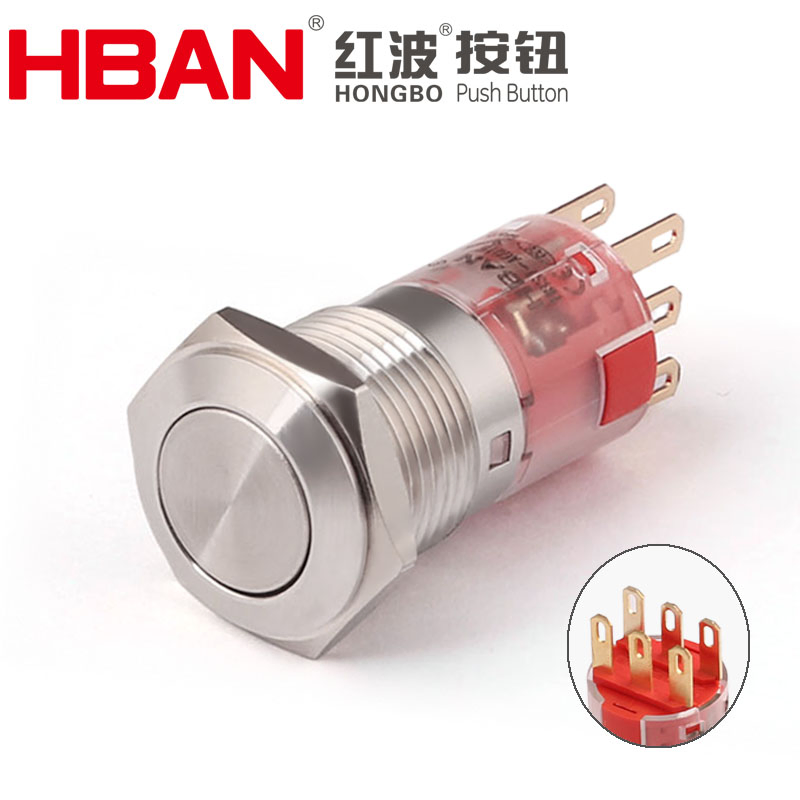

📊 Basic Info.
Model NO.:HBS1-AGQ16F-22/J/S
Protection Grade:IP67
Operation Type:Self-Recovery

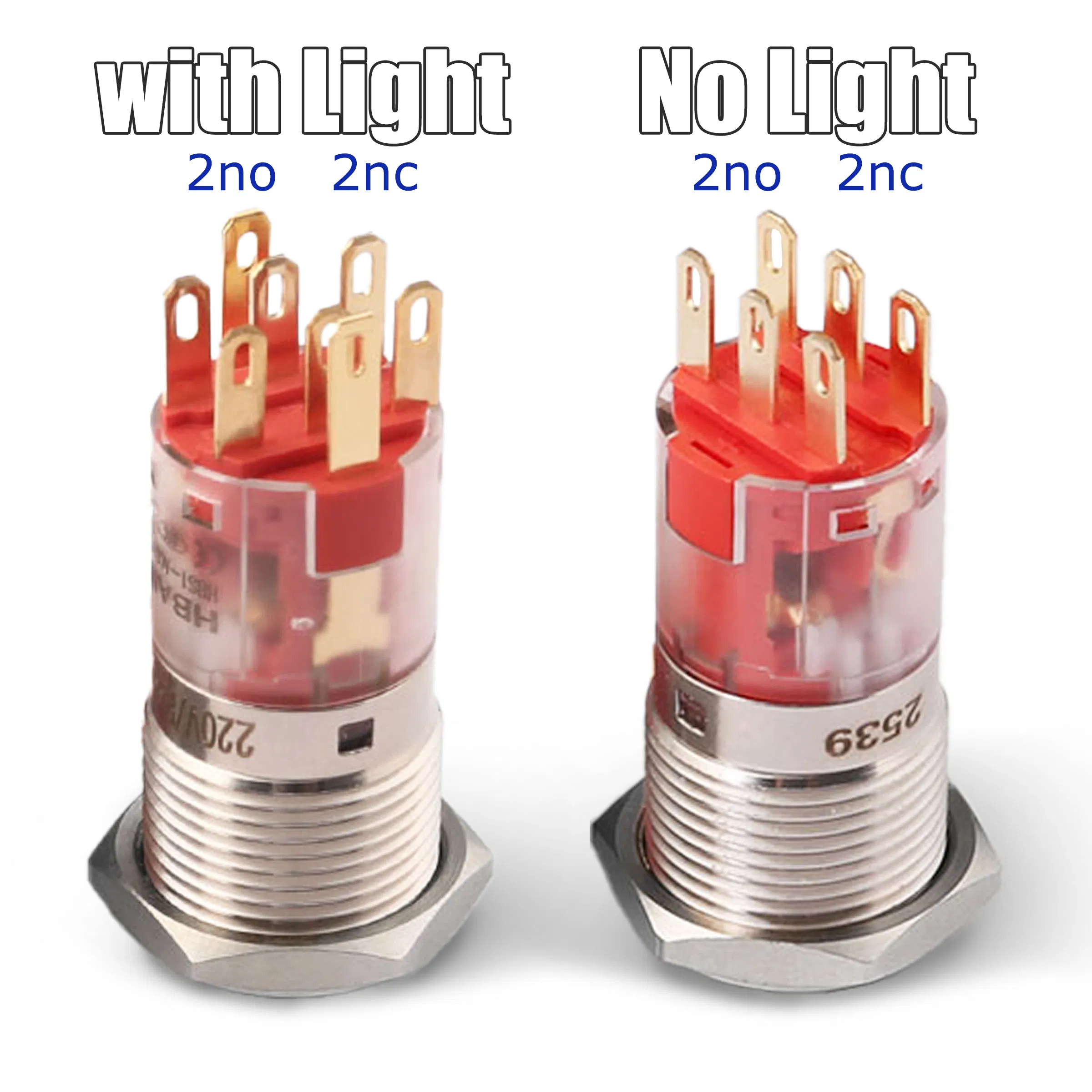

Contact:2no2nc
Certificate:CE, UL, RoHS, Reach
Head Shape:Flat Head
Shell Material:Stainless steel
Specification:16mm

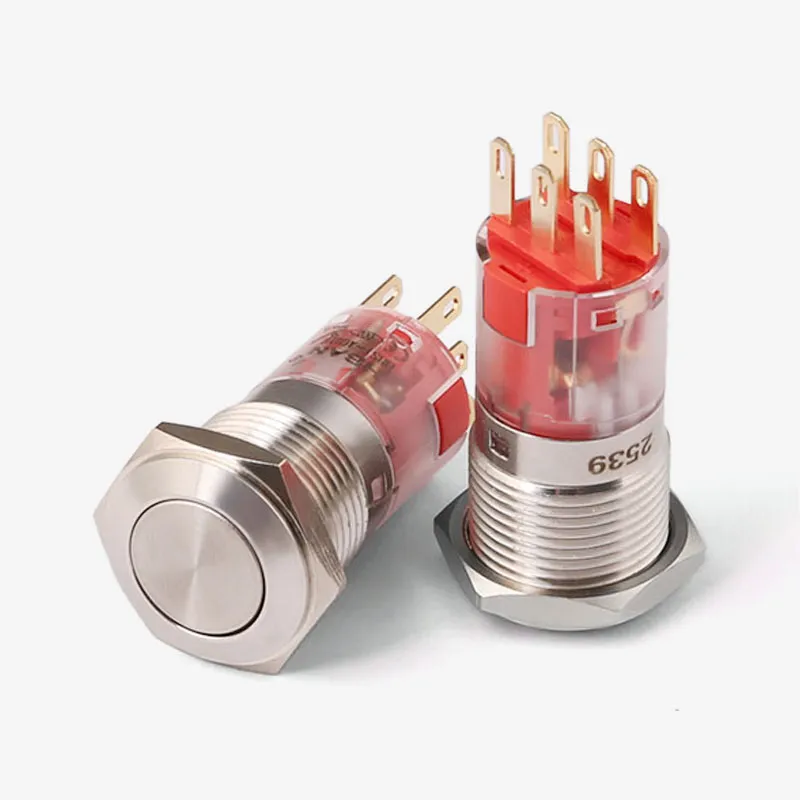

💎 Product Advantage Analysis
High strength material: 304 stainless steel with excellent corrosion resistance.
Resistance to mechanical impact: Metal shell withstands frequent physical collisions.
High protection level: IP67 dust-tight and waterproof.
Sealing design: Internally sealed with silicone rings.
Automatic rebound: Quick contact reset spring structure.

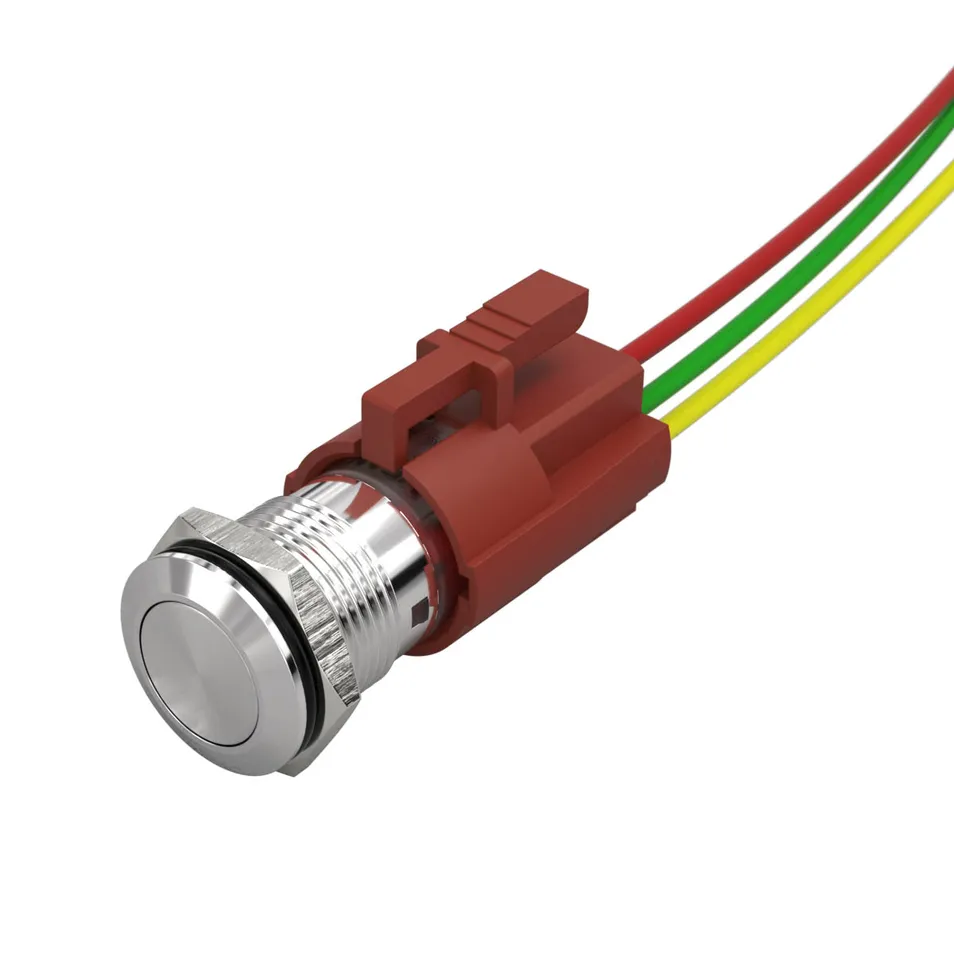

🔧 Structure Introduction
Quick connector: Wire length 14~15cm, RV 0.5² cable.

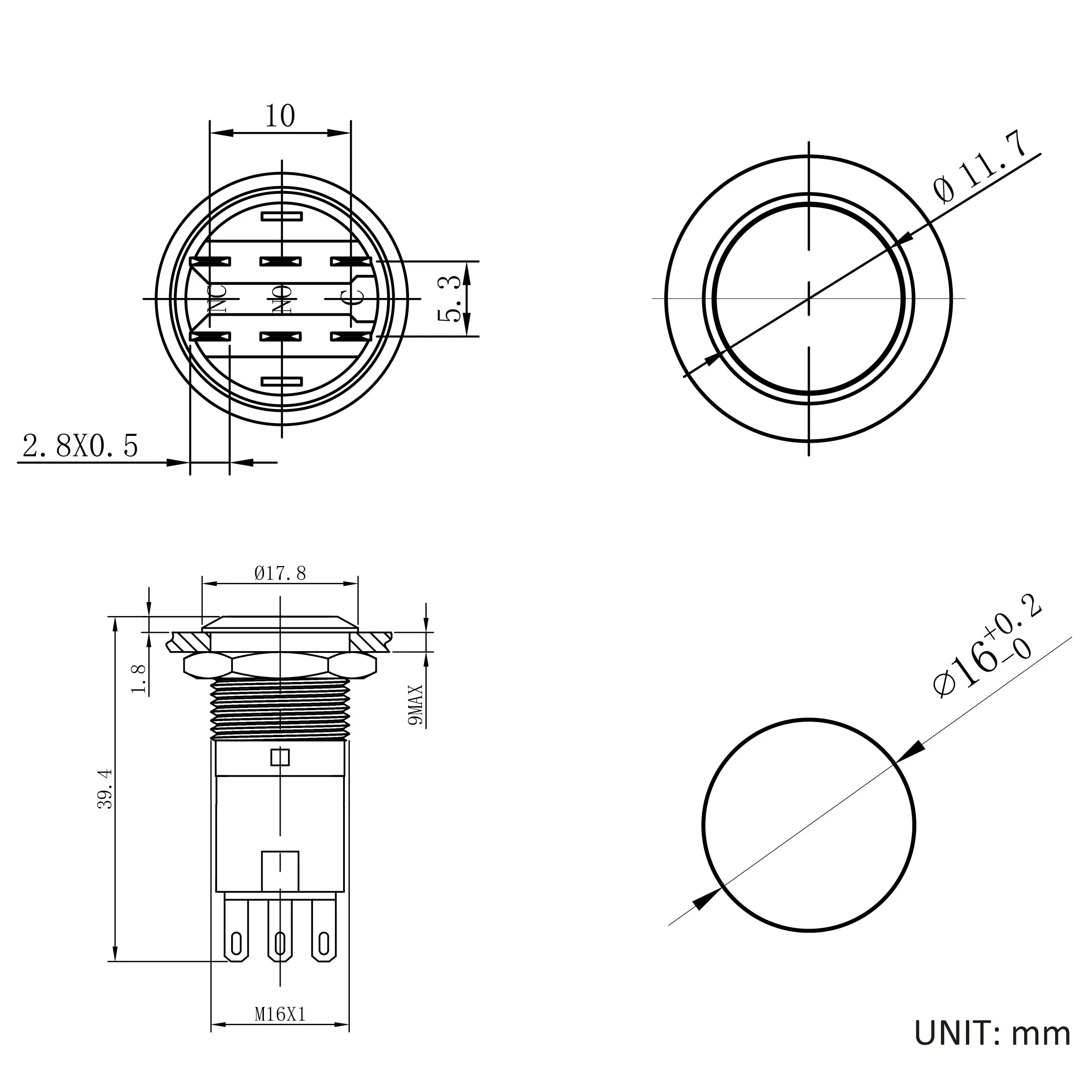

Mounting hole size: 16MM | Operating Stroke: 3mm

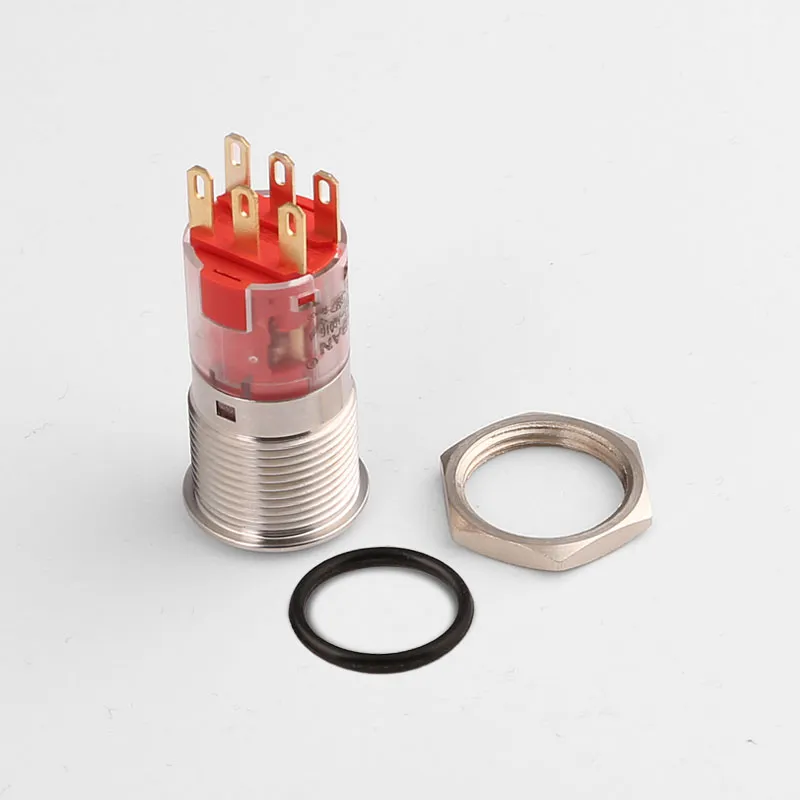

Product accessories: Matching O-ring + Nuts included.

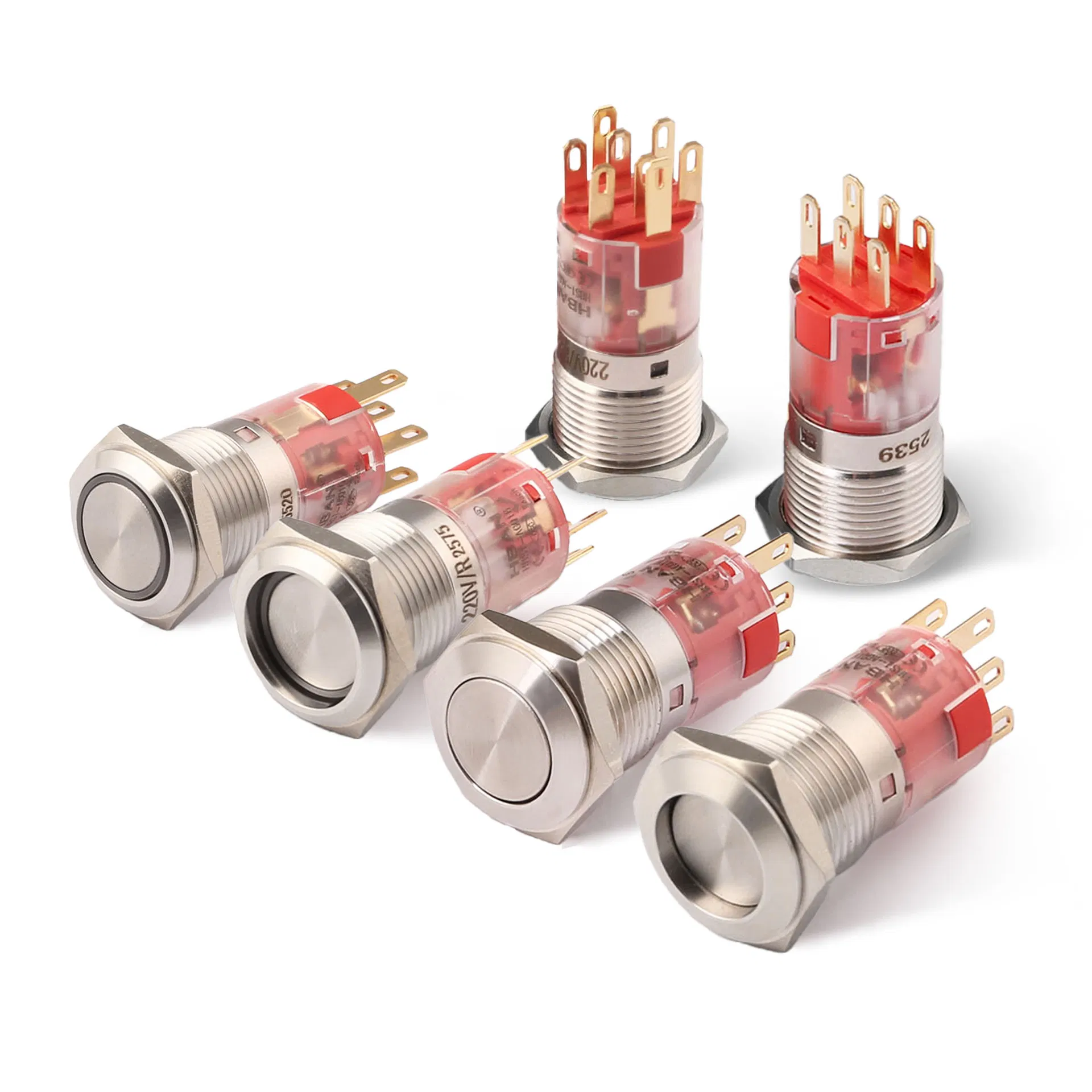

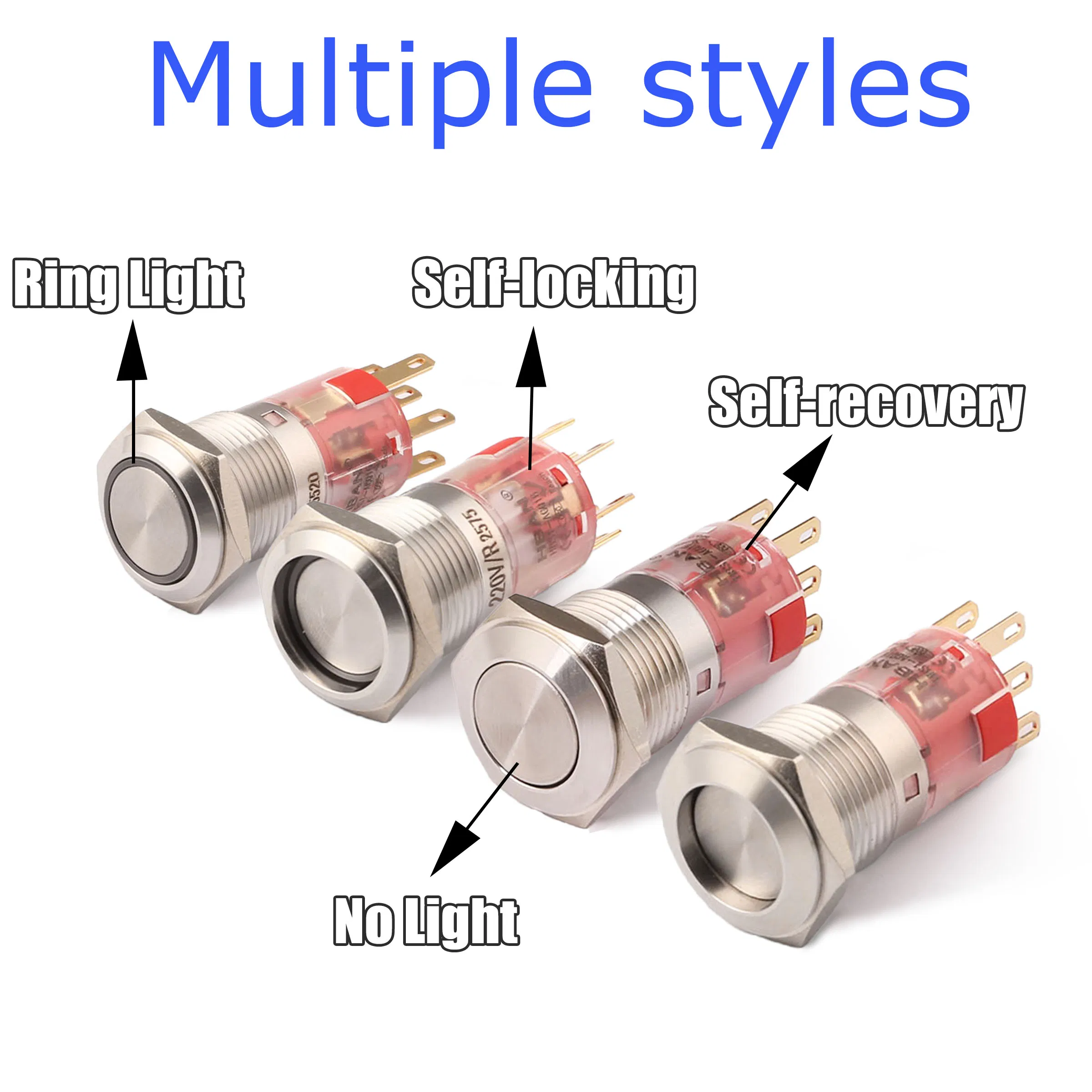

📝 Series Specifications
| Mounting Hole |
16: Ø16mm | 19: Ø19mm | 22: Ø22mm | 25: Ø25mm |
Sizes up to 40mm |
| Head Shape |
F: Flat head | C: Concave | B: Domed |
M: Mushroom |
| Contact Type |
11: 1NO1NC | 22: 2NO2NC |
High reliability |
| Lamp Type |
No letters: Without LED | D: Dot LED | E: Ring |
Custom Voltage |
| Shell Material |
S: Stainless steel | N: Nickel brass |
T: Aluminum |

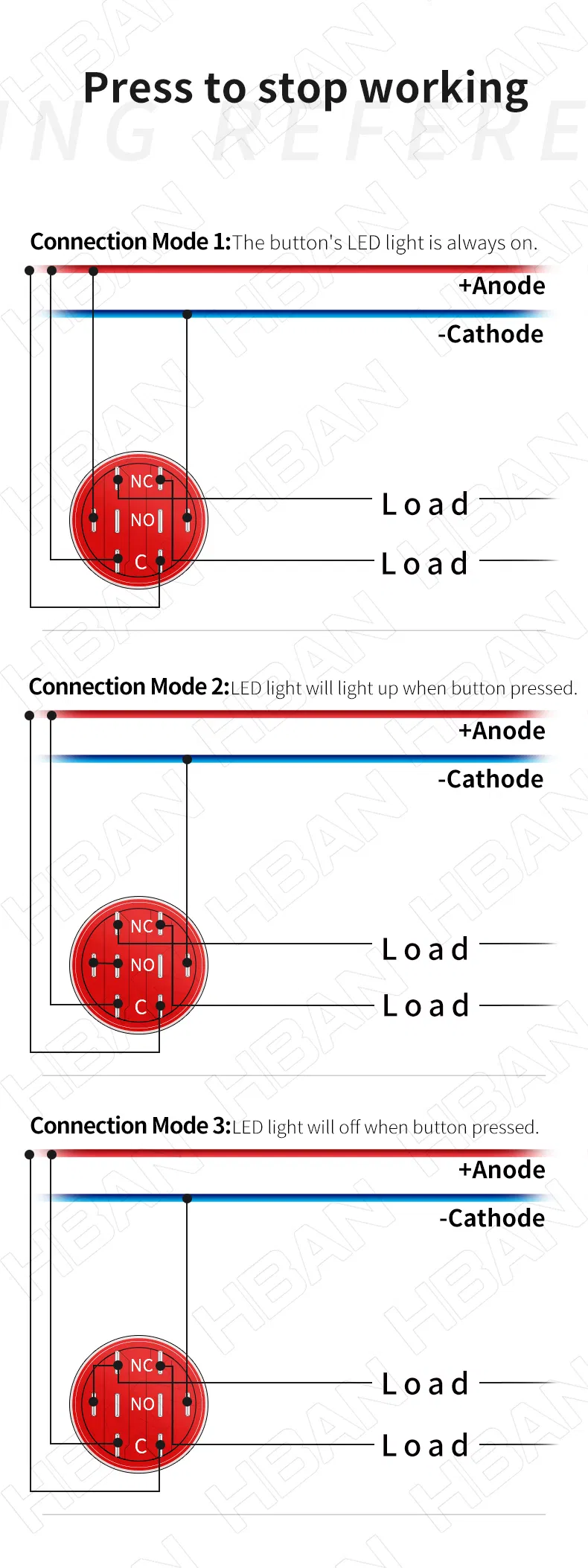

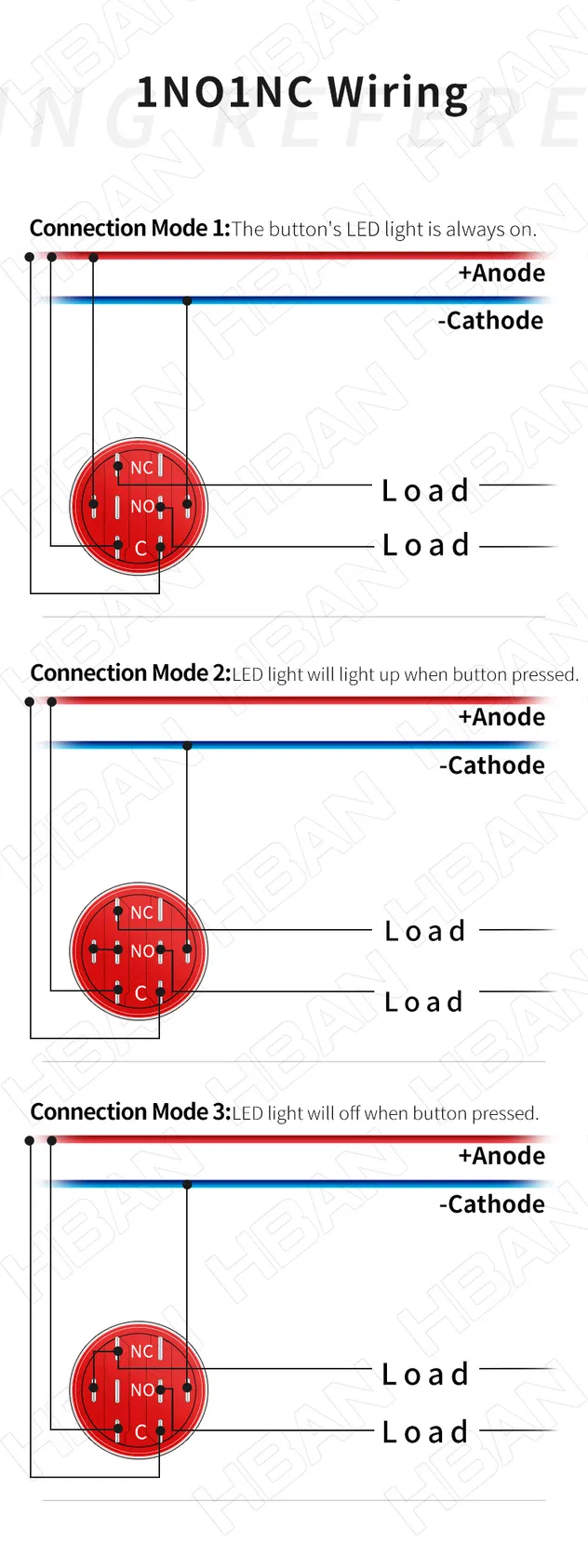

⚡ Wiring & Models

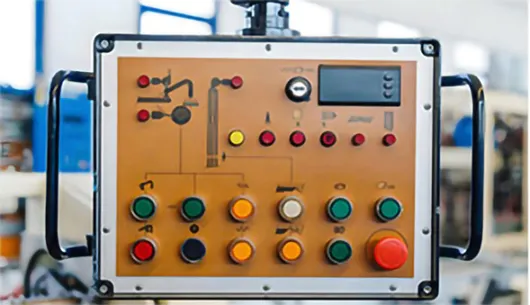

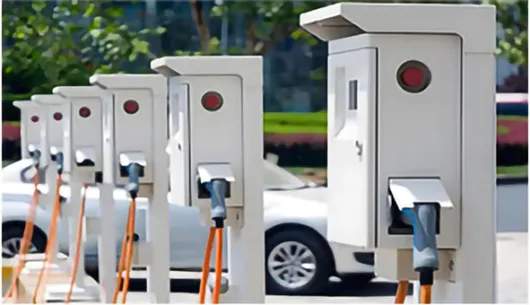

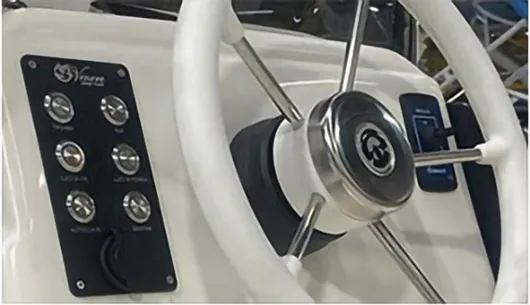

🚀 Applications
📦 Packaging & Shipping
Standard pack includes 40 pieces of 16mm metal switches per foam box, including rubber rings. Outer protection provided by 5-layer corrugated export cartons.
❓ Frequently Asked Questions
How can I obtain a product catalog?
We offer a comprehensive product catalog. You can contact us online to receive the most recent digital version.
Do you provide samples?
Yes, we provide 1-3pcs as samples. A sample fee and shipping cost apply, which are refundable upon placing a bulk order.
What is the standard delivery time?
Stock items are shipped within 3 working days. For custom or out-of-stock items, we provide a lead time update within 48 hours.
What payment methods are accepted?
We accept T/T (Wire Transfer), Western Union, PayPal, and Credit Cards.
Is the shipping process safe for fragile switches?
Yes, we use professional foam packaging and 5-layer cartons. We assume responsibility for any products damaged during transit.
What shipping carriers do you use?
For small packages, we use Express (DHL, FedEx, UPS, TNT). Large orders are shipped via Air or Sea freight.
