Basic Information
Application
Pharmaceutical Industry
Certification
CE, GMP, ISO
Power Source
Electric Operated
Sensitivity
High Sensitivity
Technology
Ultraviolet-Visible Spectroscopy
User Interface
Touchscreen
Dimensions
L1410mm X W1200mm X H1680 mm
Product Overview

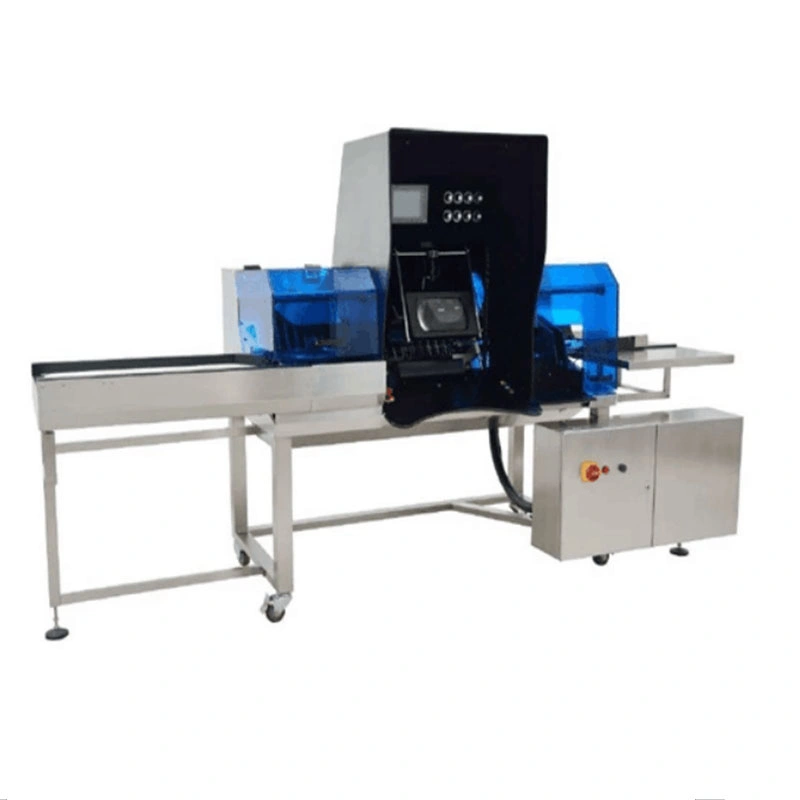

BMT-DJJ-01 Semi-Automatic Inspection Machine
Suitable for: Vials, Ampoules, Dental Cartridges, and Syringes.
Technical Specifications
- Voltage: 220V | Power: 0.55 KW
- Detection Speed: Up to 100 B/Min
- Lamp Illumination: ≤5000 Lux (LX) utilizing Tyndall effect optical system.
- Control System: Advanced touchscreen interface with world-renowned electrical components.
- Construction: High-quality stainless steel, aluminum alloy, and non-metallic materials.
Technical Features & Advantages
Tyndall effect optical system with white LED protects inspector visual acuity.
Stepless adjustment for conveying, rotating, and feeding speeds.
Multi-criteria inspection: particulate matter, glassware defects, bottom, shoulder, and cap area.
Ergonomic design allows inspectors to work in a comfortable sitting posture with magnifying lens support.
Automatic counting functions for infeed, outfeed, and rejected products.
Tool-free change-over for different product sizes (10ml to 40ml).
Frequently Asked Questions (FAQ)
Q1: Which pharmacy containers are compatible with the BMT-DJJ-01?
A: The machine is designed for vials, ampoules, dental cartridges, and syringes ranging from 10ml to 40ml.
Q2: How does the impurity detection system work?
A: It uses the Tyndall principle where impurity particles are enhanced under a concentrated light beam, making them easy to identify via a magnifying lens.
Q3: Is the inspection process fully manual?
A: It is a semi-automatic system. The machine handles bottle rotation and conveying, while an operator performs visual judgment and triggers automatic rejection via keystroke.
Q4: Can the production speed be monitored?
A: Yes, the touch screen displays instantaneous speed, total production count, and the number of rejected items in real-time.
Q5: What certifications does this equipment hold?
A: The BMT-DJJ-01 meets CE, ISO, and GMP standards for pharmaceutical production safety and quality.
Q6: Is maintenance difficult for this machine?
A: No, the open-type design and stainless steel construction allow for easy access, quick cleaning, and tool-free maintenance.
