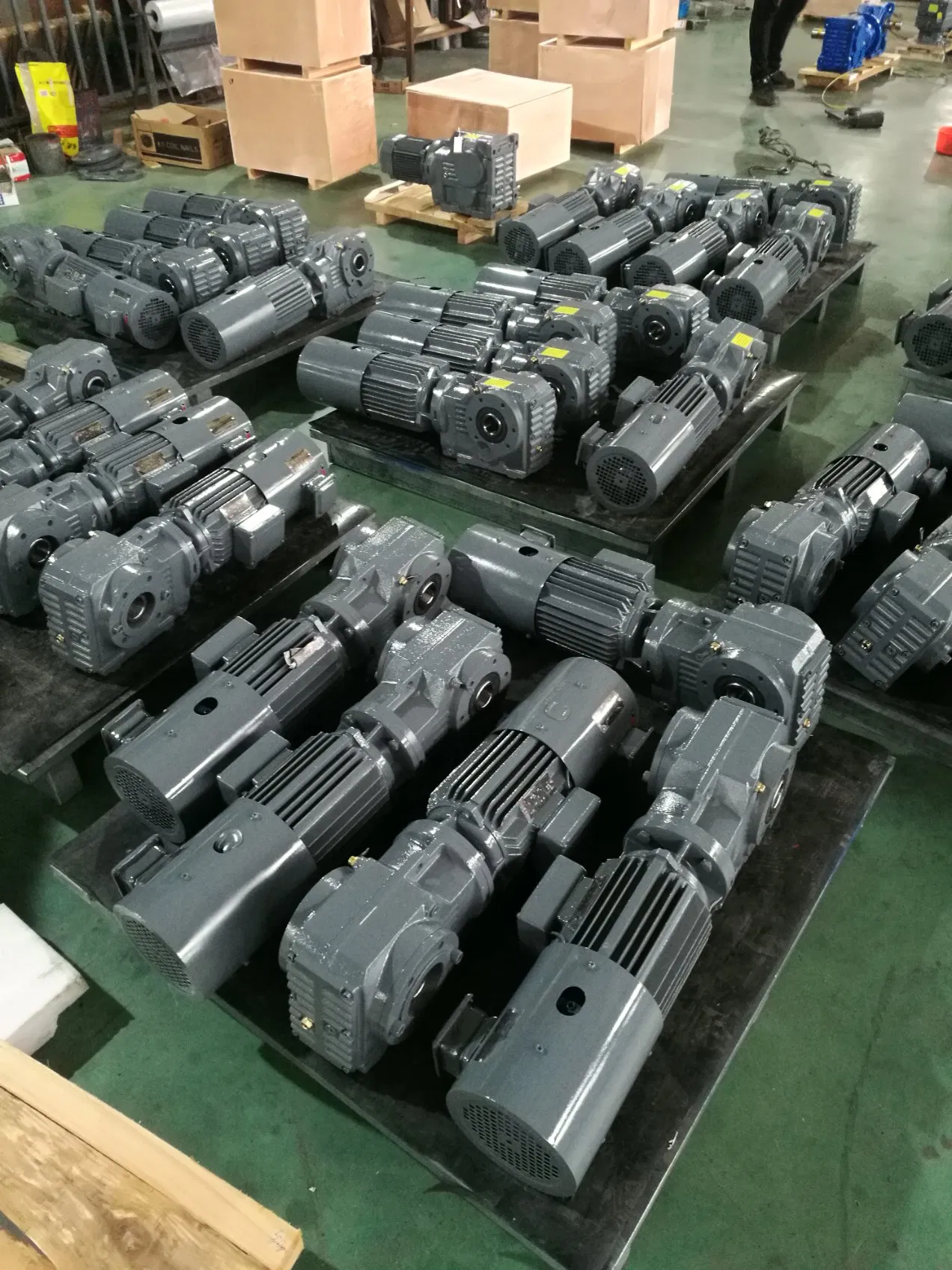

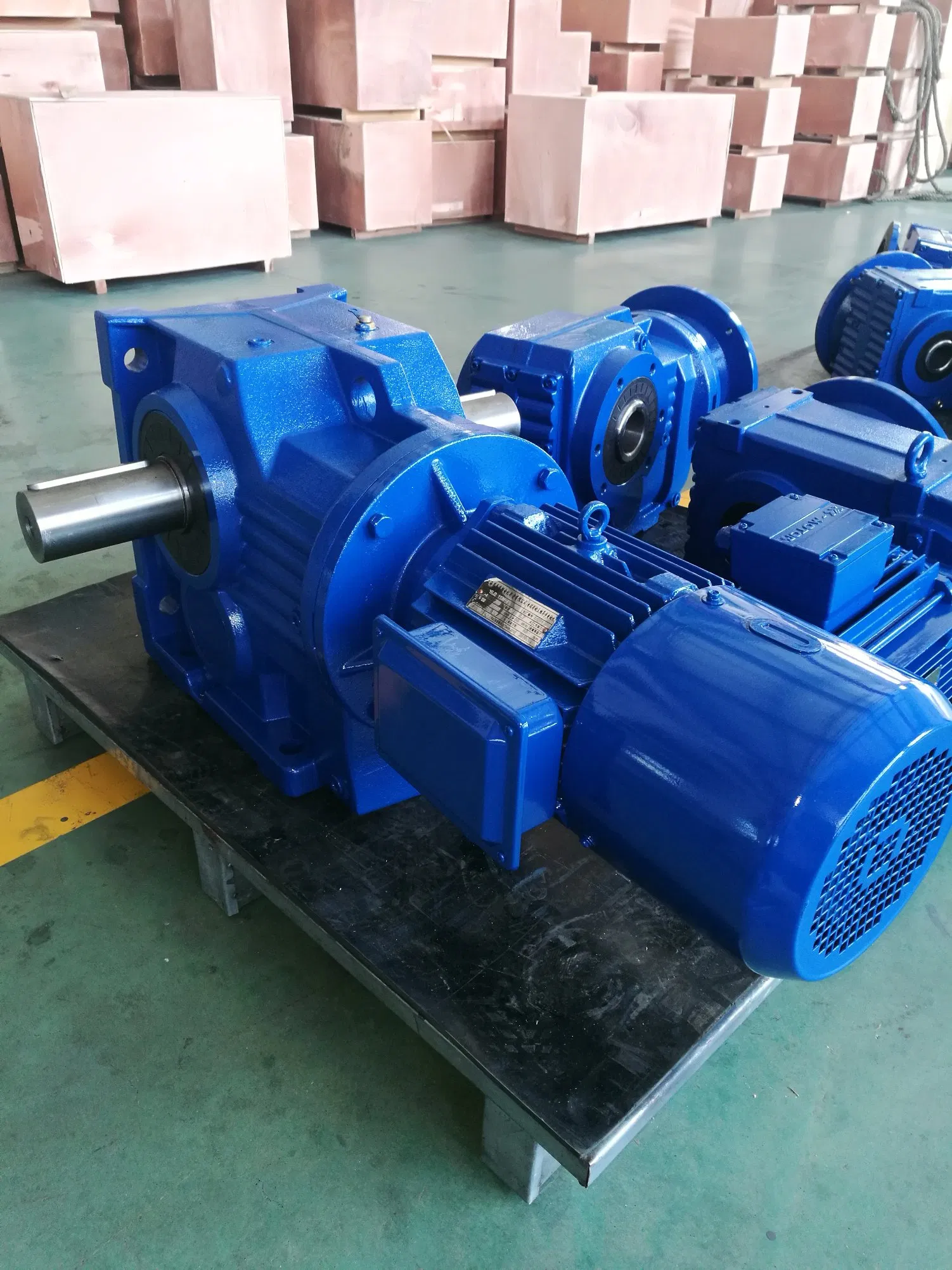

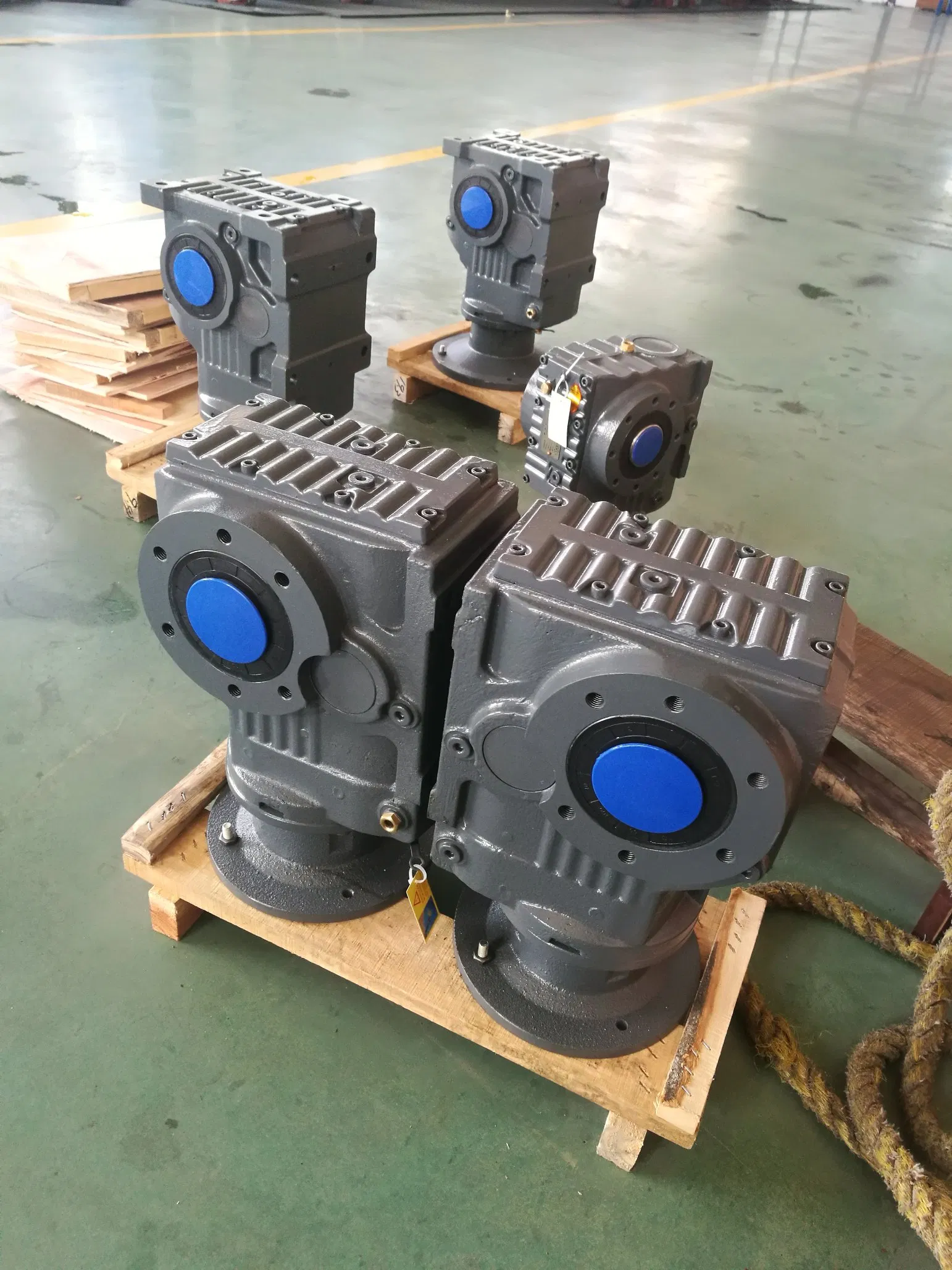

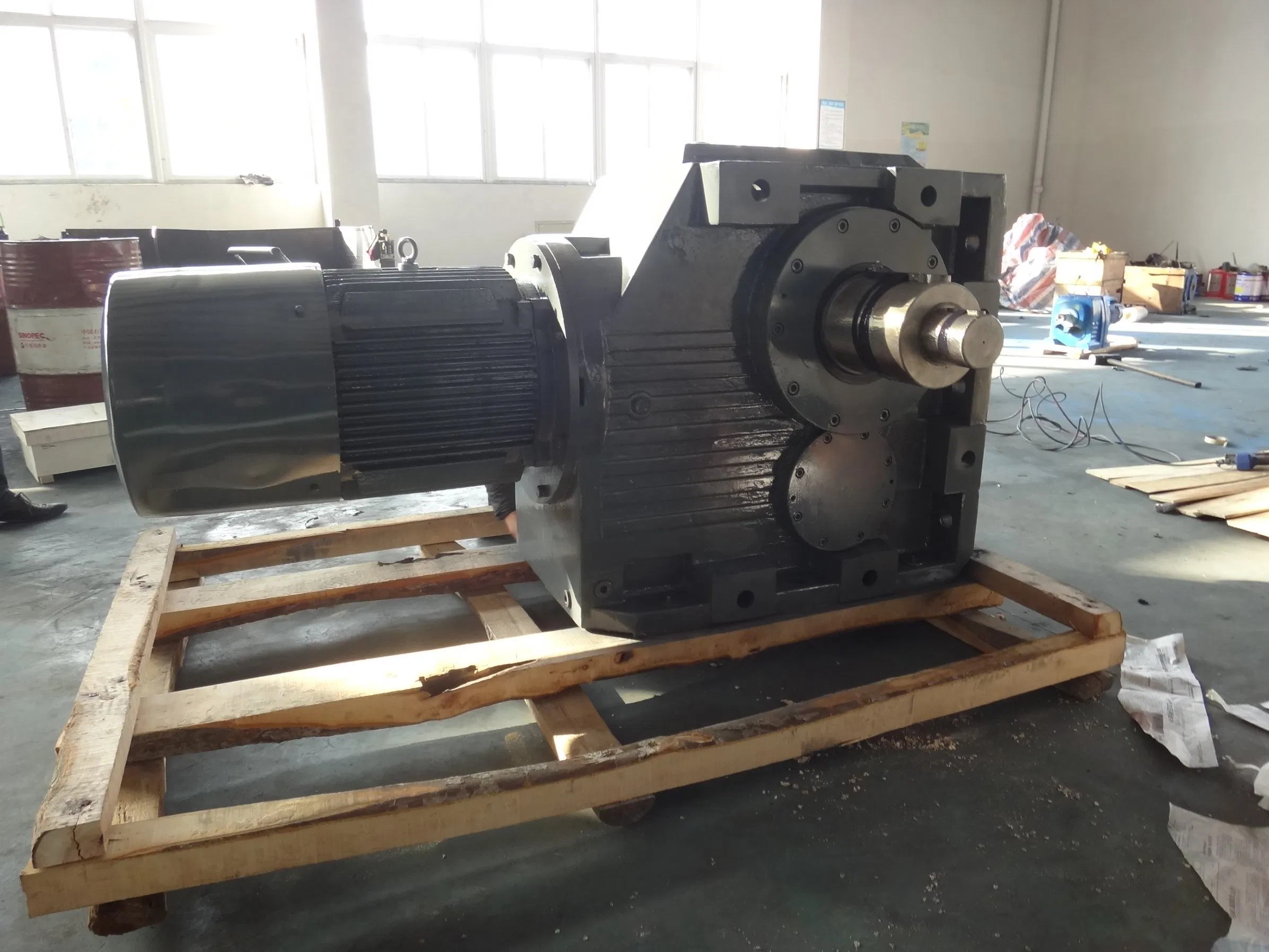

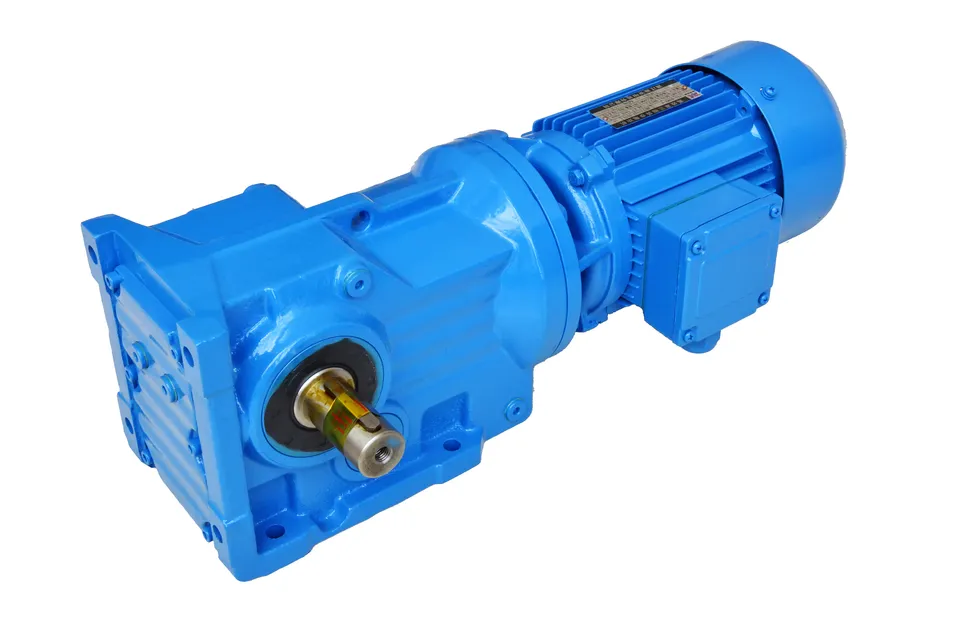

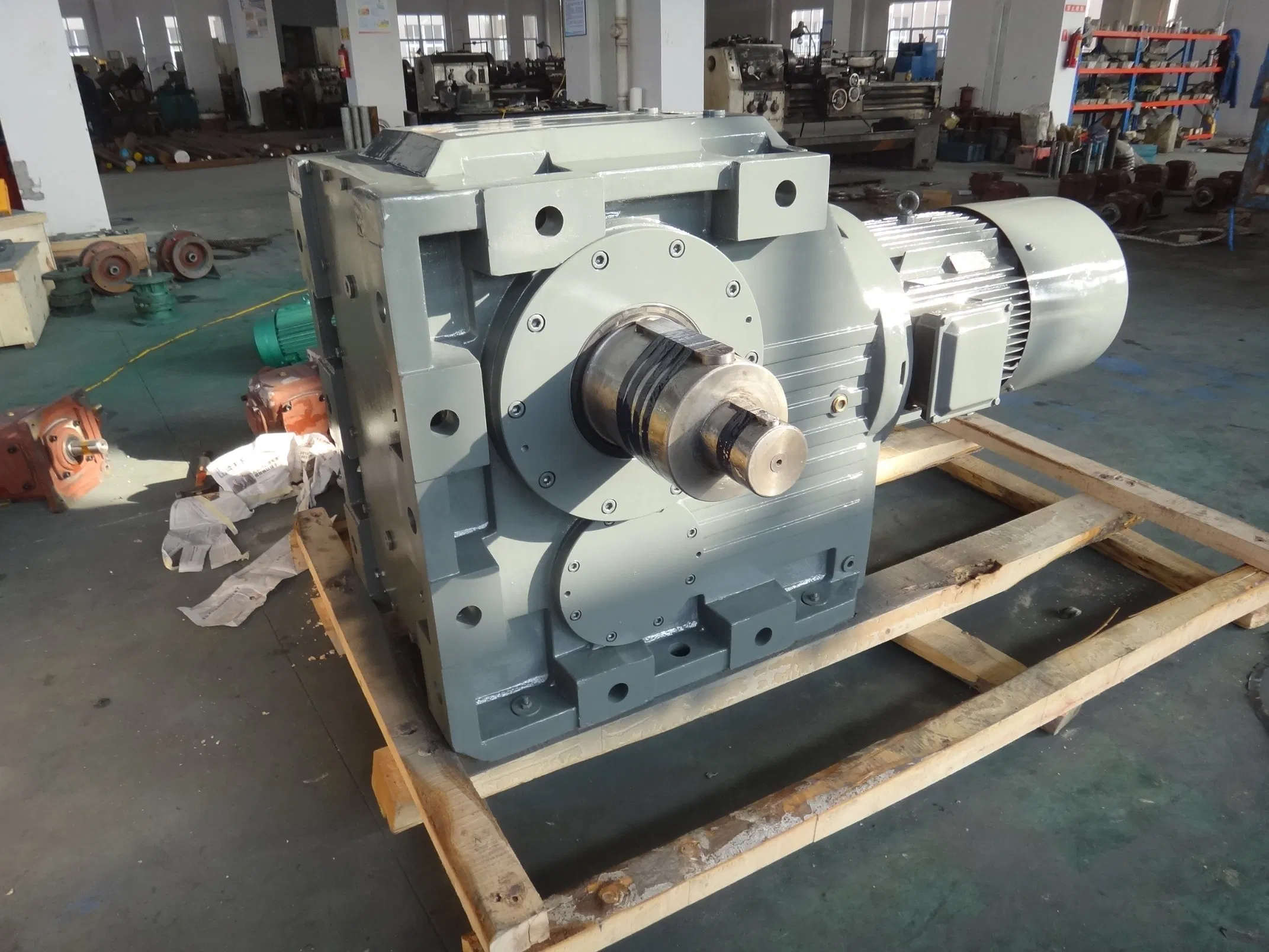

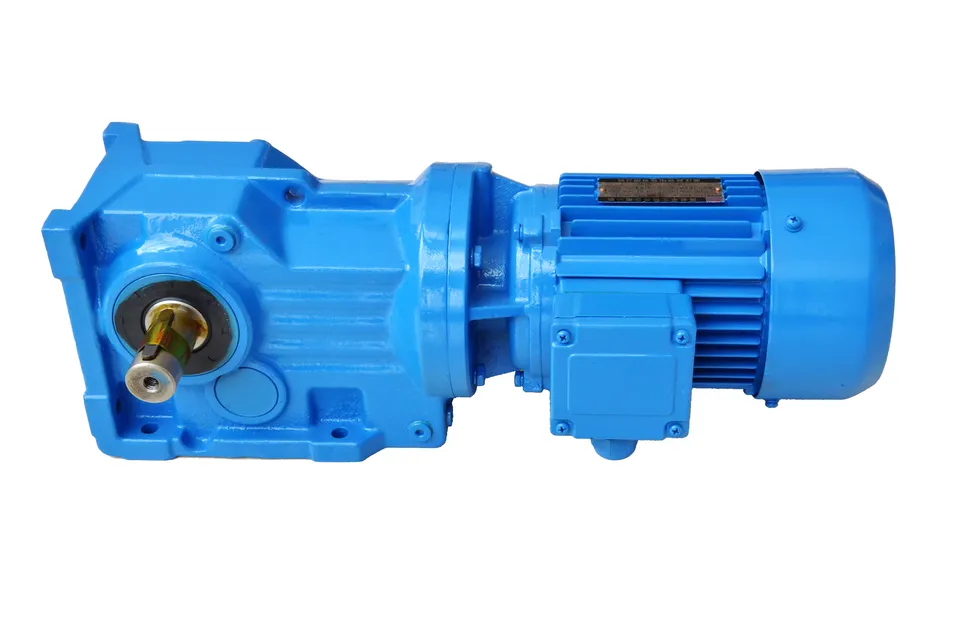

The K Series bevel helical geared motors offer ratios from 6:1 to 180:1 in three stages. Motors are available up to 90kW and output torque capacity up to 12,300 Nm. Designed with integral cast feet for base or end mounting, it can be offered with single or double extended output shafts. Units are also available shaft mounted or with output flanges for horizontal or vertical mounting.
| Housing Material (K37-87) | HT200 High-strength Cast Iron |
| Housing Material (K97-187) | HT250 High-strength Cast Iron |
| Gear Material | 20CrMnTi |
| Surface Hardness of Gear | HRC58°-62° |
| Input/Output Shaft Material | 40CrMnTi |
| Efficiency | 94%-96% |
| Noise Level (Max) | 60-68dB |
| Protection Class | IP54, F Class |
Unique sound-absorbing structure and large cooling fan design ensures quieter operation and stable heat dissipation for extended service life.
Advanced grinding processes achieve high-precision tooth profiles, enhancing meshing accuracy and operational stability.
Based on a modular system, offering high adaptability and rapid customization for diverse industrial drive solutions.

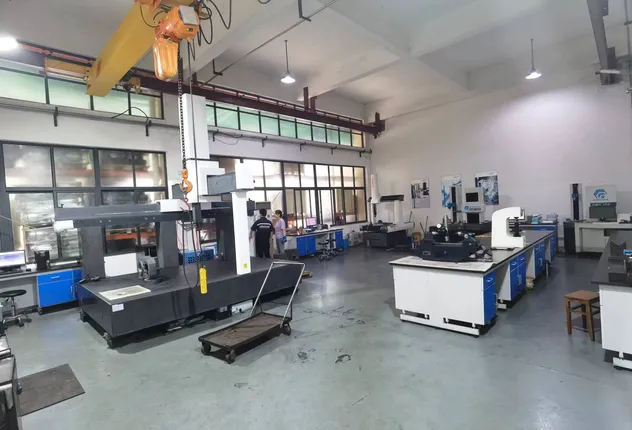

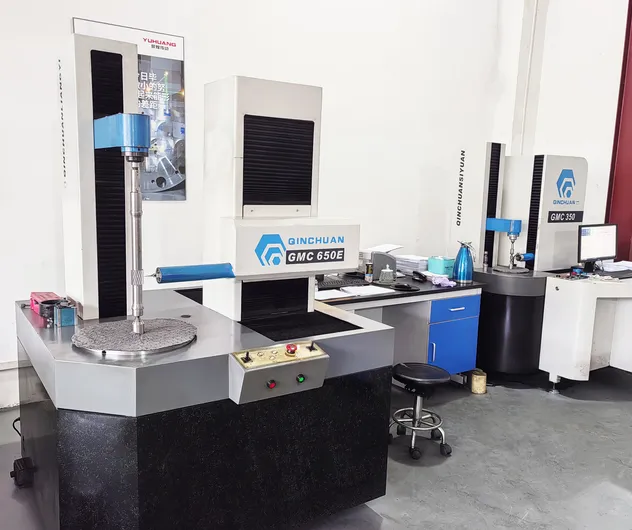

Quality Assurance
Rigorous inspection throughout production. We provide comprehensive warranty support for all quality-related issues.
24/7 Online Support
Immediate response to after-sales inquiries and product questions via our professional engineering team.
Technical Expertise
Expert advice provided for standard and specialized projects based on years of industrial experience.
