📊 Basic Information
Heat Source Type:
Air Source Heat Pump
Heating Capacity:
9.5-180kw
Refrigerant:
R22, R407, R410, R134A
Production Capacity:
500 Units/Month

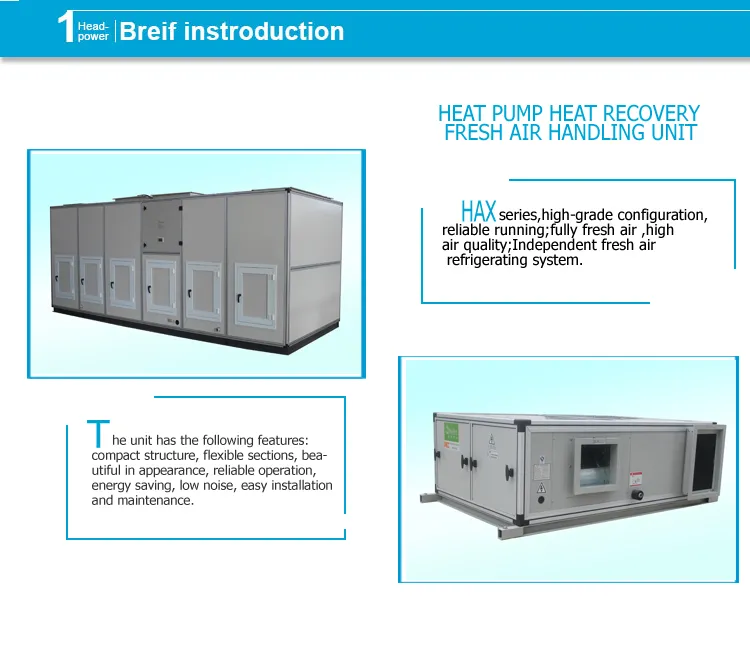

⚙️ Main Features
High-grade Configuration: Famous fully-closed scroll compressors and professional refrigerating parts ensure reliable operation.
Absolute Fresh Air: Direct treatment of outdoor air prohibits cross-contamination and ensures high indoor air quality.
Enhanced Efficiency: Independent refrigerating system increases cooling efficiency by at least 30% compared to conventional systems.
Integrated Design: Evaporative condensation technology eliminates the need for cooling towers or outdoor units.

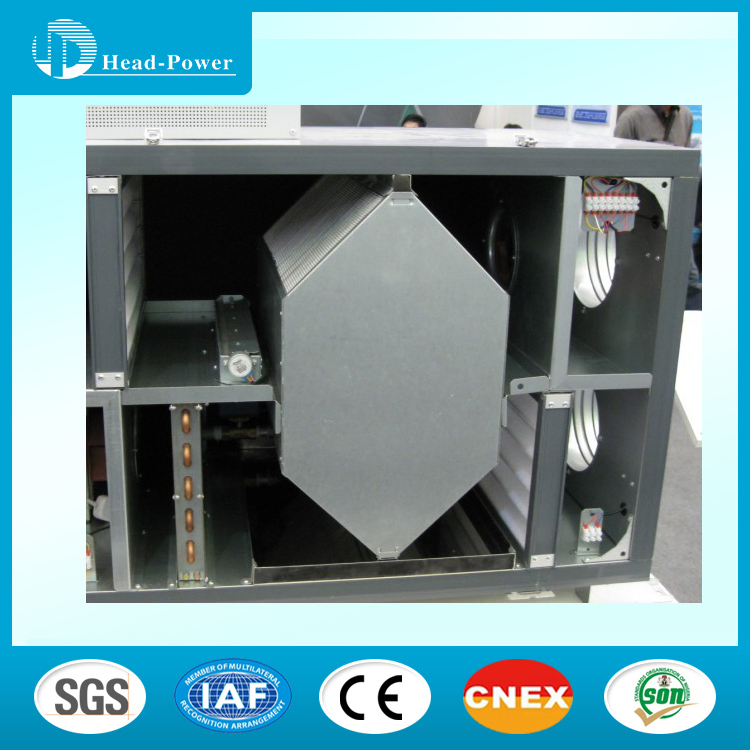

Advanced Heat Recovery: Patented technology achieves recovery efficiency up to 92%, saving approximately 50% energy.
Smart Control: LCD interface with microcomputer intelligent controller for automatic program management and self-diagnosis.
📋 Technical Parameters
| Model |
Cooling (KW) |
Heating (KW) |
Air Flow (m³/h) |
ESP (Pa) |
Weight (kg) |
| HAX015 | 9 | 9.5 | 1500 | 80 | 310 |
| HAX030 | 16 | 16.7 | 3000 | 120 | 390 |
| HAX060 | 28 | 30 | 6000 | 180 | 650 |
| HAX100 | 46 | 49 | 10000 | 240 | 890 |
| HAX200 | 92 | 98 | 20000 | 400 | 1480 |
| HAX350 | 167 | 180 | 35000 | 500 | 1920 |

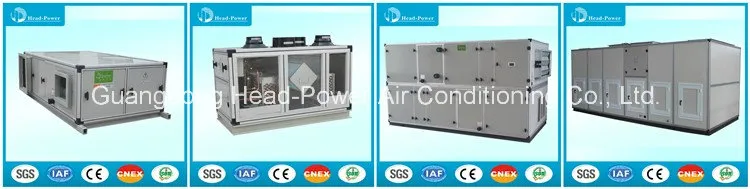

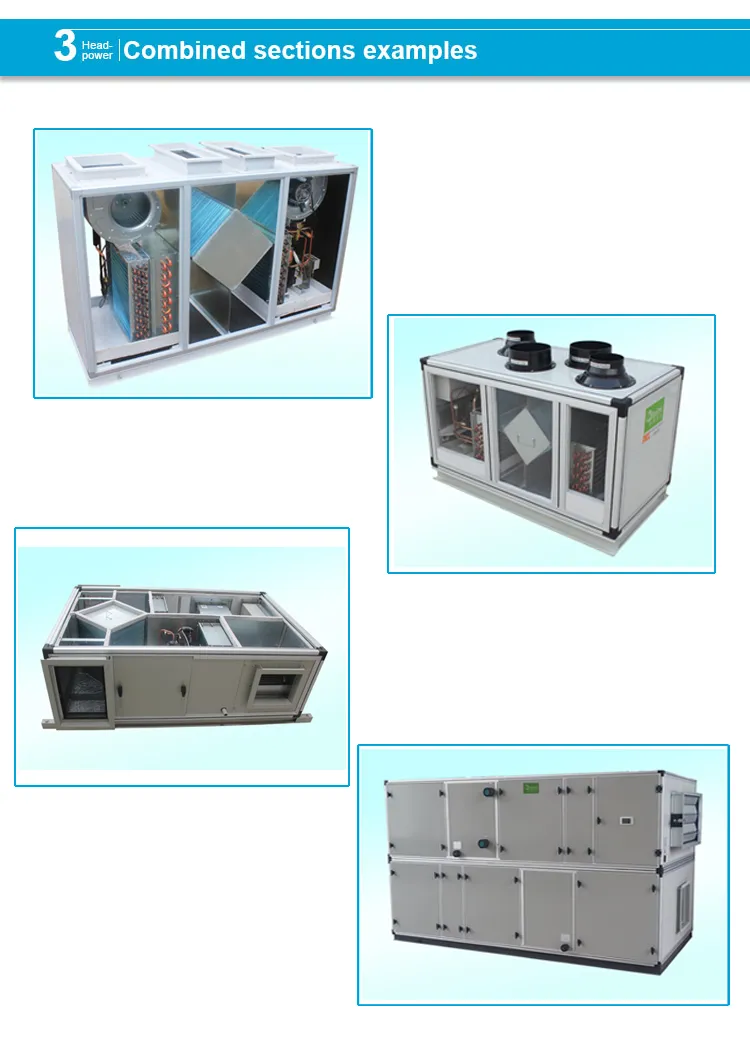

🖼️ Product Display & Packing
🏭 Workshop & Quality
Frequently Asked Questions
Q1: What is the warranty period for the machinery?
The standard warranty is one year after operation or 18 months from the date of shipment. We provide new parts for non-intentional damage.
Q2: Do your products come with CE certification?
Yes, all our machines are manufactured to meet CE standards and come with the necessary certification.
Q3: What is the typical production lead time?
Production usually takes between 30 to 55 days depending on the specific model and customization requirements.

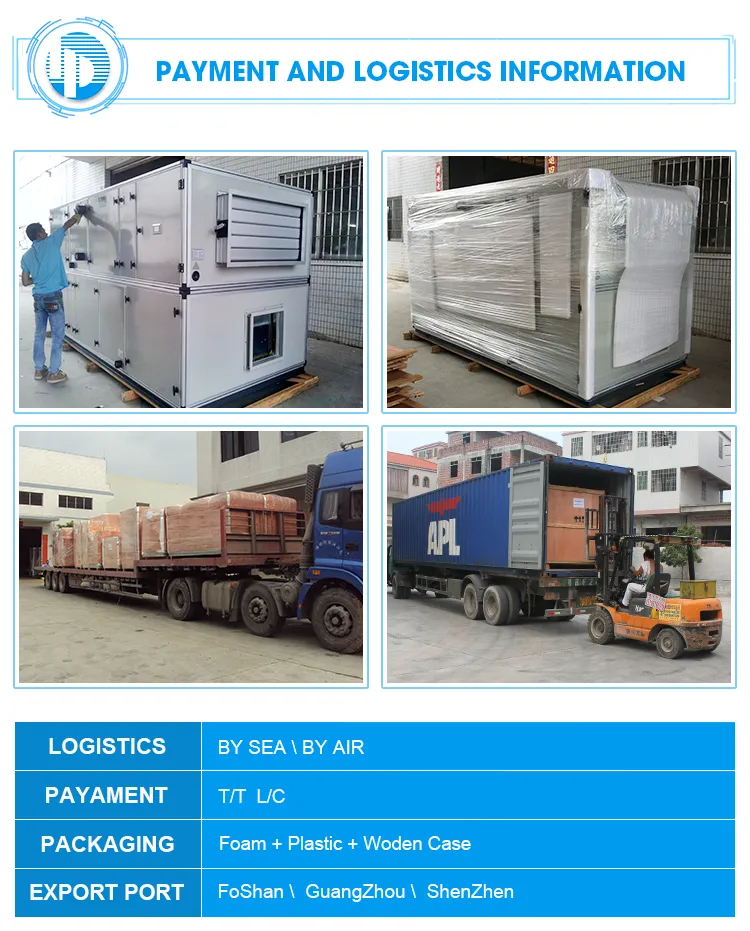

Q4: How is the equipment protected during shipping?
We use strong export-standard wooden pallets and reinforced packaging (Plastic + Foam + Wooden Case) to ensure safety during transit.
Q5: Can the units be customized for specific projects?
Yes, our technical team holds various patents and can customize the machines, including refrigerant types (R22, R407C, R410A) and heating options.
Q6: Do you inspect the products before delivery?
Yes, our QC department performs rigorous inspections on every machine before shipping to ensure zero defects.
