Basic Specifications
Material
Stainless Steel / Alloy Steel
Make/Break Torque
115 kN·m
Clamp Size
φ60 mm - φ250 mm
Production Capacity
10/Year
Product Overview

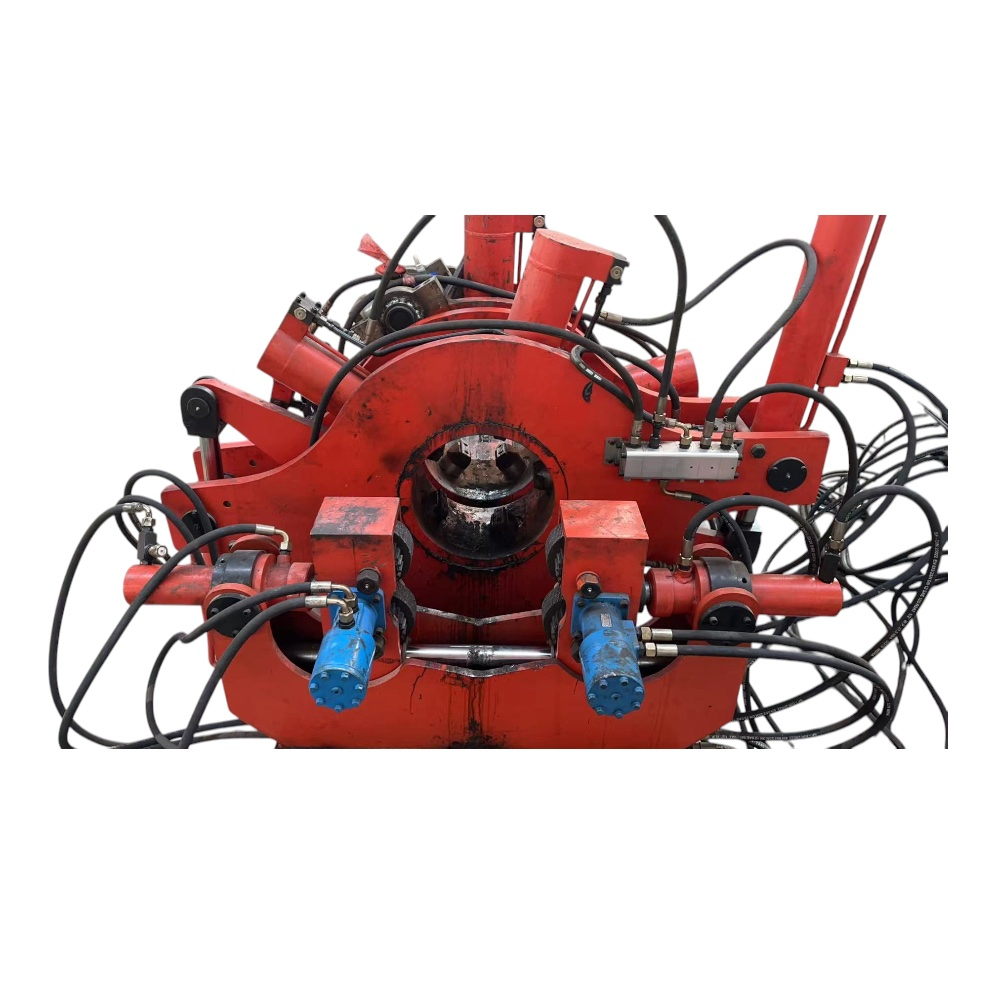

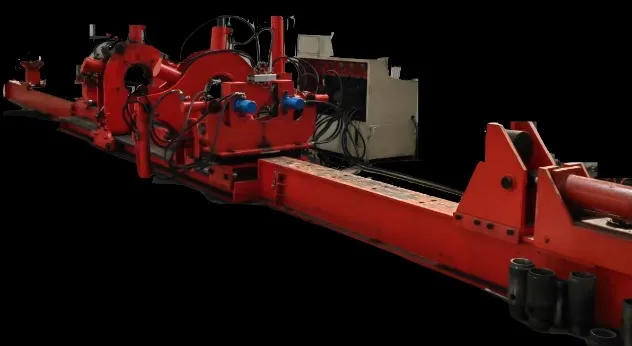

ORTCZJ-4X Hydraulic Bucking Unit (Make-Up & Break-Out)
- Standard Model: USD 62,500

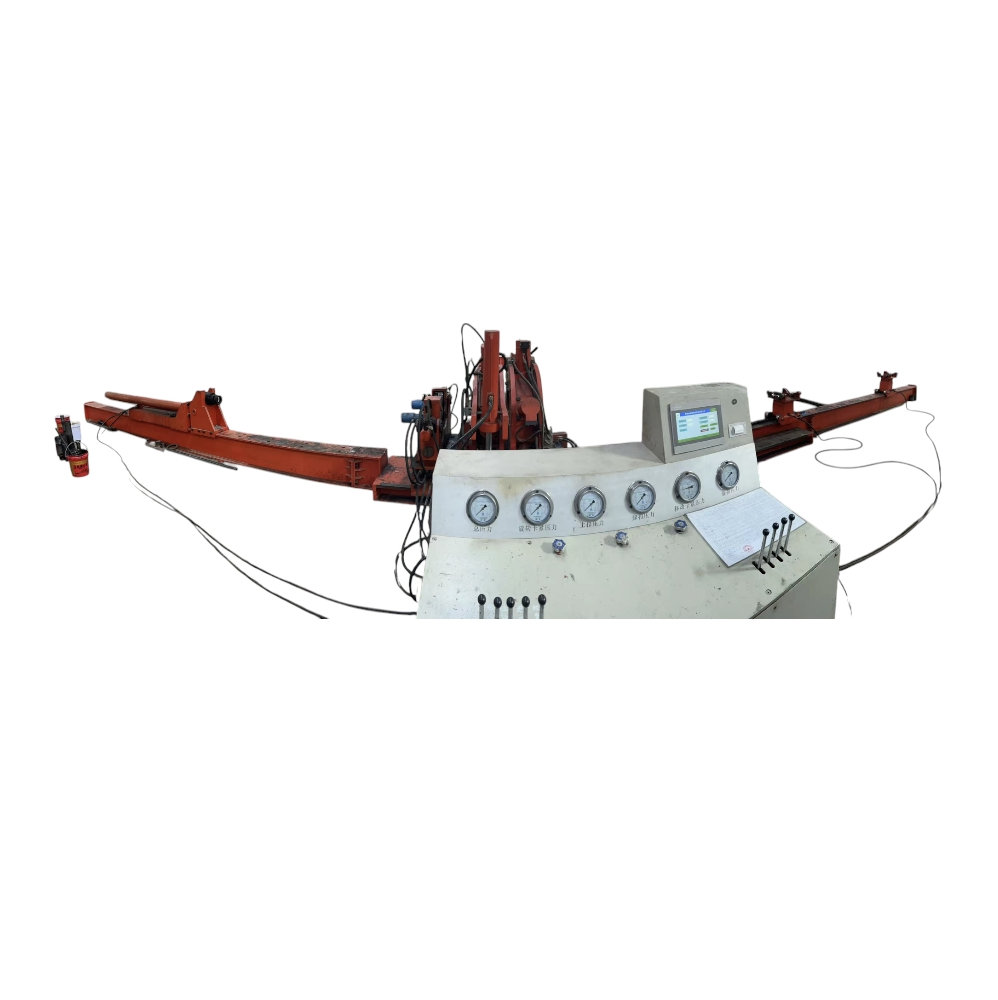

- Upgraded Model (with Data Recording): USD 63,500
- MOQ: 1 Piece
- Application: Primarily used for efficient make-up, break-out, and rotor pulling of screw motors (PDM), drill pipes, and jars.
Technical Parameters
| Parameter |
Value |
Parameter |
Value |
| Single Stroke |
40° |
Quick-Spin Torque |
4 kN·m |
| Pushing Force |
Max. ≤246 kN |
Pulling Force |
Max. ≤196 kN |
| Motor Power |
22 kW |
Oil Tank |
0.5 m³ |

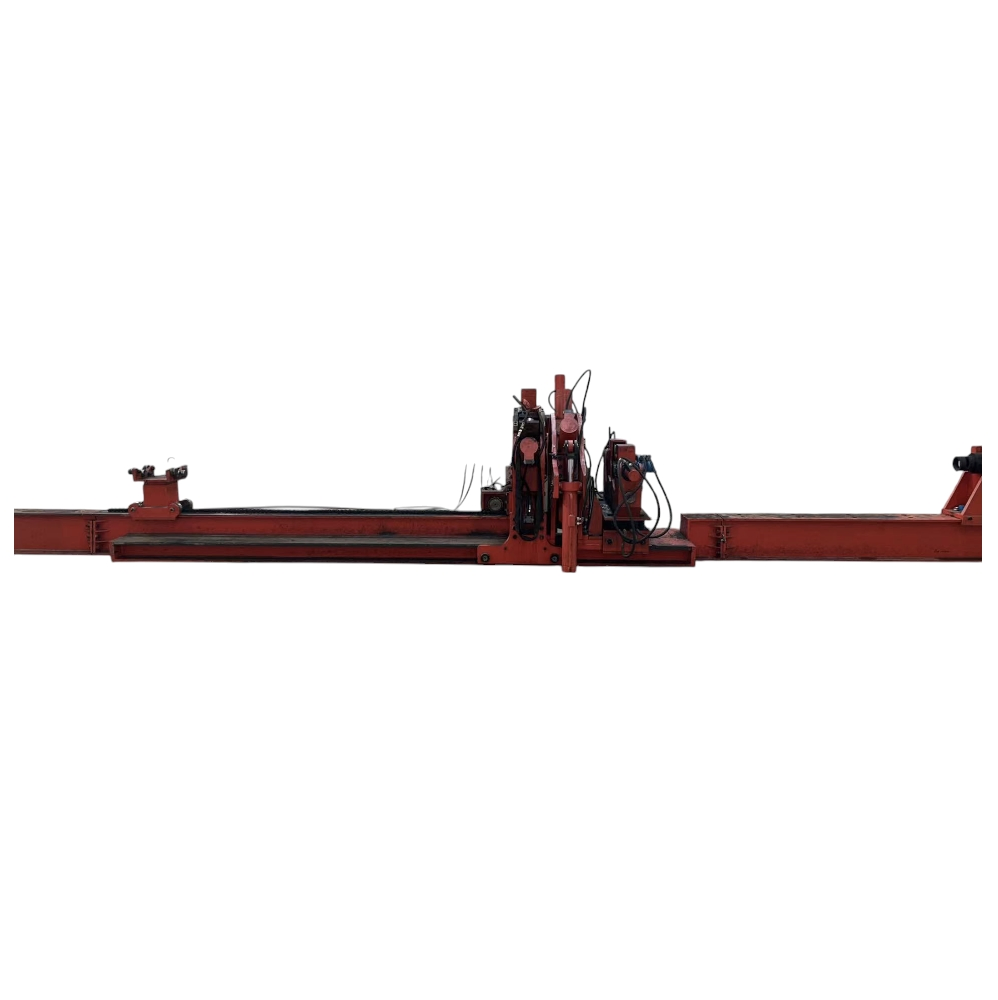

| Main Unit Size |
17240 mm × 1780 mm × 1700 mm |
Key Features & Engineering
- High Torque Capability: Rated up to 115 kN·m for robust operations.

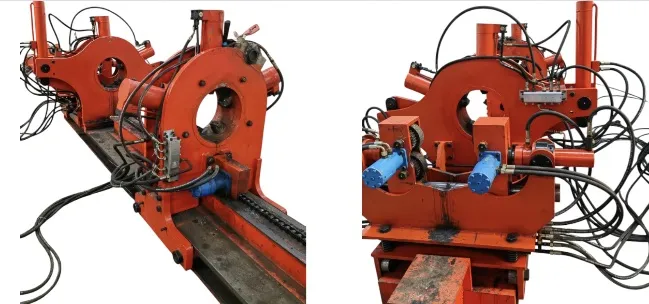

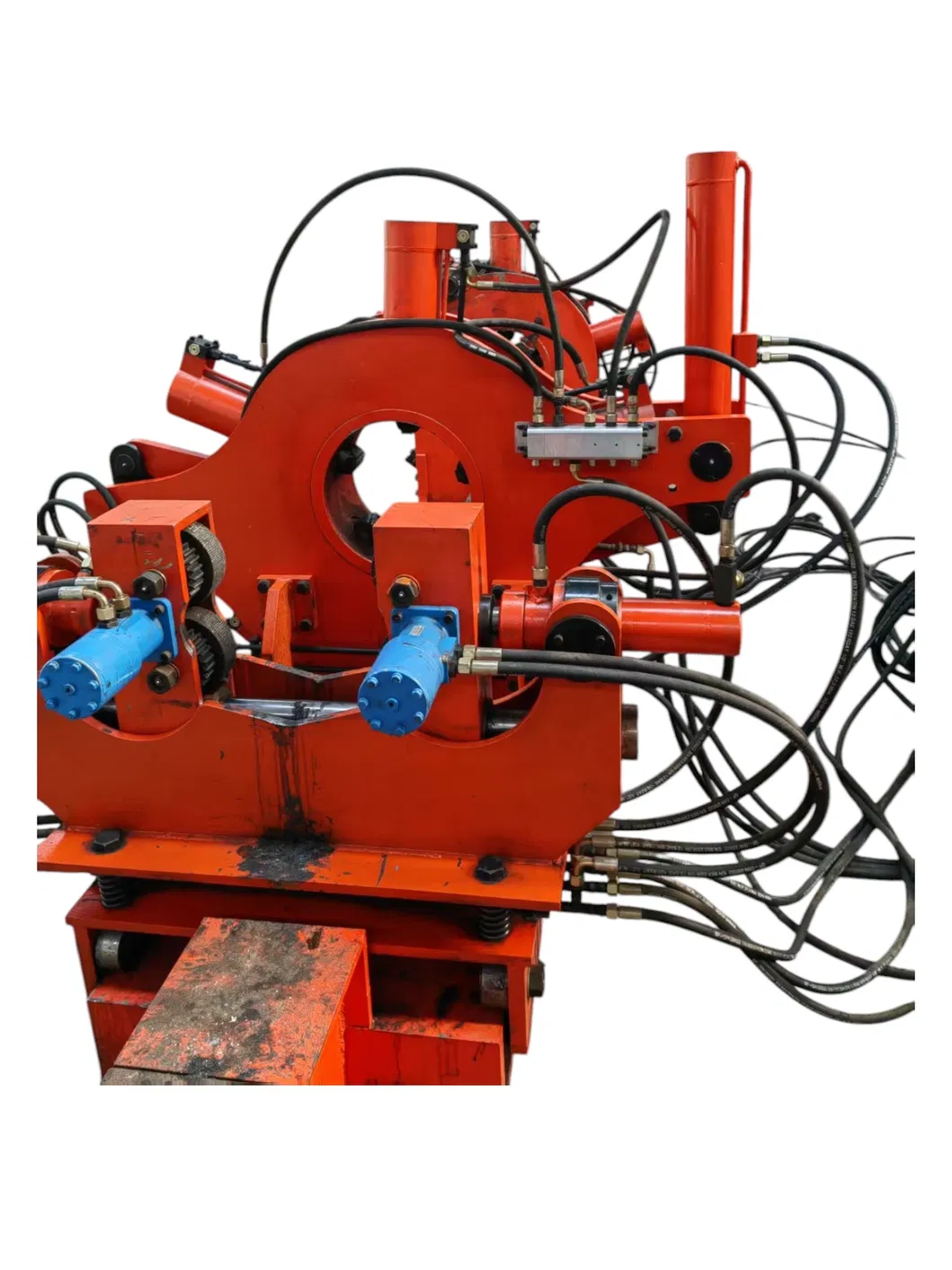

- Quick-Spin Tong: Hydraulic motor driven friction wheels for rapid thread spinning.

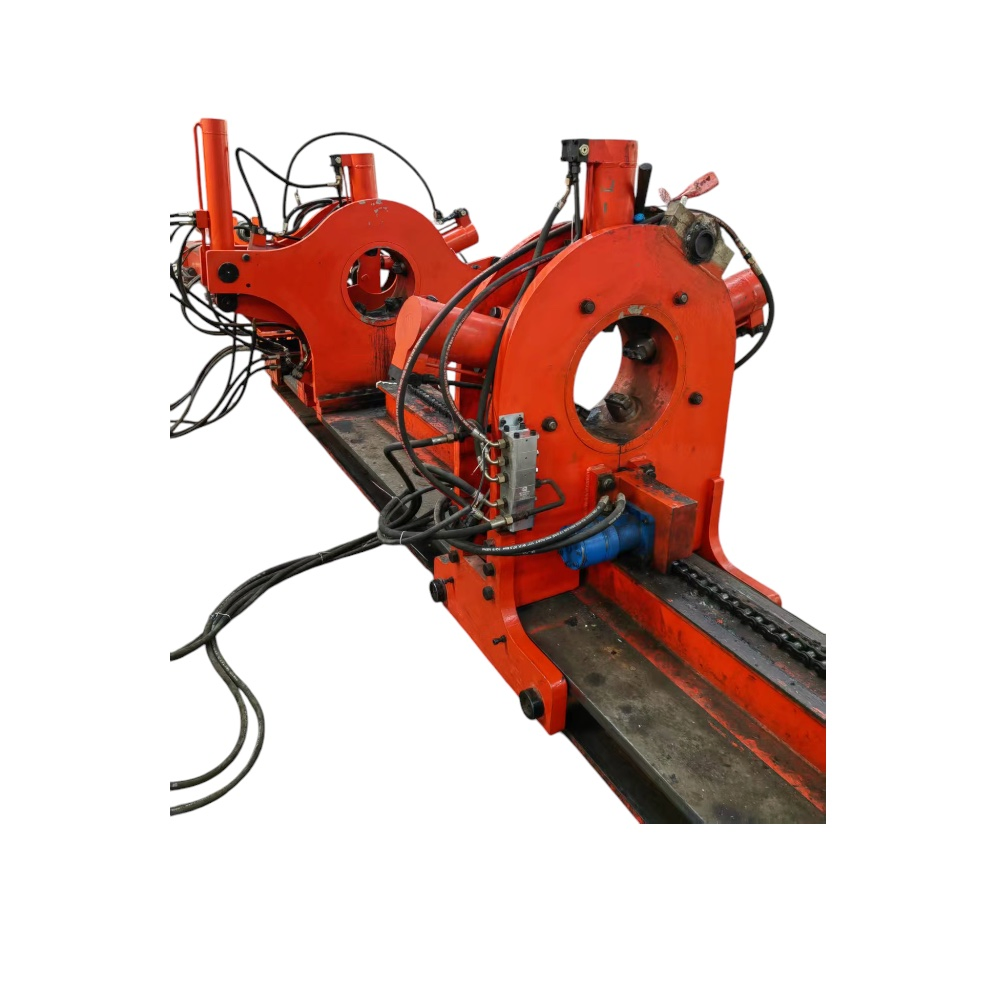

- Secure Self-Lock: Six-jaw clamping cylinders ensure stability and safety.
- Surface Treatment: Epoxy zinc-rich primer with acrylic polyurethane topcoat for anti-corrosion.
- Premium Components: Seals from Japan NOK or UK Hallite; synchronization valves from Italy.
Logistics & Service
Package
Wooden Crate (Moisture & Shockproof)
Warranty
1-Year Main Components Coverage
Frequently Asked Questions
Does the unit provide real-time torque display?
The upgraded model records and exports pressure/torque data for quality traceability but does not offer real-time display during the operation.
Can the unit be customized for specific requirements?
Yes. We can modify the hydraulic system or structural design to accommodate higher torque requirements or wider clamping diameter ranges.
What is the shipping method for this heavy equipment?
Due to the equipment's size (17m length) and weight (over 8 tons), it is shipped via sea freight only, typically departing from Tianjin Port.
What documents are provided for customs clearance?
We provide a full set including User Manual, Chemical Test Report, NDT Report, Certificate of Origin, Packing List, Commercial Invoice, and ISO9001/API certificates.
What are the standard payment terms?
We typically accept T/T or L/C. For installment requests, generally 60% of the total payment must be settled before the Bill of Lading (B/L) is released.
How is after-sales support handled?
We offer a 1-year warranty with free repairs for quality issues, free remote technical support, and the availability of original spare parts after the warranty period.
