Measurement-while-drilling (MWD) and logging-while-drilling (LWD) use sensors to collect parameters such as the working status of the drilling tool and borehole trajectory in real time. This information is transmitted to the analysis system, providing real-time operation guidance for drilling engineers.

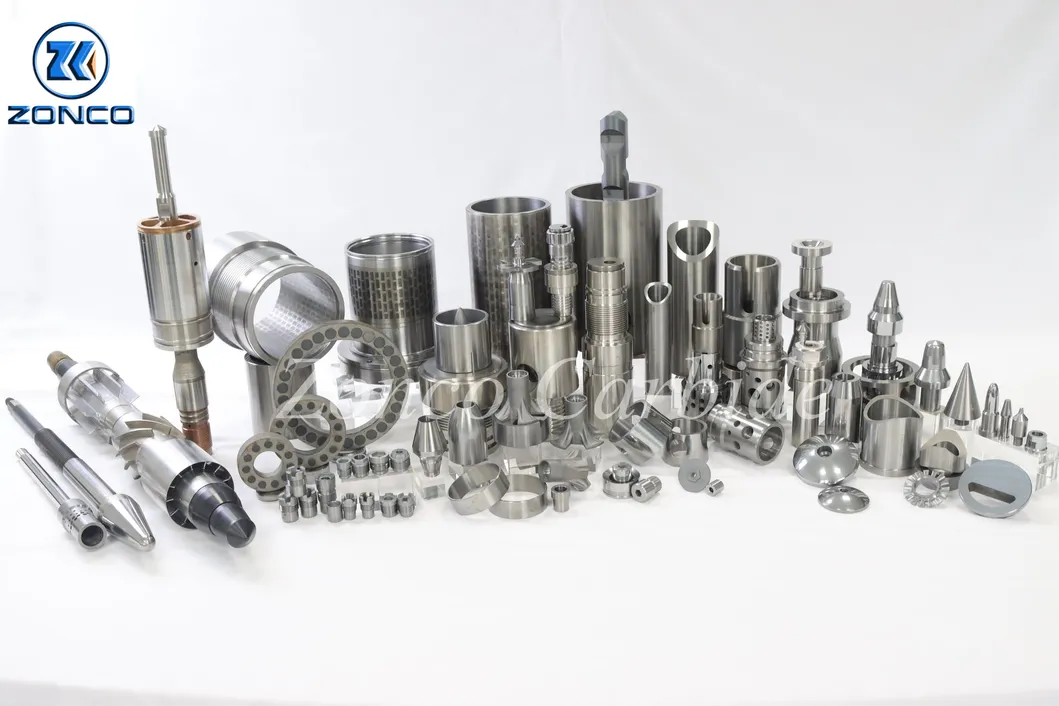

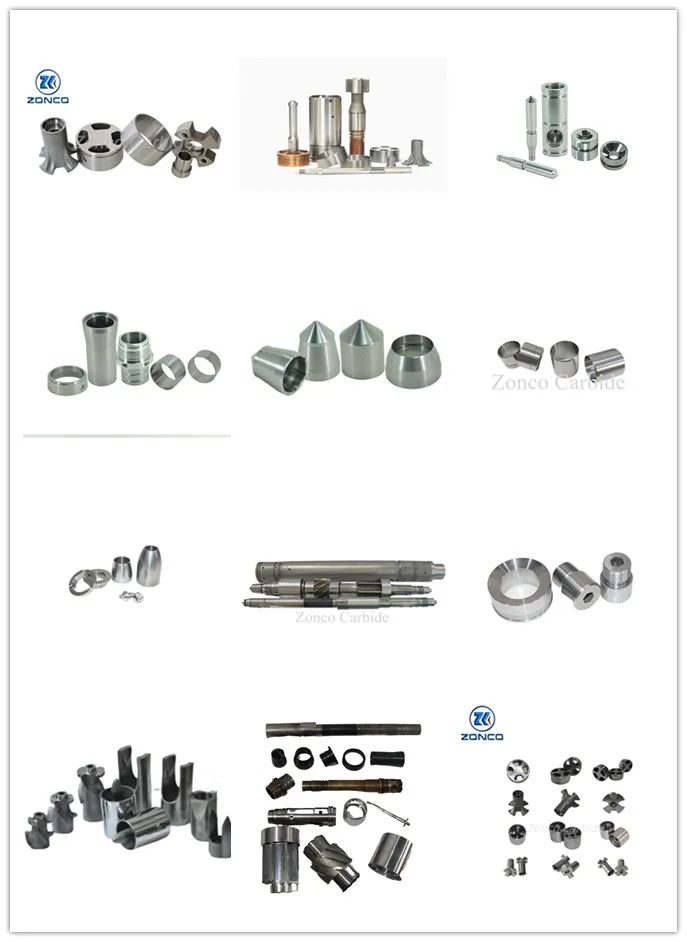

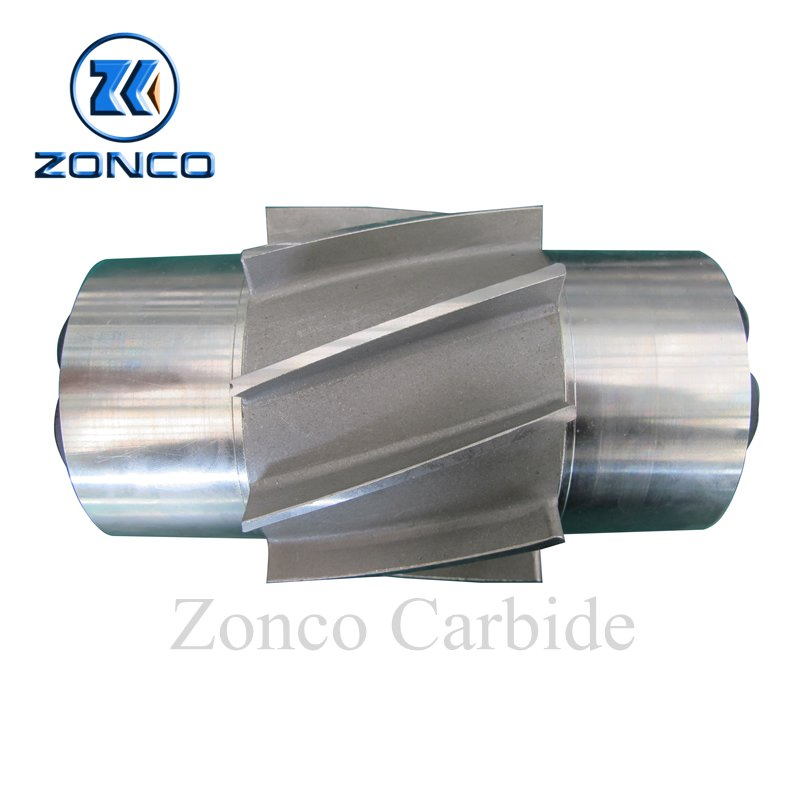

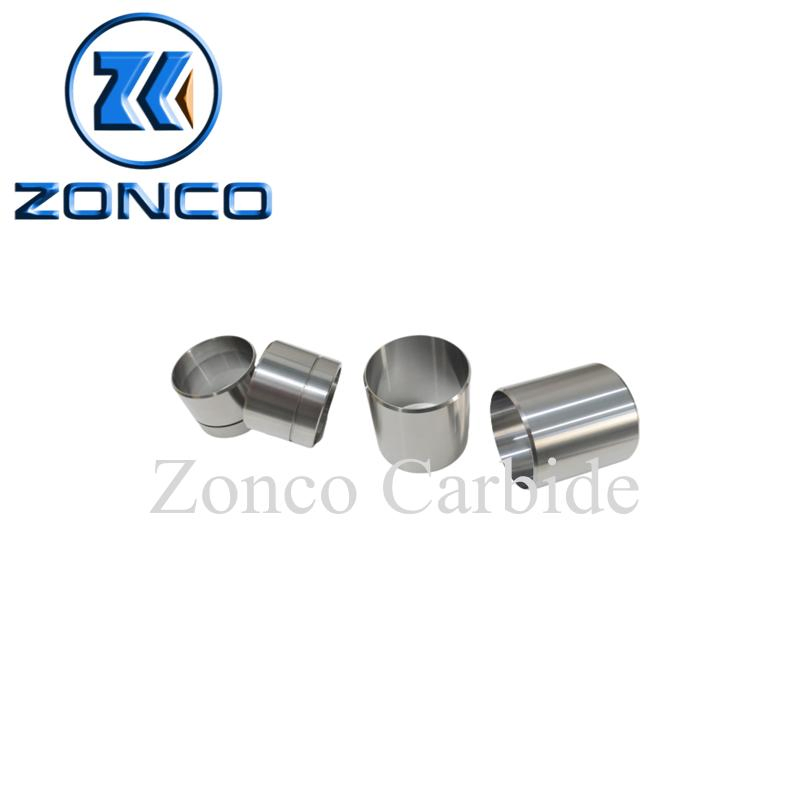

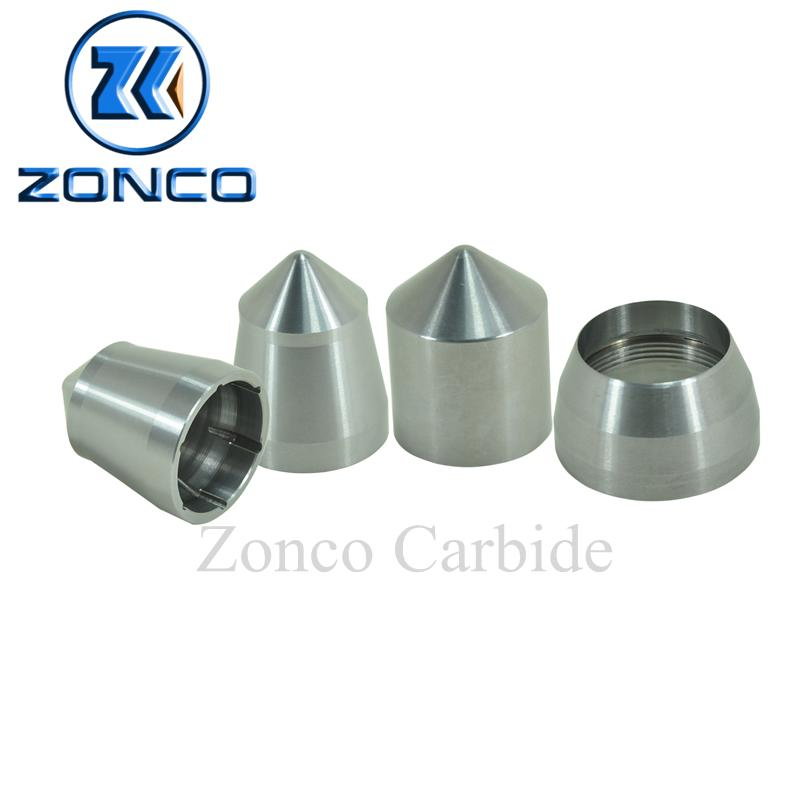

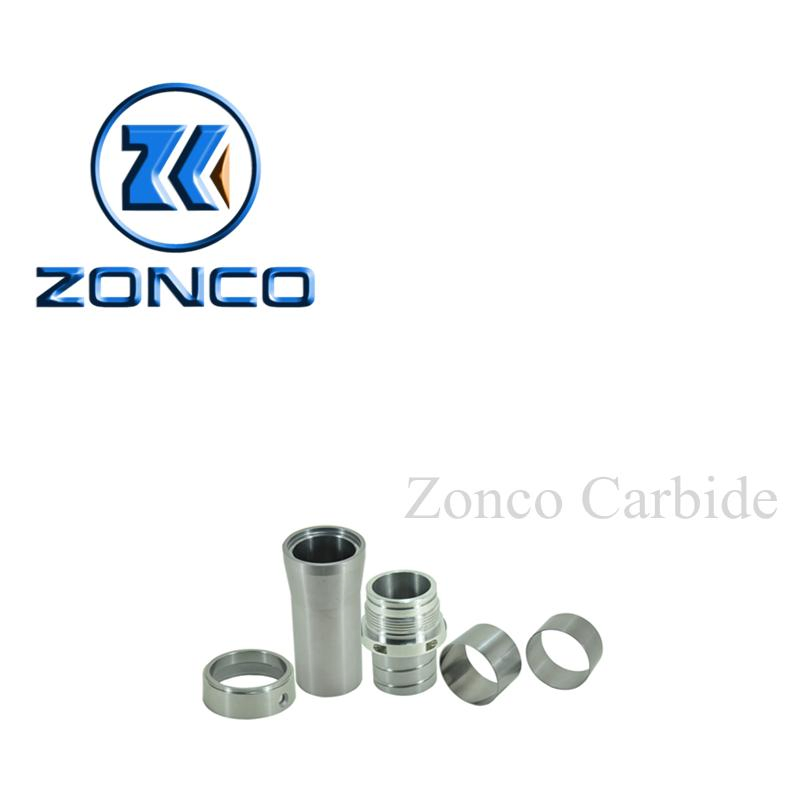

This product is mainly used for vertical well drilling tools, pulse drilling tools, hydraulic oscillators, logging while drilling, and MWD drilling tools. It excels in diversion, erosion resistance, and mud sealing, effectively indicating mud pressure and pulse signals.
| Grade | Co% | Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | Grain Size (μm) |
|---|---|---|---|---|---|
| YG06X | 6 | 14.8-15.1 | 2400 | 91.5 | 0.8-1.2 |
| YG08 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 |
| YG10.2 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 |
| YG15 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 |
| Grade | Ni% | Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) |
|---|---|---|---|---|
| YN6 | 6 | 14.5-14.9 | 2000 | 90.0 |
| YN9 | 9 | 14.3-14.6 | 2300 | 89.0 |
| YN11 | 11 | 14.0-14.3 | 2600 | 88.0 |
