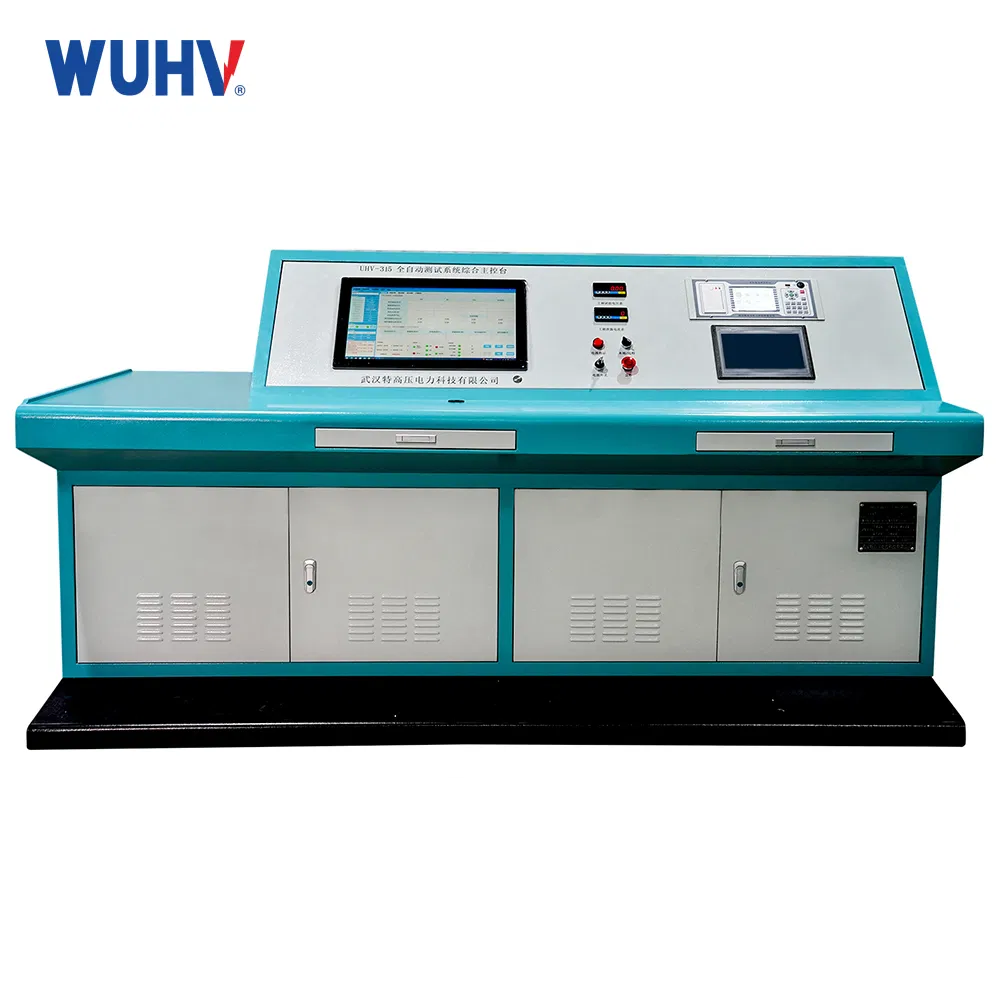

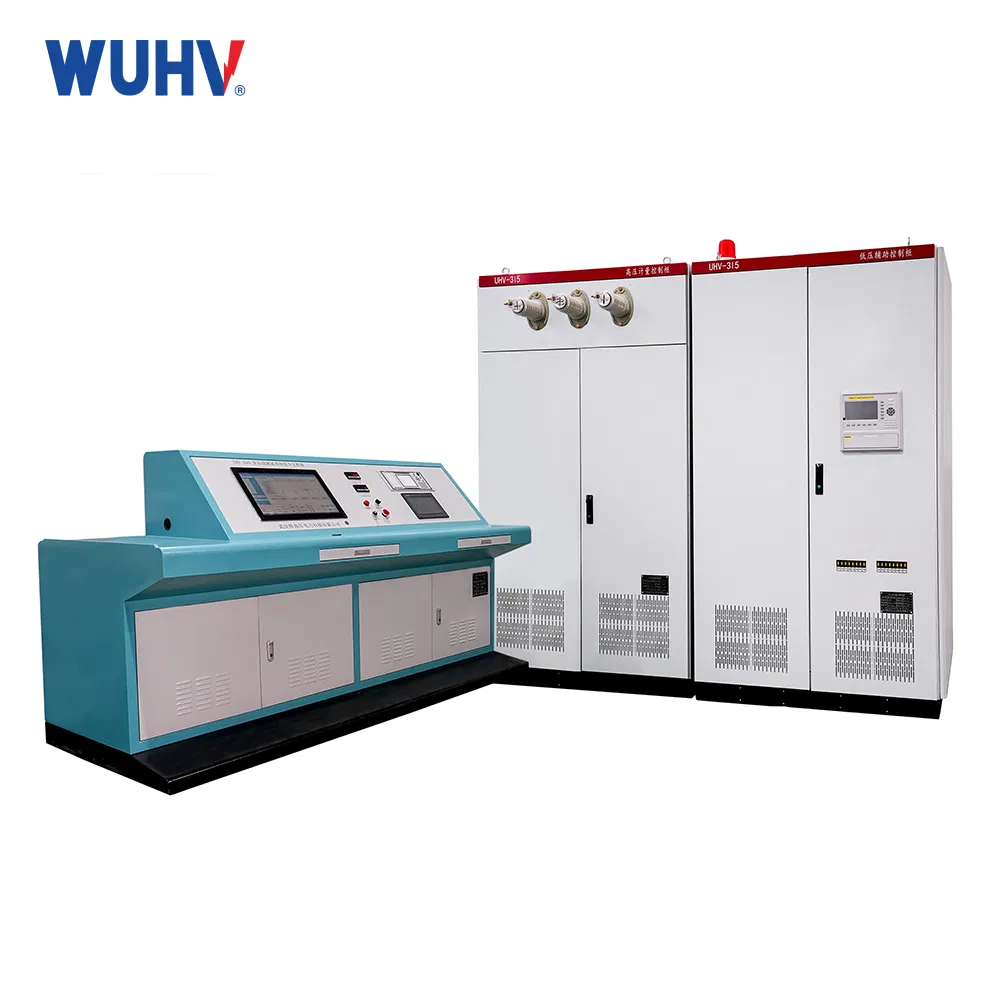

Brief introduction:
Transformer test bench is mainly for power transformers, distribution transformers no-load, load characteristics test, induced voltage and frequency voltage withstand test. The device measurement part by the high-end single-chip control, digital display, no load, short circuit test data simultaneously sampled by the microcontroller to avoid the errors of traditional test methods in voltage, current meter, power meter readings were caused by manual calculation.
Product Features:
Using a large backlit LCD screen, operation, display classification clear and intuitive, easy to operate.
Can finish transformer no-load loss, load loss, DC resistance, TTR, AC hipot, induced voltage test.
Voltage, current digital meter or direct reading pointer meter, print loss, ratio, DC resistance test results.
Voltage withstand test with sound & light alarm, timing.
Project
Measuring Range
Relative Error
Voltage
0.1~600V
±(0.2% reading +0.1% range)
Current
0.1~200A
±(0.2% reading +0.1% range)
Power
U*I
±(0.2% reading +0.1% range)
Power Factor
0.1~0.9999
3 Digital
Power Supply
AC220V±10% 50Hz±2%
Frequently Asked Questions
Are you a manufacturer or a sales company?
We are an industrial and trade enterprise with our own factory. We have over fifteen years of production experience since 2004, featuring reliable production lines and R&D centers.
Is customization available and what is the delivery time?
Yes, products can be customized. Generally, production takes about 7 working days after the order is placed, provided no unforeseen circumstances occur.
How is the product quality guaranteed?
To ensure high quality, we use a large quantity of imported components. Every product undergoes three rounds of quality inspection and is packed in non-fumigation wooden boxes for export.
What kind of after-sales service do you provide?
We offer a one-year warranty and free consulting services. Support is provided via email, video calls, or on-site technical visits to resolve issues promptly.
In which regions do you have cooperative experience?
Our products are exported globally to countries including the USA, Brazil, Russia, India, and more. We have cooperative distributors in several regions to provide local service.
What tests can this bench perform?
It can complete transformer no-load loss, load loss, DC resistance, TTR, AC hipot, and induced voltage tests.
