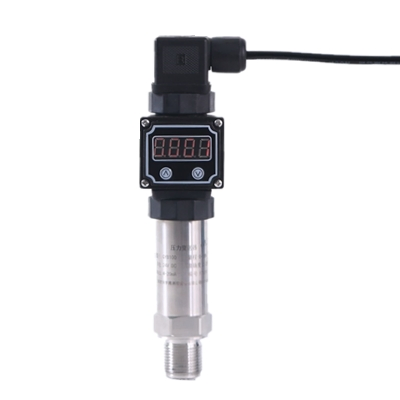

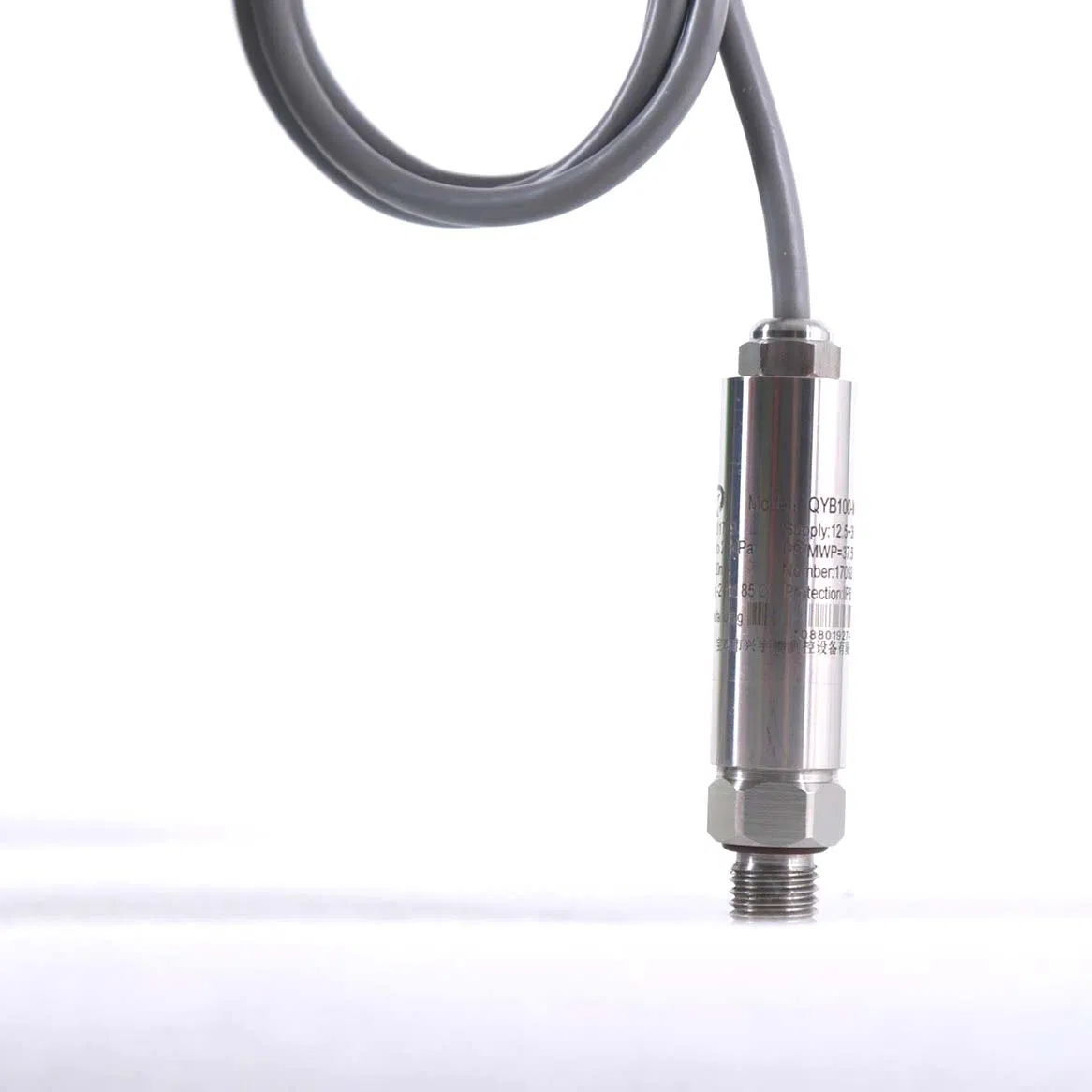

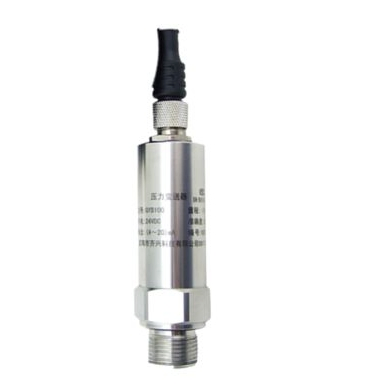

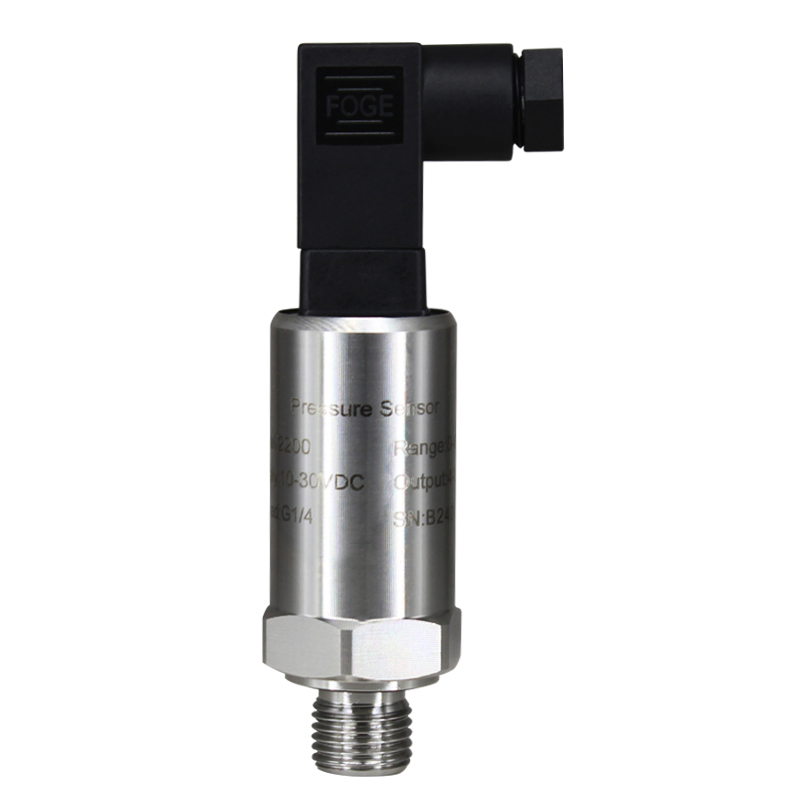

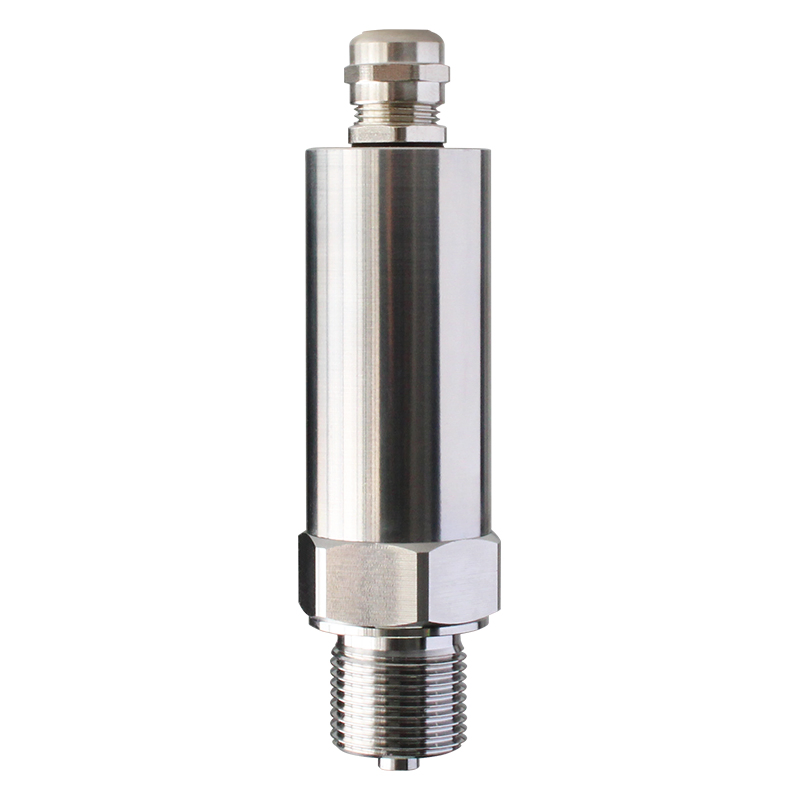

Water Cooling System High Stability Reliability 4 20mA 5V 10V General Pressure Transmitter
QYB100 pressure transmitter is a highly popular industrial solution, designed for maximum stability and reliability. Supporting remote transmission, it features robust anti-interference capabilities and high shock resistance. Constructed with a high-quality silicon piezoresistive sensor protected by a durable stainless steel housing, the QYB100 is precision-engineered for various industrial pressure measurements. Its compact and rugged design makes it ideal for process control systems, hydraulic valves, refrigeration, HVAC controls, and level measurement equipment.
| Parameter | Value / Details | Units / Notes |
|---|---|---|
| Pressure Range | -1...0...1000 | Bar (1bar = 14.5Psi) |
| Overpressure | 1.5xFS | Bar |
| Environmental | ||
| Operating Temp | -30 to +80 | °C (-4 °F to 185 °F) |
| Vibration / Shock | 10g / 100g | 20-2000Hz / 10ms |
| Electrical @ 25°C | ||
| Output Signal | 4...20mA, 0...5V, 0...10V, 0.5-4.5V | Selectable |
| Power Supply | 12-36Vdc / 5Vdc | Depending on output |
| Physical Specifications | ||
| Housing Material | 304 or 316 Stainless Steel | Media Compatible |
| Protection Class | IP65 (Standard) / IP68 | Cable outlet option |
| Accuracy | 0.1 / 0.25 / 0.5 | %FSO |
