📋 Basic Information
| Model NO. | Sash Press Brake Punch | Certification | RoHS, CE, ISO |
| Metal Color | Black Metal | Condition | New |
| Shaping Mode | Forging Mould | HRC | 46-52 |
| Raw Material | 42CrMo | Production Capacity | 20000 pieces/Year |
📍 Product Description

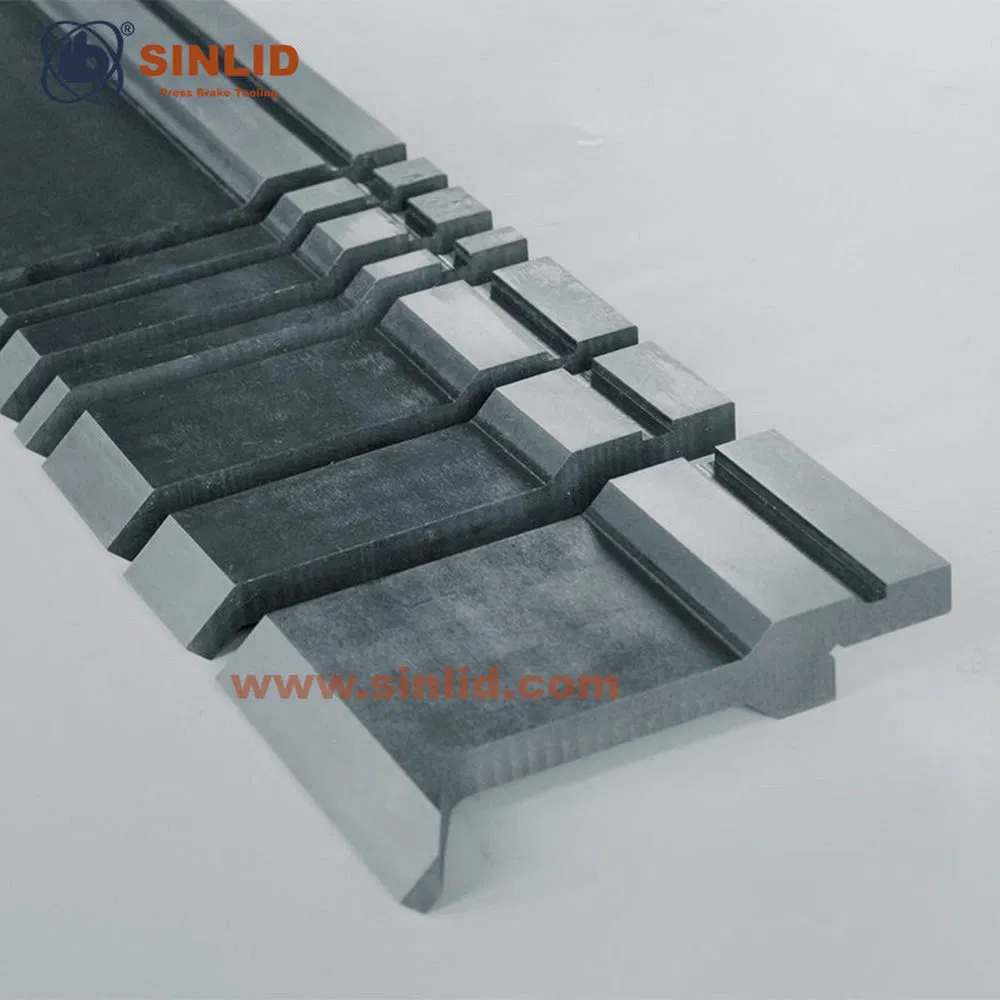

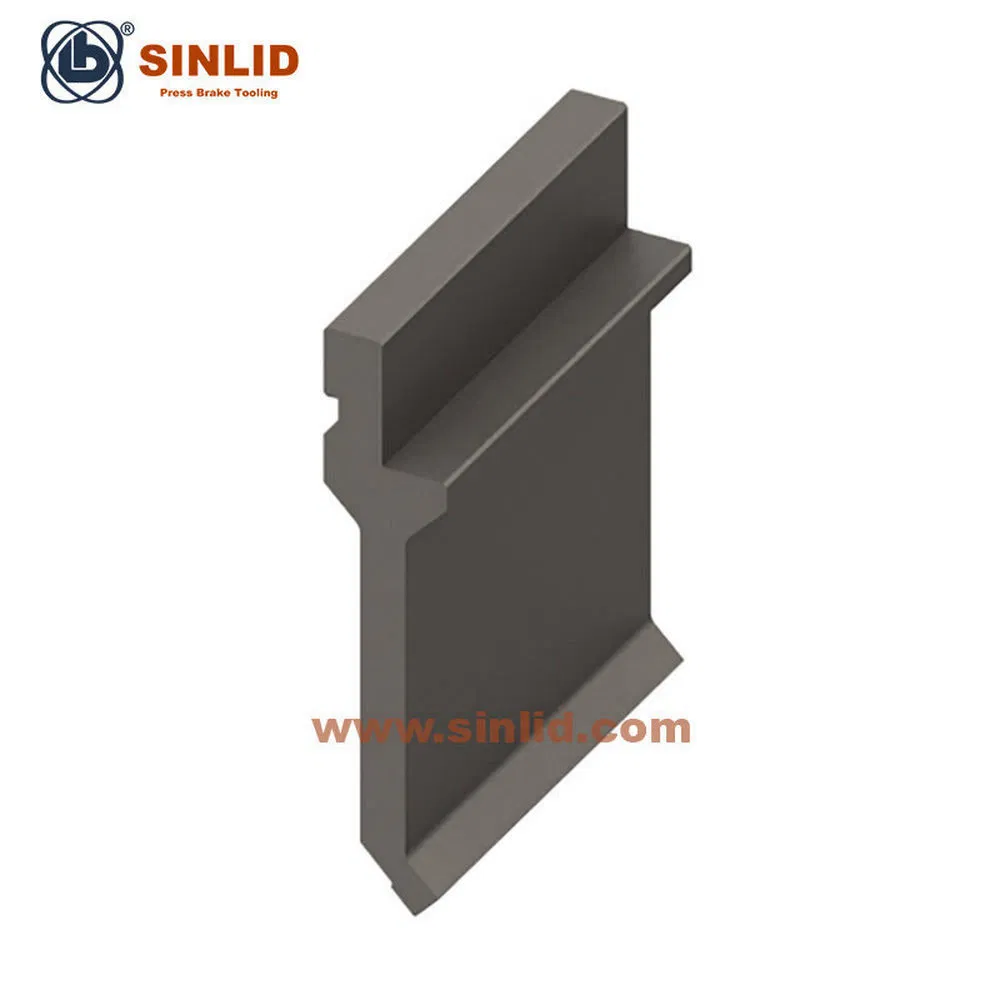

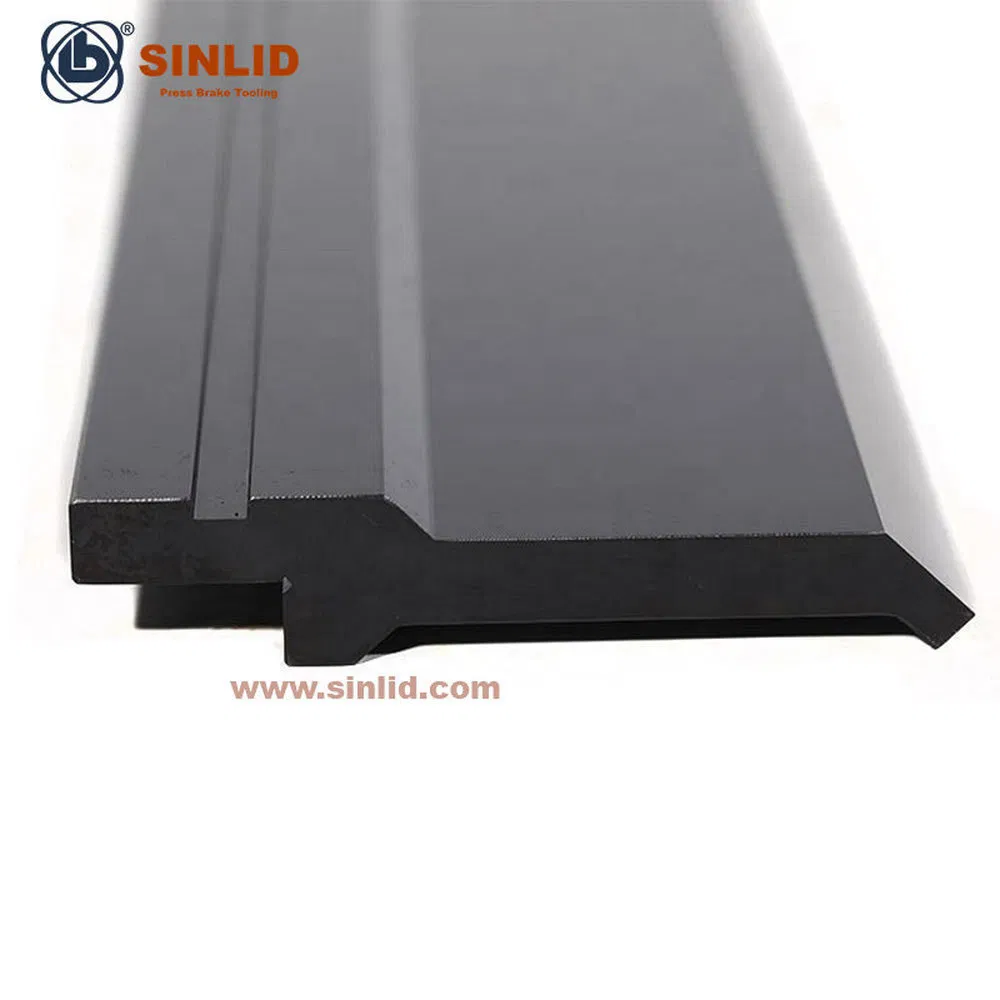

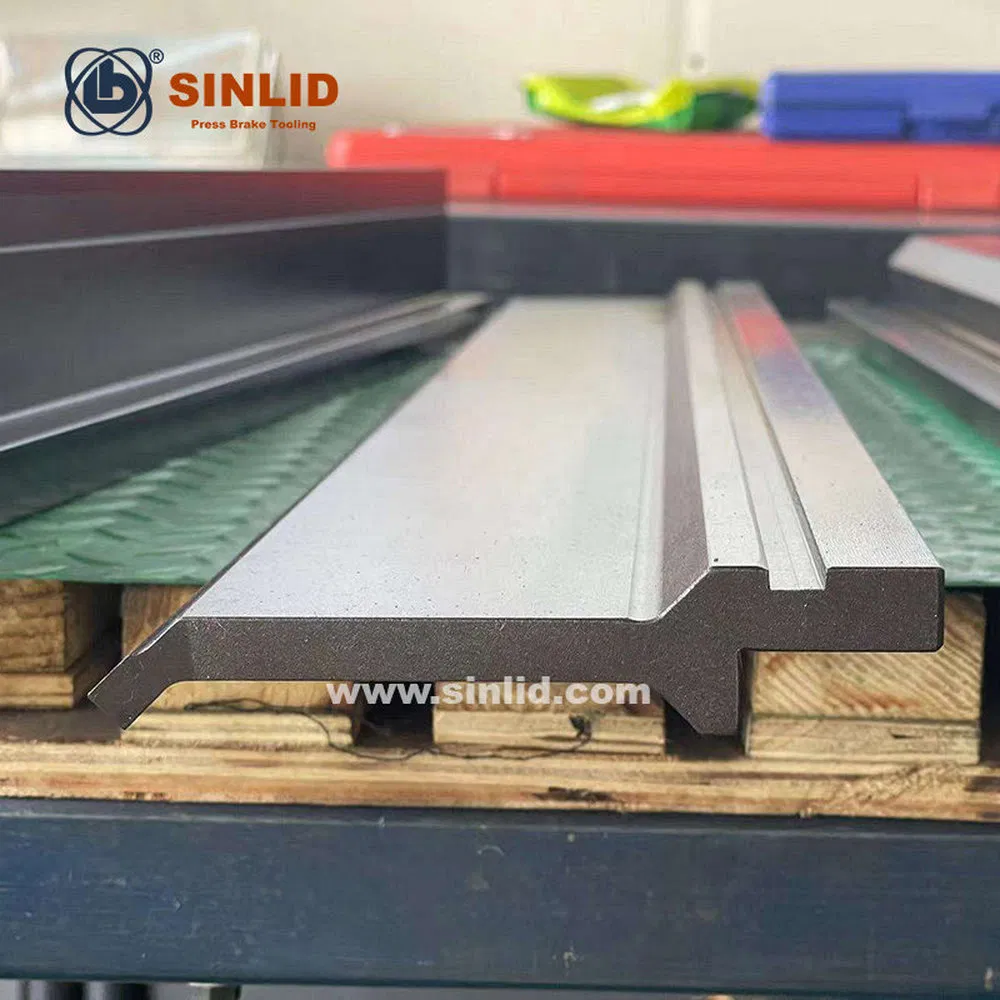

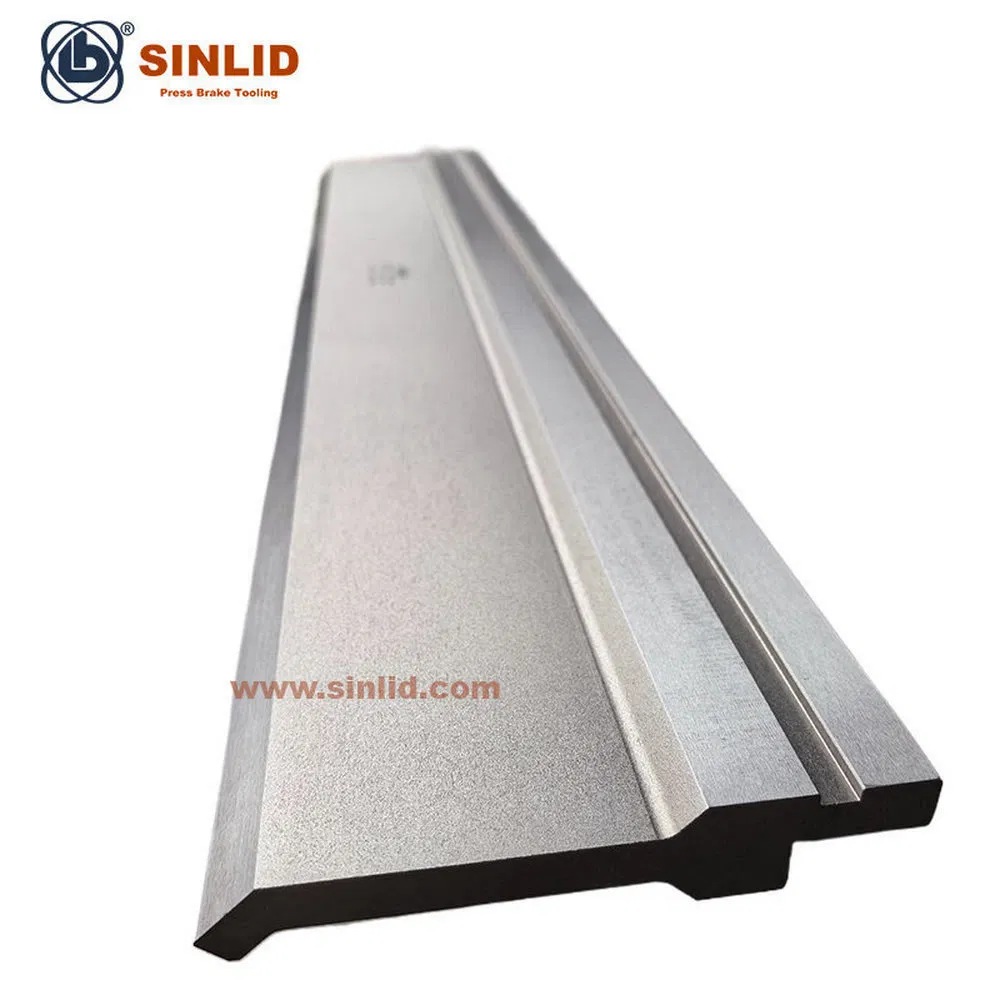

The Sash Press Brake Punch is a high-performance upper die engineered for precision bending of aluminum profiles, light sheet metals, and window frame materials.
Manufactured from premium alloy steel such as 42CrMo with advanced CNC machining and heat treatment, this durable punch delivers exceptional wear resistance, consistent angles, and long service life.
Featuring a specially designed tip to prevent surface marking and universal compatibility with European and American press brake systems, it's the ideal choice for manufacturers demanding reliable performance and clean bending results.
⚙ Technical Specification
| Technical Parameters |
|---|
| Product Name | Sash Press Brake Punch |
| Keywords | Press Brake Punch |
| Surface Treatment | Smooth |
| Hardness Range | 46-52 HRC |
| Material | High Quality Tool Steel (42CrMo) |
| OEM & ODM Custom | Acceptable |
⭐ Key Advantages

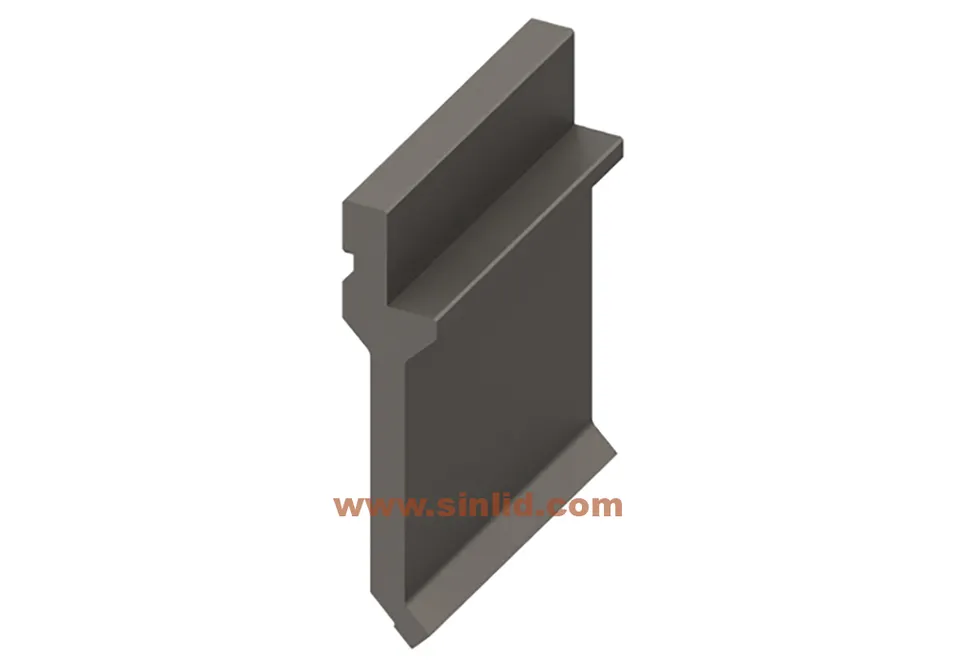

High-Precision CNC Machining
Ensures stable bending performance with tight tolerances for repeatable results.

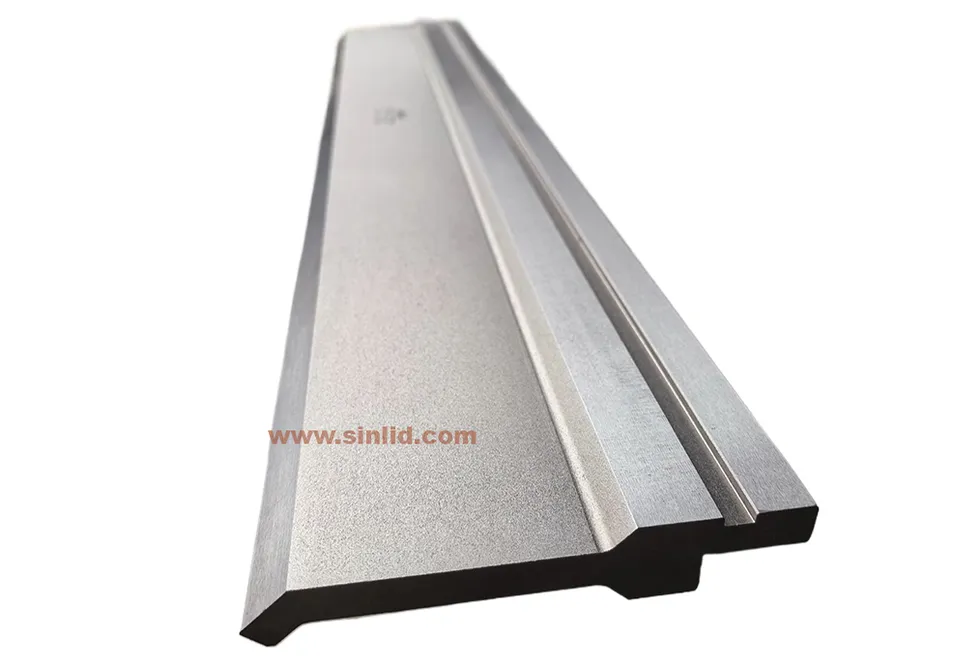

Superior Wear Resistance
Treated 42CrMo alloy steel provides exceptional durability and extended service life.

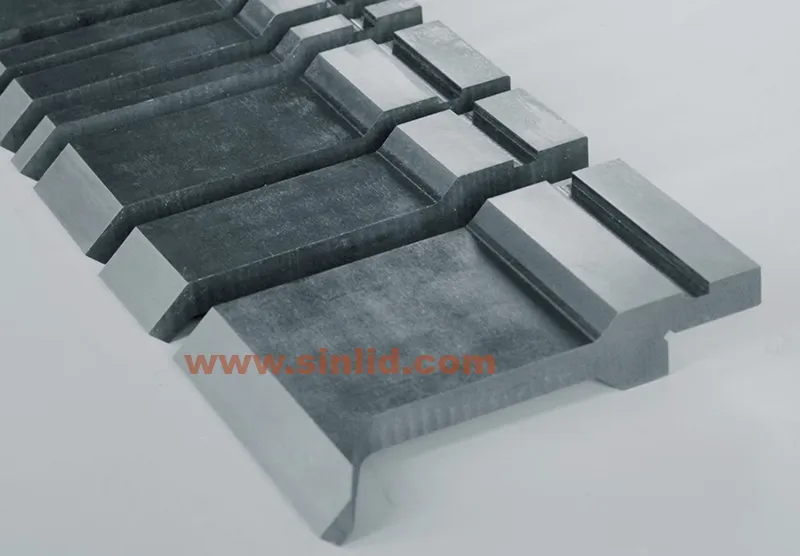

Anti-Marking Tip Design
Specially engineered to prevent scratches on delicate aluminum profiles.

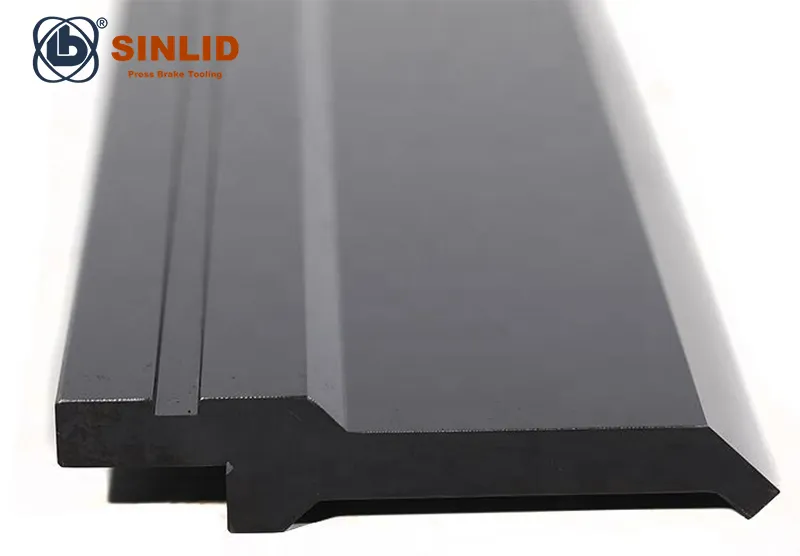

Universal Compatibility
Fits most European and American press brake systems with quick tool changes.
🏭 Core Applications
Aluminum Doors & Windows
Designed for precision bending of frame profiles with clean, professional results.
Curtain Wall Systems
Essential for architectural aluminum components with high accuracy requirements.
Decorative Profiles
Perfect for furniture frames where surface quality and finish are paramount.
🏢 Manufacturing Excellence
With advanced CNC machining centers, precision grinding, and full-body hardening treatments, we deliver tooling with a service life 30-50% longer than traditional tools. Our machining accuracy reaches up to ±0.02 mm.
❓ Frequently Asked Questions
Q1. What materials are used for the press brake punches?
We primarily use high-quality tool steels like 42CrMo. Tools can be hardened to 47-50 HRC (full-body) or 56-60 HRC (induction hardening) based on requirements.
Q2. Can you produce custom tools based on drawings?
Yes, we specialize in producing custom tools from your drawings or samples. Our engineering team also provides design optimization advice.
Q3. What is the typical lead time for an order?
Standard tools usually take 15-20 days, while custom tools require 20–30 days depending on complexity.
Q4. Are these tools compatible with my press brake machine?
Our tools are compatible with most major systems, including Amada, Trumpf, Wila, LVD, Bystronic, and Accurpress.
Q5. How do you ensure the precision of the tools?
Quality is ensured through strict CNC machining, precision grinding, CMM inspection, and final dimensional checks before shipment.
Q6. Is there a Minimum Order Quantity (MOQ)?
No, we accept orders of any size, from a single replacement piece to bulk quantities and sample orders.
